Description

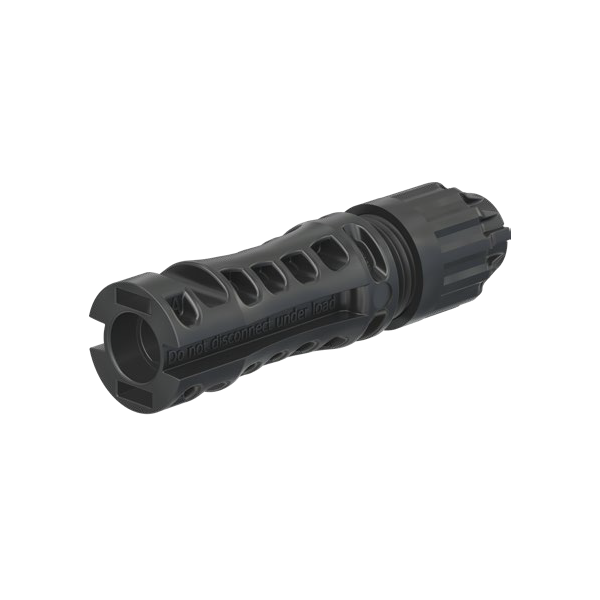

xThe Staubli PV-KBT4-EVO 2A/6I is a high-quality male cable coupler from the MC4-Evo 2 series, optimised for solar PV installations with 1500 V DC systems. Featuring robust construction and certified compatibility, it ensures a secure, low-resistance connection for high-performance energy transmission in demanding outdoor environments.
Key Features
- Male cable coupler for MC4-Evo 2 system, suitable for 4 mm² and 6 mm² cables
- Rated for 1500 V DC with excellent thermal and UV stability
- Fast, secure push-lock connection with low contact resistance
- Meets international standards including IEC 62852 and UL 6703
Specifications
xConnector Type
MC4-Evo 2, Male Cable Coupler
Conductor Cross-section
4 mm² / 6 mm²
Rated Current
Up to 45 A (depending on cable)
Rated Voltage (DC)
1500 V DC (IEC & UL)
Contact Resistance
< 0.25 mΩ
Degree of Protection
IP68 (mated), IP2X (unmated)
Temperature Range
-40°C to +85°C (IEC)
Insulation Material
High-performance plastic (PPE/PS)
Flammability Rating
UL 94-V0
Standards Compliance
IEC 62852, UL 6703, TÜV certified
