Description

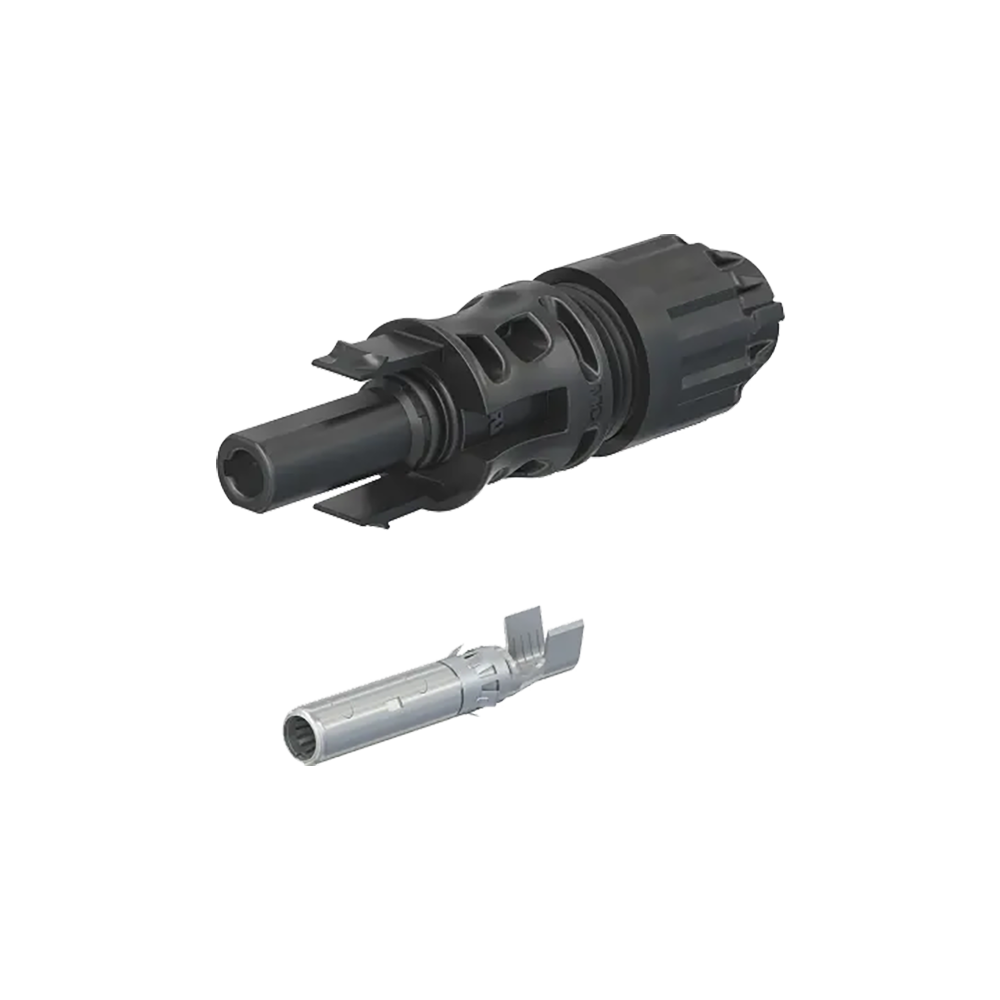

xThe Staubli PV-KBT4-EVO 2A/6I is a high-performance MC4-Evo 2 female cable coupler, engineered for safe and efficient photovoltaic connections in 1500 V DC systems. Designed for fast assembly and secure mating, this connector ensures reliable energy transfer with low contact resistance and excellent weather resistance.
Key Features
- Female cable coupler compatible with MC4-Evo 2 system
- Suitable for cable cross-sections of 4 mm² and 6 mm²
- Rated up to 1500 V DC with high mechanical and thermal durability
- Certified to IEC 62852 and UL 6703 standards
Specifications
xConnector Type
MC4-Evo 2, Female Cable Coupler
Conductor Cross-section
4 mm² / 6 mm²
Rated Current
Up to 45 A (depending on cable type)
Rated Voltage (DC)
1500 V DC (IEC & UL)
Contact Resistance
< 0.25 mΩ
Degree of Protection
IP68 (when mated), IP2X (unmated)
Temperature Range
-40°C to +85°C (IEC)
Insulation Material
PPE/PS high-performance thermoplastic
Flammability Rating
UL 94-V0
Standards Compliance
IEC 62852, UL 6703, TÜV certified
