6kW Synapse Inverter + Synapse 5K0 Battery Kit

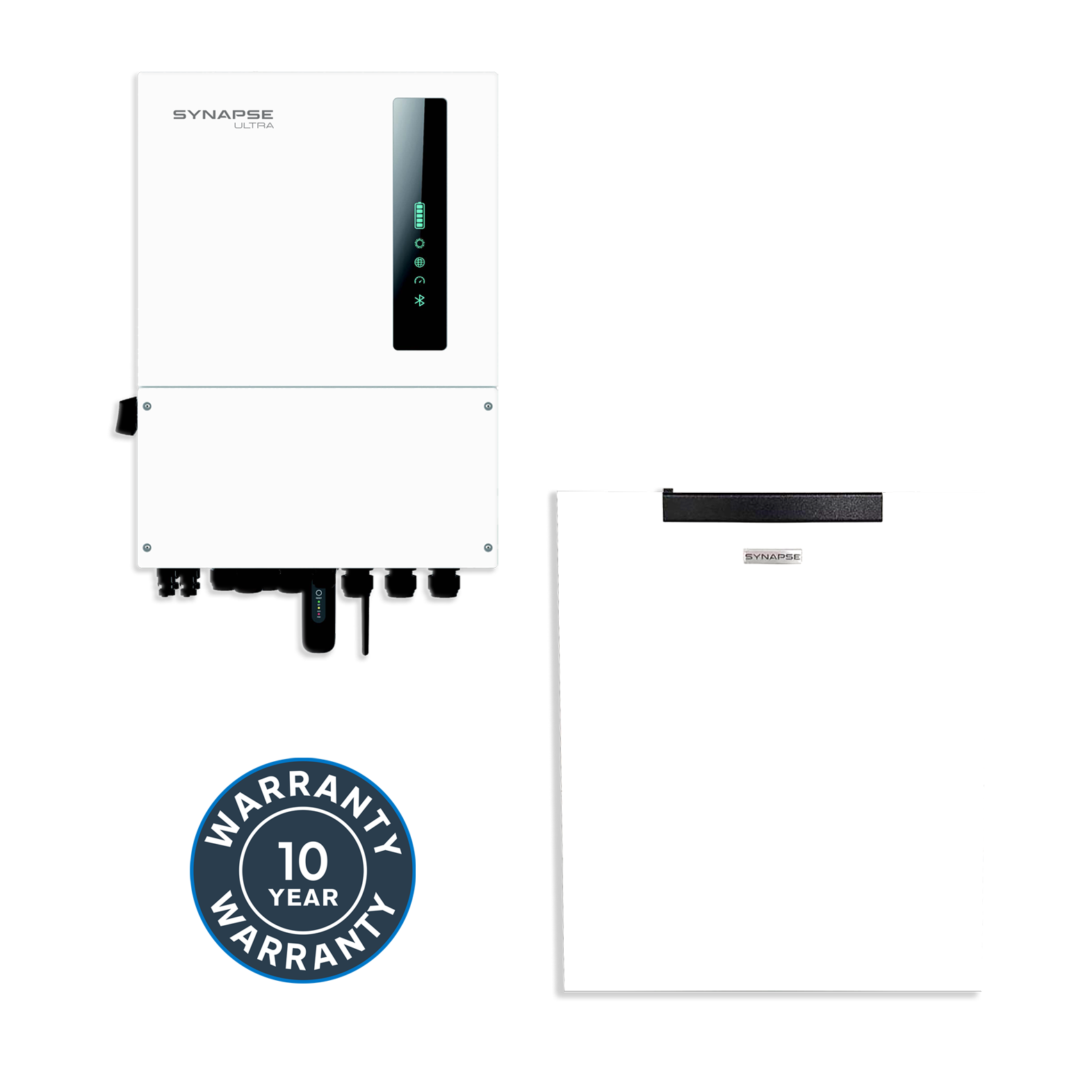

6kW Ultra Synapse Inverter & Synapse 5K0 Lithium Battery Kit This kit combines the Synapse 6kW Hybrid Inverter (30A AC output) with the Synapse Lithium Battery 5K0, delivering a fully compatible residential energy storage solution. Designed for efficiency, safety, and reliability, this pairing enables seamless communication between inverter and battery,...
Vendor: Rubicon
SKU: RUB-6KW-SYN5K
Availability: In stock
Product type: Synapse Inverter + Battery Energy Kit
Please hurry! Only 2 left in stock
Description
Description
x

6kW Ultra Synapse Inverter & Synapse 5K0 Lithium Battery Kit

This kit combines the Synapse 6kW Hybrid Inverter (30A AC output) with the Synapse Lithium Battery 5K0, delivering a fully compatible residential energy storage solution. Designed for efficiency, safety, and reliability, this pairing enables seamless communication between inverter and battery, ensuring optimised self-consumption, peak shaving, and reliable backup power – all supported by a 10-year warranty on both products for long-term peace of mind.

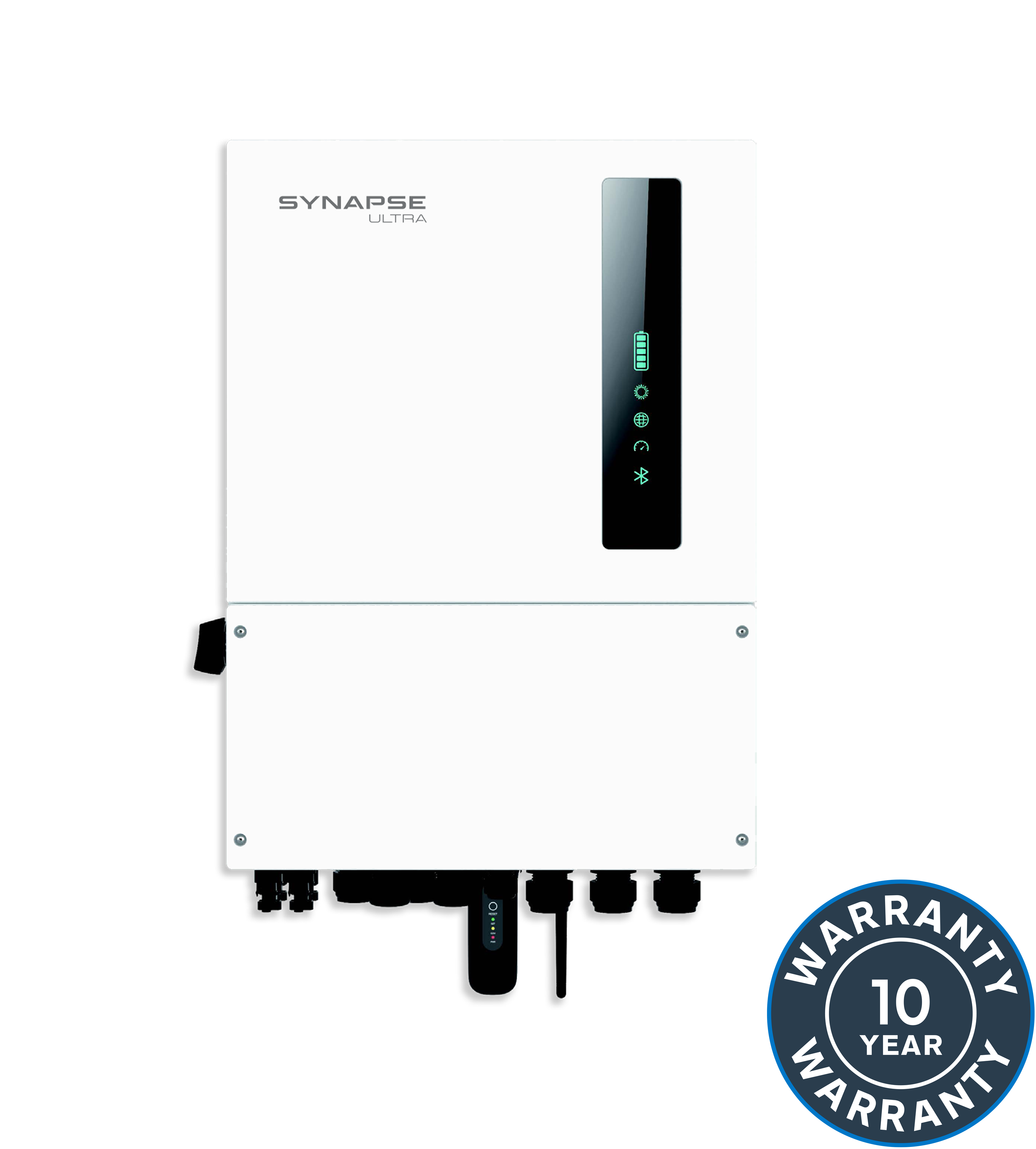

Synapse Ultra 6kW Inverter Key Features:

  • 6kW nominal output power
  • 30A AC output capability
  • Low-voltage battery compatibility
  • Integrated backup functionality for uninterrupted power
  • Intelligent BMS communication (CAN/RS485)
  • Remote monitoring via WiFi or LAN connection
  • Compact and wall-mountable design

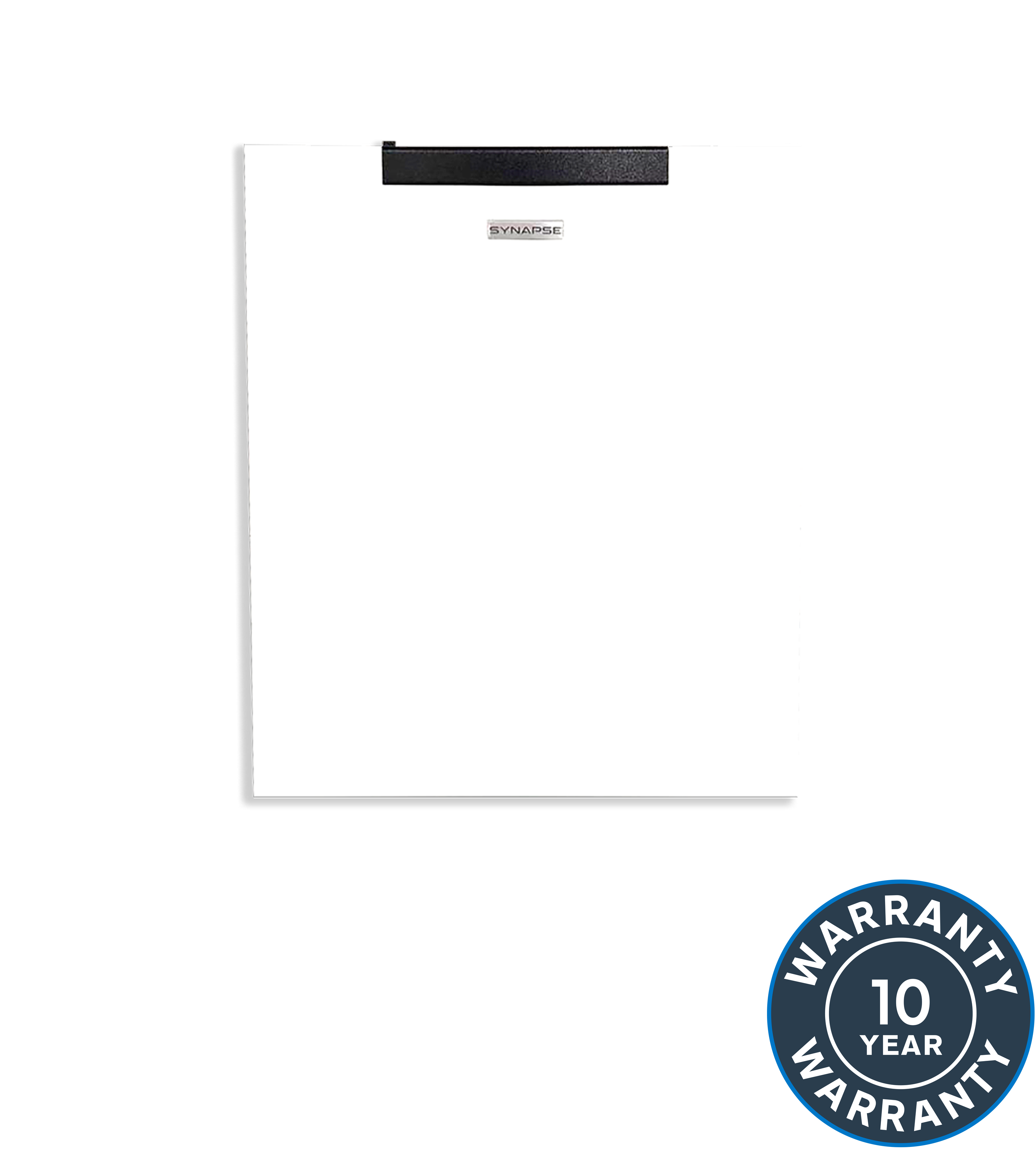

Synapse 5K0 Key Battery Features:

  • 5.12kWh usable energy storage
  • High cycle life (6000+ cycles @ 90% DoD)
  • Modular and scalable design
  • Built-in BMS for real-time battery protection
  • Stable chemistry with low thermal risk
  • Easy wall or floor-mounted installation
  • 10-year product warranty

System Compatibility & Integration

The Synapse Hybrid Inverter and 5K0 battery communicate directly via supported CAN protocol, ensuring intelligent charge/discharge control and safe, efficient operation. This compact system is ideal for residential hybrid installations, load shifting, and dependable backup power in grid-connected or off-grid scenarios.

Specifications
Specifications
x

Synapse Ultra 6kW Hybrid Inverter




Recommended Max. PV Power
9.6 kW
Max. Input Voltage (DC)
600 V
Battery Voltage Range
40–60 V
Max. Charge / Discharge Power (Battery)
6 kW
Rated Output Power (AC)
6 kW
Max. Apparent Output Power (AC)
6.6 kVA
Max. Efficiency
>97.5%
Ingress Protection (IP)
IP66
Operating Ambient Temperature Range
-40 ~ +60 °C
Dimensions (W × H × D)
406 × 560 × 205 mm


Synapse 5kW Lithium Battery




Battery Power
5kW
Battery Rating
1C
Cell Type
LiFePO₄
Overall Capacity
4.8kWh
Nominal Voltage
51.2Vdc
Voltage Range
46.5 - 58.4Vdc
Max Charge/Discharge Current
-100A / +100A (Peak 130A)
Depth of Discharge (DoD)
Up to 95%
Cycle Life
>6000 Cycles @ 90% DoD (25°C)
Max Batteries in Parallel
15 (Max 5 Stacked)
Cluster Net Capacity
66 - 462kWh (With LV HUB)
BMS Voltage Protection
45.5 - 58.4Vdc
BMS Temperature Range
Discharge -20°C to +55°C, Charge 0°C to +55°C
Ingress Protection
IP30 (Indoor Use Only)
Installation Requirements
Indoor, Ventilated, Low-Voltage Inverters Only (40-58.54Vdc), Away from Flammable Gases/Liquids
Dimensions
580 x 490 x 155mm
Weight
46kg
Communication Interfaces
RS485, CAN, RS232, Wi-Fi & Bluetooth (Via External Device)
Compliance Standards
EN IEC 61000-6-1: 2019, EN IEC 61000-6-2: 2019, EN IEC 61000-6-3: 2021, EN IEC 61000-6-4: 2019, IEC 62619 (CB), IEC 62368, RoHS Compliant
Safety Classification
Dangerous Goods DG9, Category 3480 | UN 38.3 - Lithium-Ion Battery
