Description

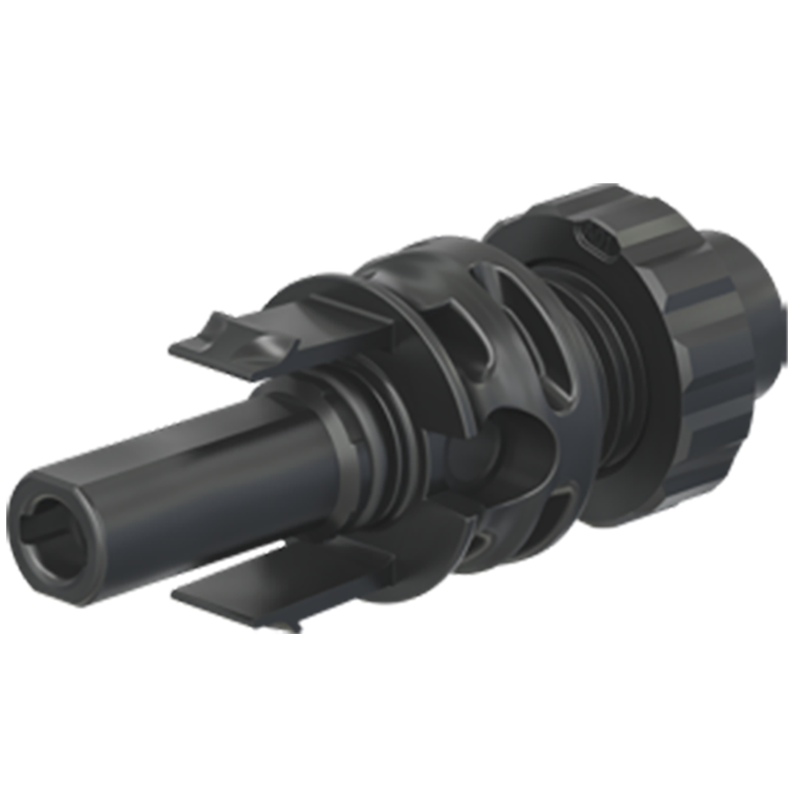

xThe Staubli PV-ADB4-EVO 2A/6 EVO 2 is a female panel receptacle designed for high-performance photovoltaic systems. Compatible with MC4-Evo 2 standards, it supports cable sizes from 4 to 6 mm², providing secure and durable connections for solar panel installations. Built for reliability and ease of use in demanding environments.
Key Features
- Female panel receptacle compatible with MC4-Evo 2 standard
- Supports cable cross-section from 4 to 6 mm²
- High resistance to UV radiation and weather conditions
- Tool-free assembly for fast and secure installation
Specifications
xType:
Female Panel Receptacle
Connector System:
Ø 4 mm
Ø Range of Cable Gland:
4.7 - 6.4 mm
Conductor Cross Section:
4 and 6 mm²
Rated Voltage:
1500 V DC (TÜV, UL, JET)
Rated Current:
- 32 A (2.5 mm² / 14 AWG)
- 42 A (4.0 mm² / 12 AWG)
- 47 A (6.0 mm² / 10 AWG)
Rated Impulse Voltage:
16 kV (1500 V)
Ambient Temperature Range:
-40°C to +85°C (TÜV / UL)
Upper Limiting Temperature:
115°C (TÜV)
Degree of Protection, Rated:
IP65 / IP68 (1h / 1m)
