Description

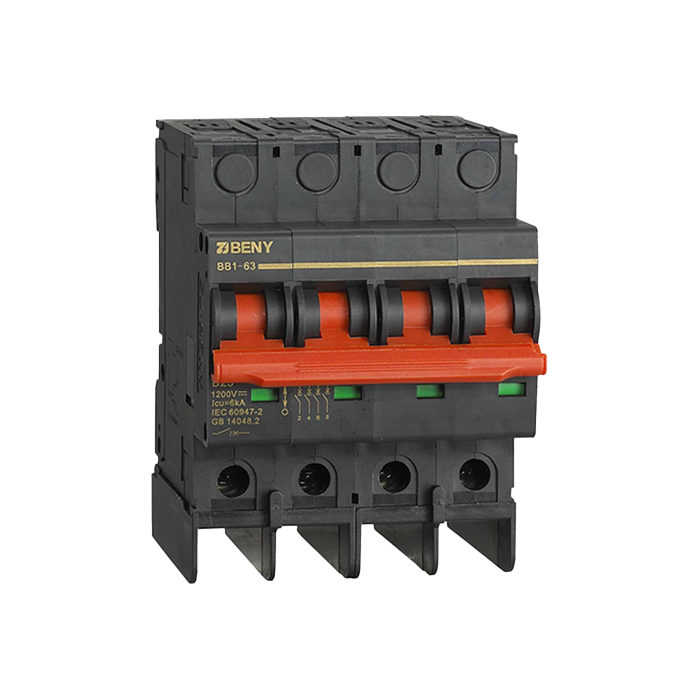

xThe Zjbeny BB1‑63 4‑Pole DIN‑Mount DC Circuit Breaker provides high-performance overcurrent and disconnection protection for photovoltaic and battery energy systems. Rated at 32 A and up to 1200 V DC, it’s equipped with arc‑flash shielding and a non-polarised switching mechanism suited for positive and negative conductor isolation. Its DIN‑rail mounting design ensures compact and efficient panel integration, making it ideal for solar combiner boxes, BESS, and DC power chains.
Key Features
- Rated for 1200 V DC and 32 A with 6 kA breaking capacity
- Loose arc chamber and full arc-flash barrier for superior safety
- Non-polarised, polarity-agnostic switching simplifies DC wiring
- Certified to IEC/EN 60947‑2 and AS/NZS 60947.3:2018 (DC‑PV2)
The product conforms to the following compliance standards:
Specifications
xType
DC Circuit Breaker
Mounting Style
DIN Rail Mount
Number of Poles
4-Pole
Voltage Rating
1200V DC
Current Rating
32A
