Description

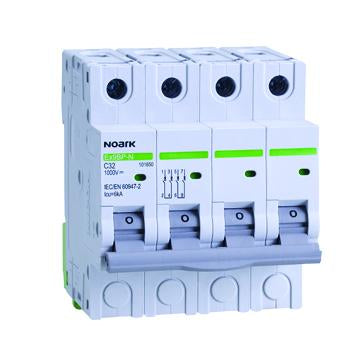

xThe Noark Ex9BP-JX(-) 4-pole mini circuit breaker is designed to protect DC circuits in photovoltaic and industrial applications up to 1000 VDC. With a rated current of 32 A and high breaking capacity, it offers safe and efficient circuit protection in demanding environments.
Key Features
- 4-pole configuration for high-voltage DC applications
- Rated for up to 1000 VDC and 32 A current
- High breaking capacity ensures protection under fault conditions
- DIN rail mounting for fast and secure installation
The product conforms to the following compliance standards:
Specifications
xType
Mini Circuit Breaker
Pole Configuration
4-pole
Voltage Rating
1000VDC
Current Rating
32A
Breaking Capacity
10 kA
Trip Curve
B Curve
Operating Temperature
-25°C to +70°C
Mechanical Life
≥ 20,000 operations
Electrical Life
≥ 6,000 operations
Certifications
Compliant with IEC/EN 60947-2, CCC, CB, CE, RoHS
