Description

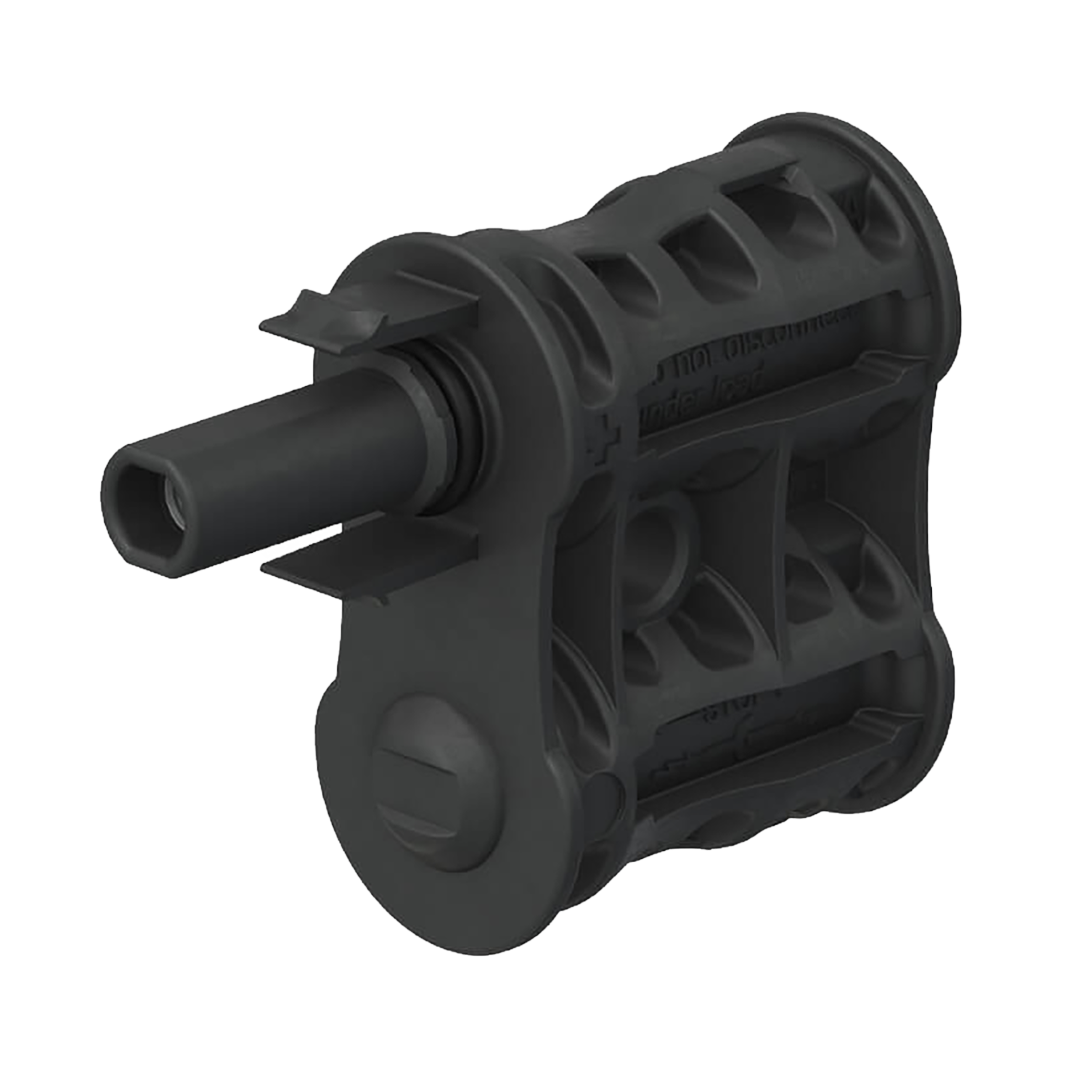

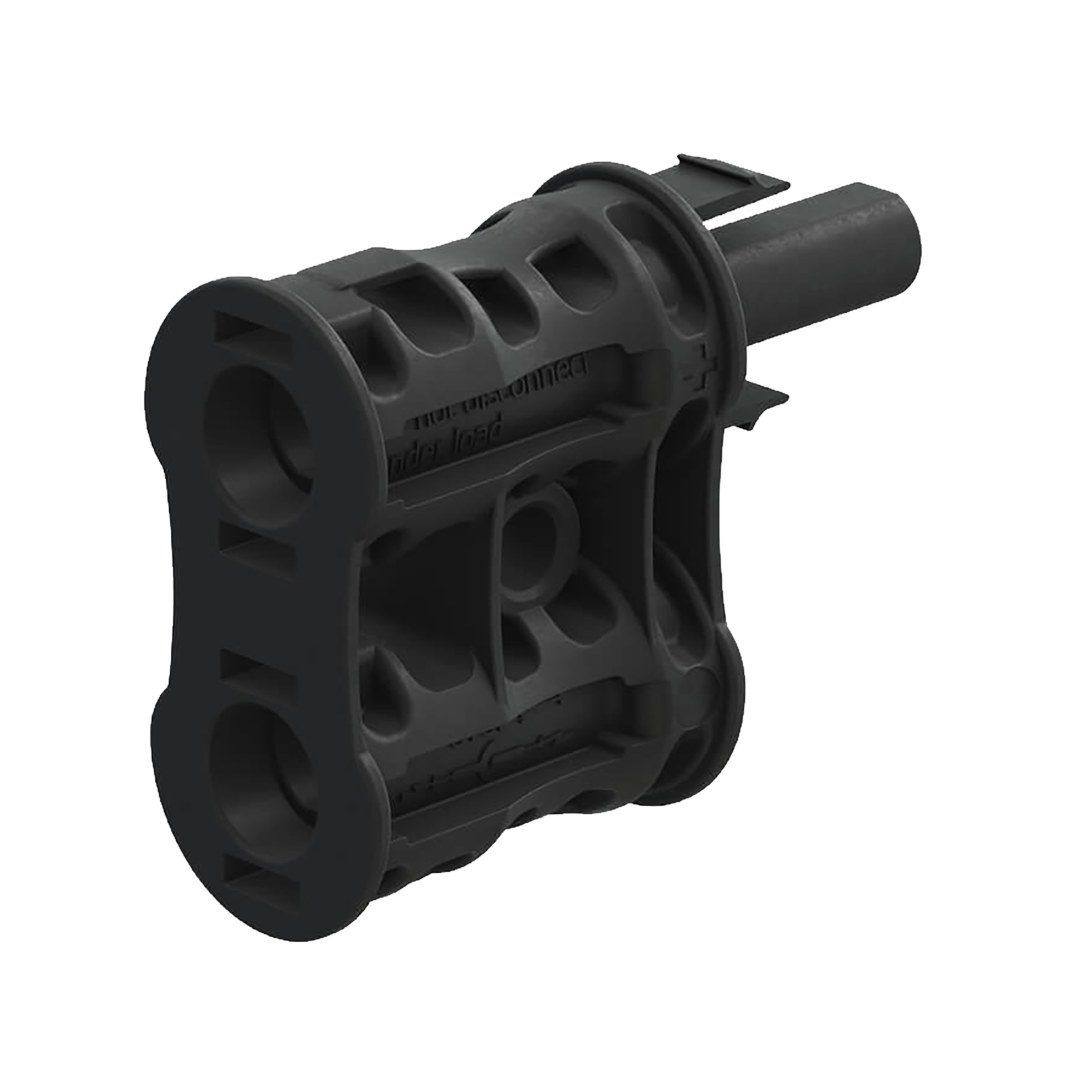

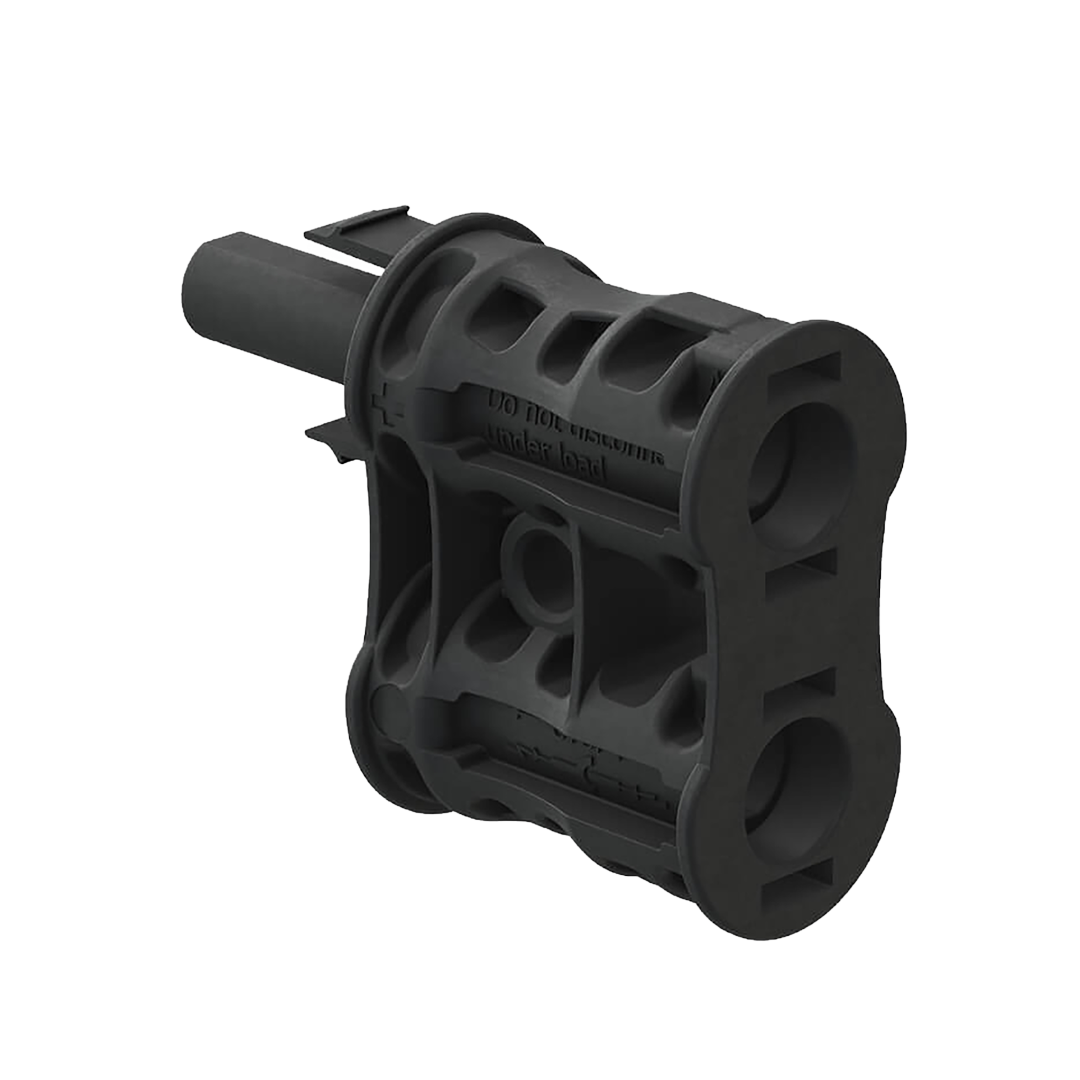

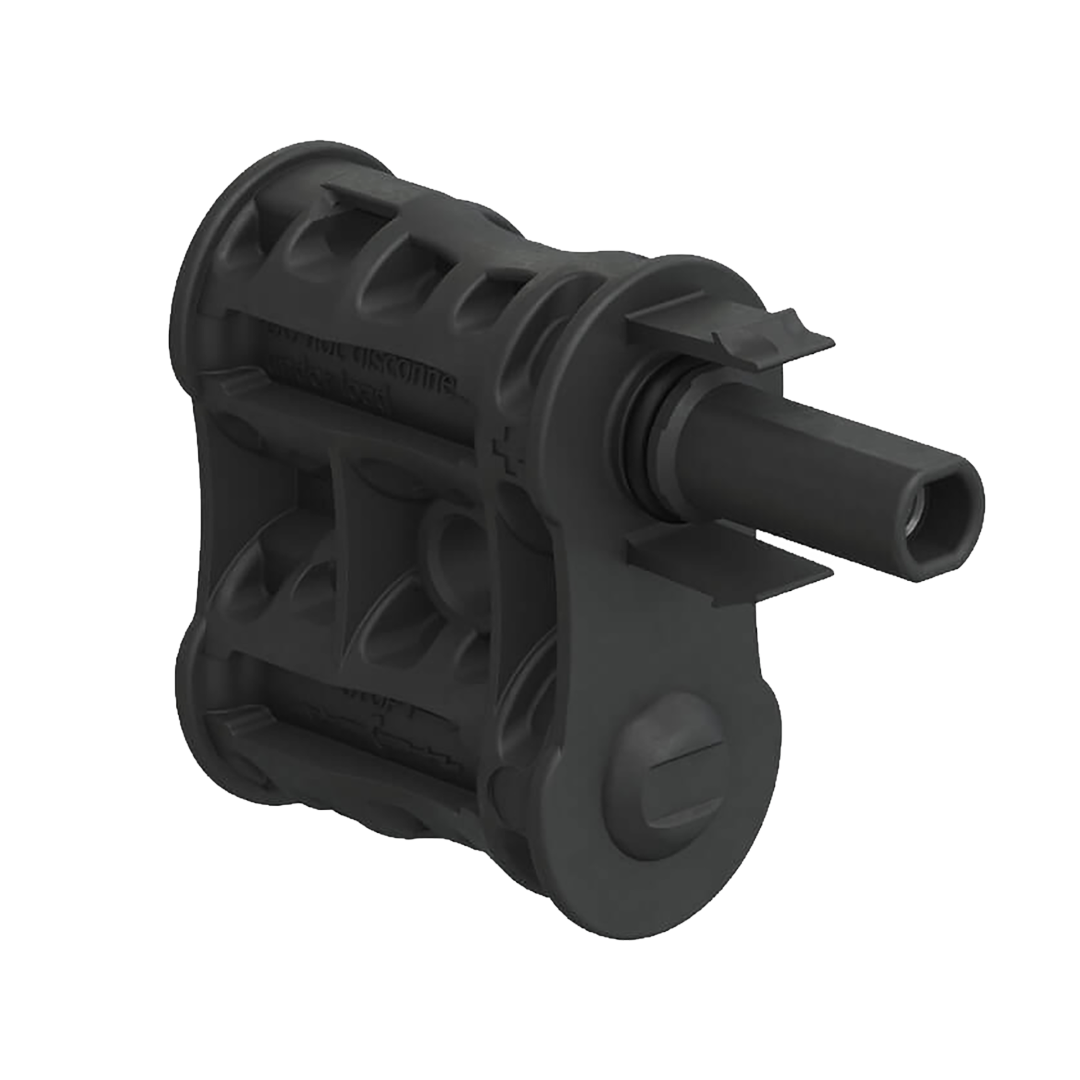

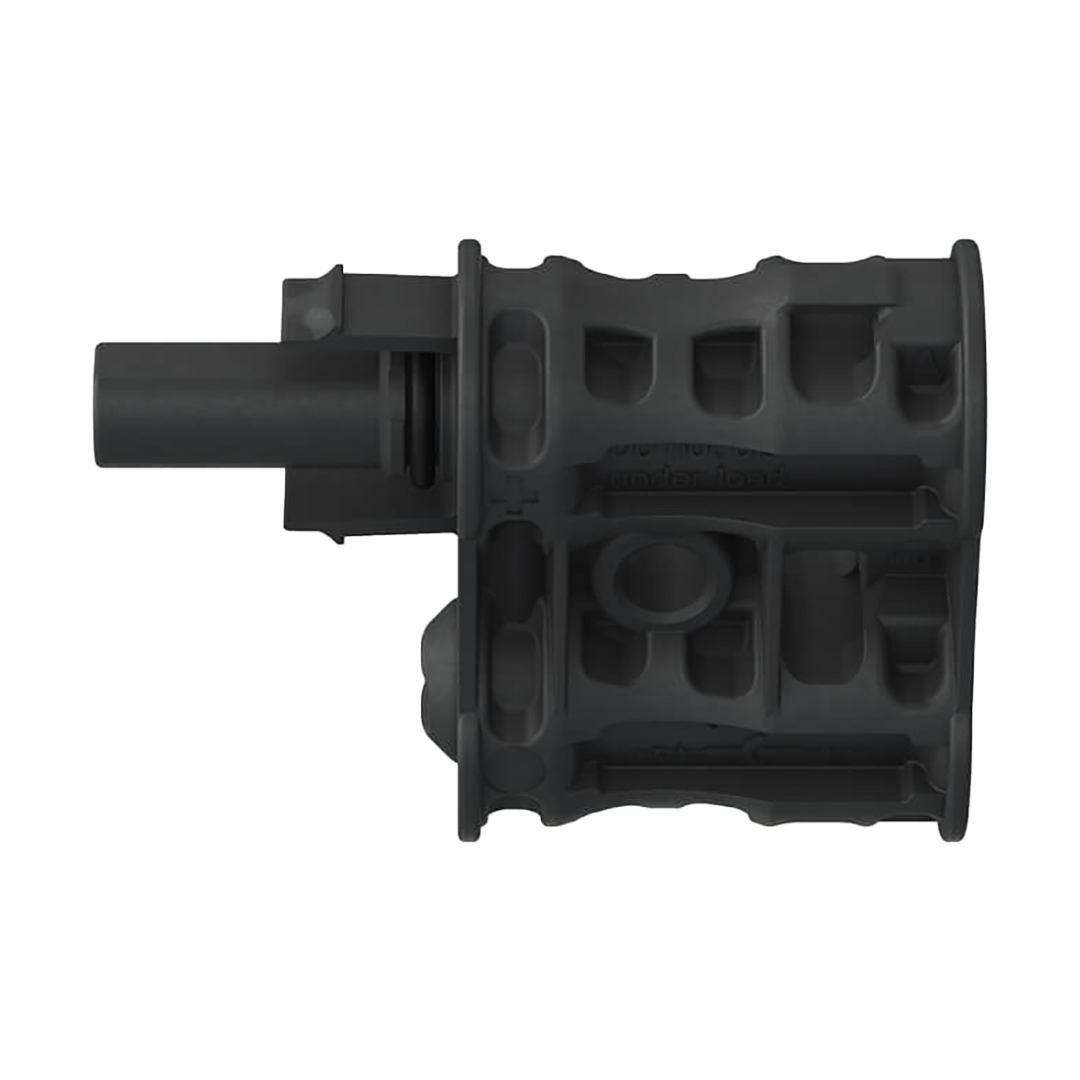

xThe Staubli PV-AZS4-EVO 2-UR is a high-quality branch plug designed for photovoltaic systems using MC4-Evo 2 connectors. It provides a reliable, weatherproof connection for parallel wiring in solar arrays, ensuring efficient power distribution and system safety.
Key Features
- Compatible with MC4-Evo 2 connector system
- Designed for parallel branch wiring in PV systems
- Weatherproof with high ingress protection rating
- Simple and secure locking mechanism for safe connections
Specifications
xConnector Type
Branch plug, MC4-Evo 2
Number of Poles
2
Cable Cross-section
2.5 to 6 mm²
Rated Current
50 A
Rated Voltage (DC)
1000 V DC
Protection Degree
IP68 (when mated)
Temperature Range
-40°C to +85°C
Material Insulation
UV-resistant thermoplastic
Flammability Rating
UL 94-V0
Standards Compliance
IEC 62852, UL 6703 certified
