Description

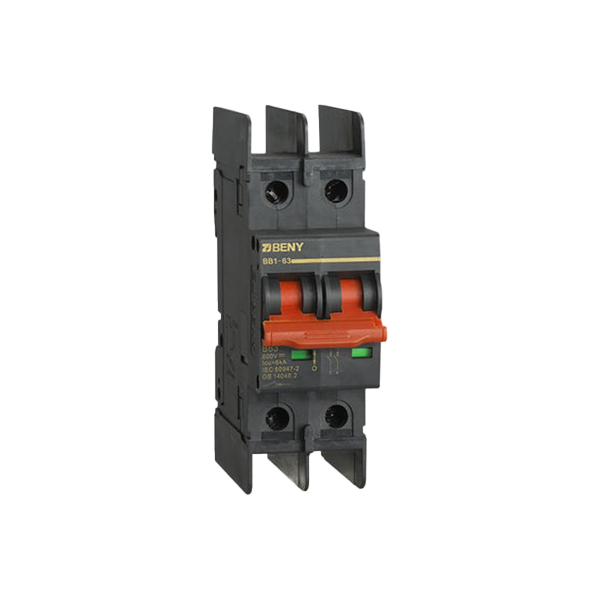

xThe Zjbeny BB1‑63 2‑Pole Miniature Circuit Breaker rated at 16 A and 600 V AC/DC provides reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. Its compact design supports easy installation on DIN rails and ensures quick disconnection of two conductors simultaneously. Suitable for residential, commercial, and light industrial applications, this breaker complies with international standards and delivers high breaking capacity with stable performance.
Key Features
- Rated voltage of 600 V AC/DC with 16 A nominal current
- Two-pole design enabling simultaneous disconnection
- High breaking capacity for effective fault clearing
- Compact DIN-rail mountable size with IP20 protection
The product conforms to the following compliance standards:
Specifications
xRated Current
16A
Number of Poles
2
Rated Voltage
500V DC
Breaking Capacity
6kA
Tripping Curve
Type B
Rated Insulation Voltage (Ui)
1200V
Mounting
DIN rail mountable
Operating Temperature Range
-30°C to +70°C
Application
Designed specifically for PV systems
Dimensions
Compact design (width: ~35.2mm for two-pole)
