Description

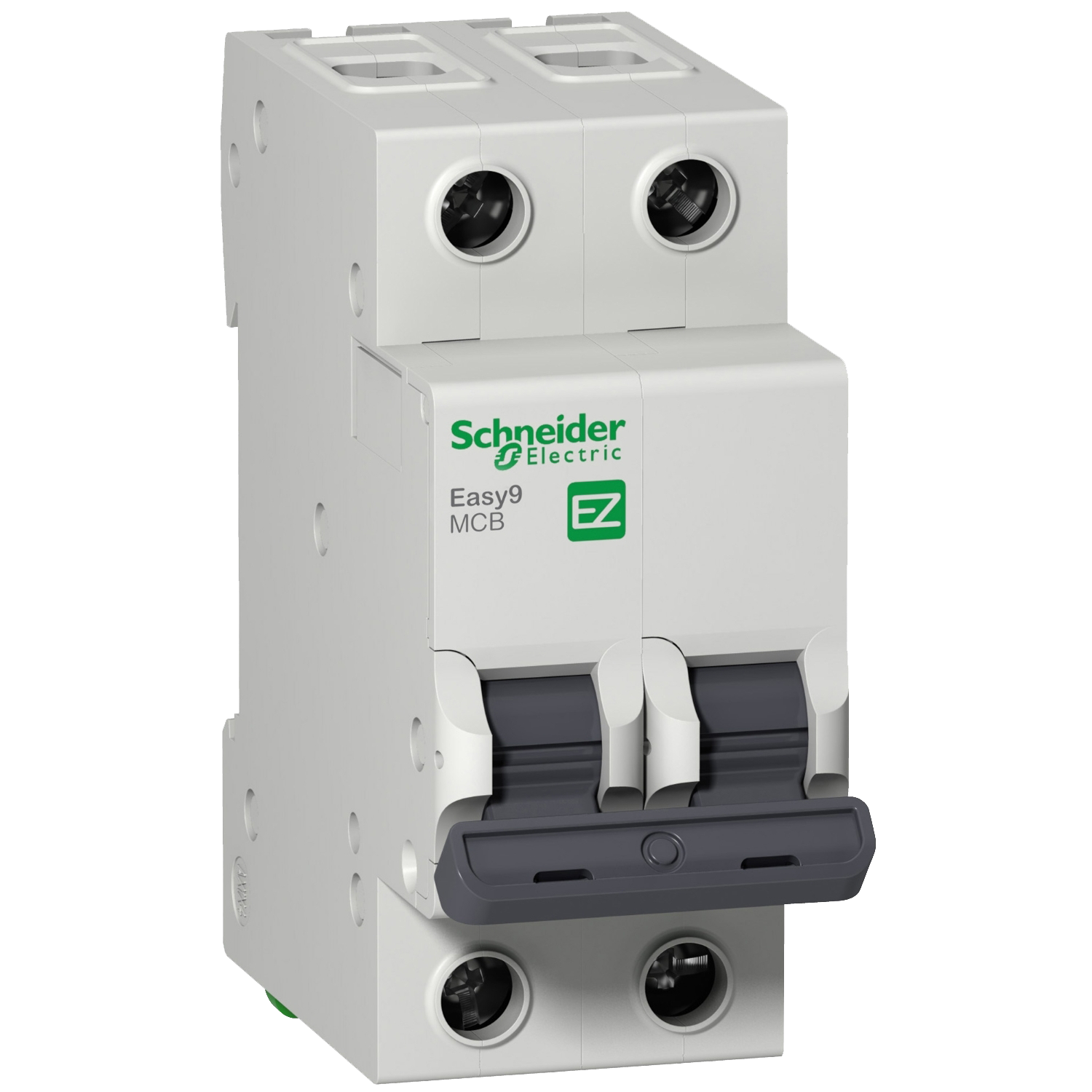

xThe Schneider Mini Circuit Breaker with C-curve trip characteristic provides reliable overload and short circuit protection for residential and commercial electrical installations. This 2-pole, 16 A breaker is designed for efficient circuit protection and easy installation on DIN rails.
Key Features
- C-curve tripping for protection against moderate inrush currents
- 2-pole design suitable for single and three-phase circuits
- Rated current of 16 A for versatile application
- Quick DIN rail mounting for simplified installation
Specifications
xProduct Name
Schneider Mini Circuit Breaker, C-curve, 2-pole, 16 A
Type
C-curve
Poles
2-pole
Rated Current
16 A
Rated Voltage
230/400 V AC
Breaking Capacity
6 kA (IEC 60898)
Mounting
DIN rail
Standards Compliance
IEC/EN 60898-1
Operating Temperature
–25 °C to +40 °C
Connection Type
Screw terminals
