Description

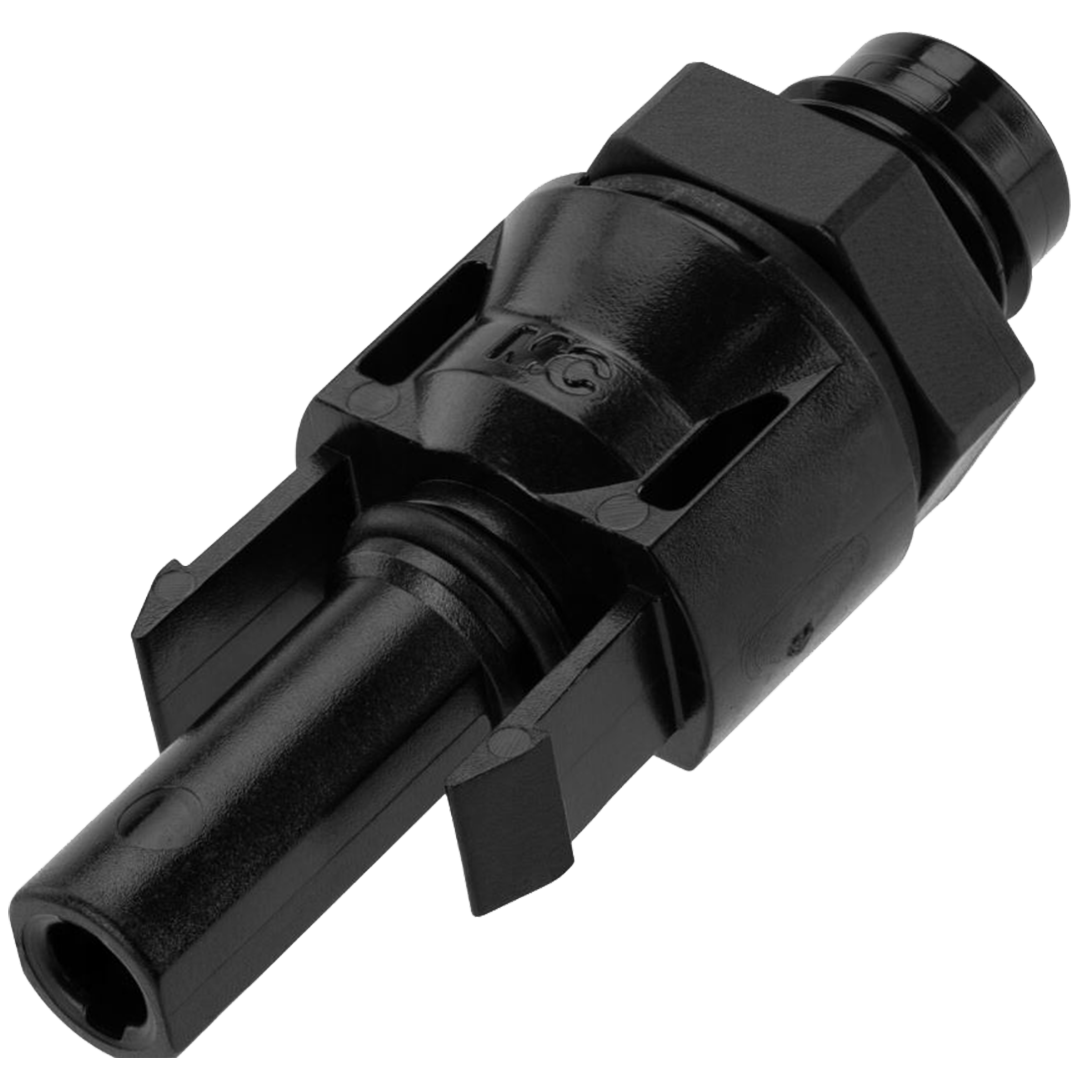

xThe Staubli PV-ADBP4-S2/6 is a female panel receptacle designed for secure and reliable connections in photovoltaic systems. Compatible with 6mm² cables, it ensures optimal conductivity and durability in harsh outdoor environments. This connector is engineered to meet industry standards for safety and performance in solar power installations.
Key Features
- Compatible with 6mm² PV cables
- Female panel receptacle for secure connection
- High resistance to environmental factors including UV and moisture
- Easy installation and maintenance
Specifications
xConnector Type
Female panel receptacle
Cable Cross-section
6 mm²
Rated Voltage (DC)
1500 V DC (IEC/UL)
Rated Current
Up to 35 A
Temperature Range
-40°C to +85°C
Degree of Protection
IP68 (mated)
Insulation Material
PC/PA, UV resistant
Flammability Class
UL 94-V0
Contact Material
Copper alloy, tin-plated
Standards Compliance
IEC 62852, UL 6703, CSA certified
