Description

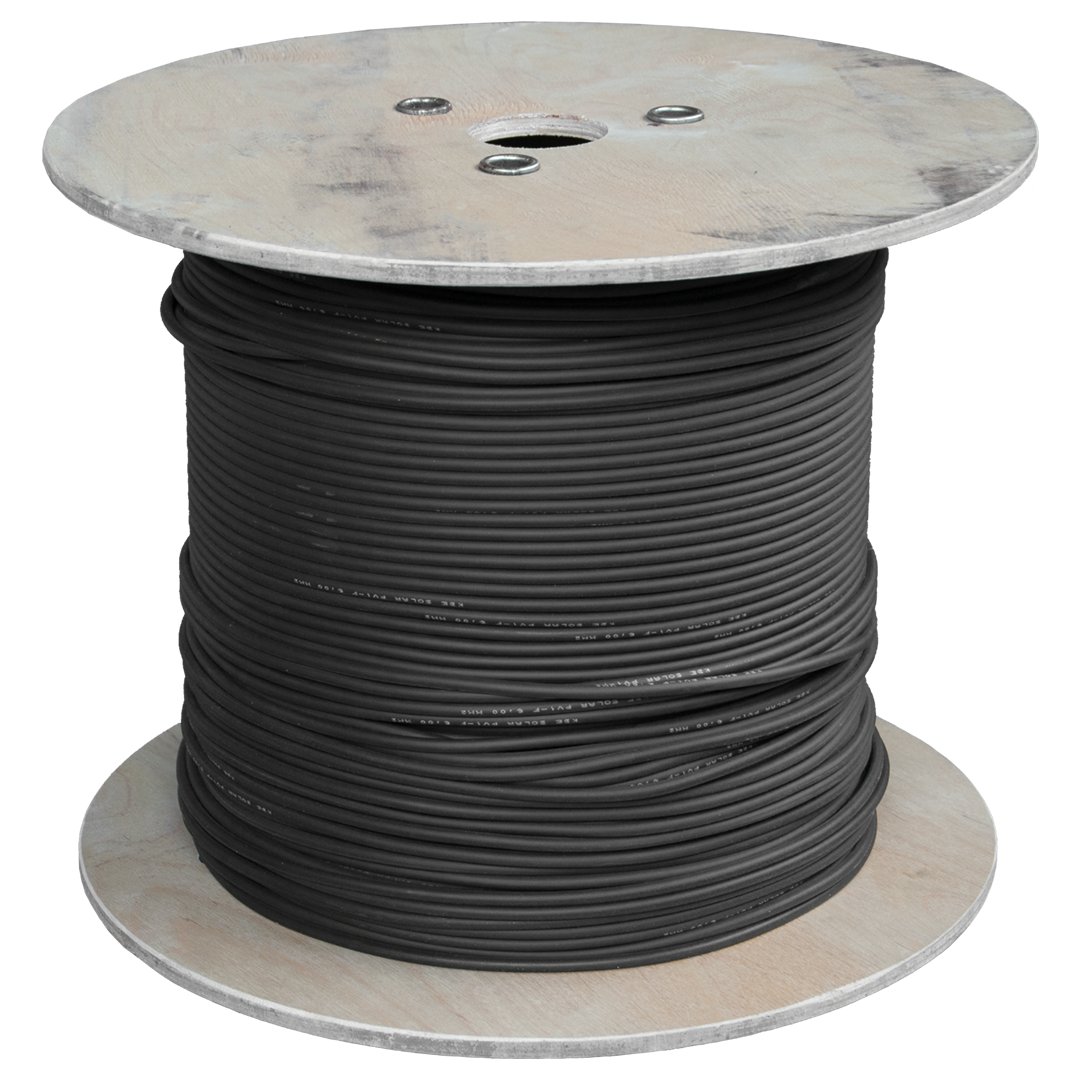

xKBE Solar DB cable, 16mm², is a high-quality photovoltaic cable designed for long-lasting outdoor use in solar power systems. Manufactured to EN50618 standards, this single-core cable offers robust performance, halogen-free safety, and exceptional UV and weather resistance, making it ideal for DC connections between PV panels and inverters.
Key Features
- Triple-certified to EN50618 for photovoltaic applications
- Halogen-free and flame-retardant for improved safety
- UV-, ozone-, and weather-resistant for outdoor use
- Electron beam cross-linked insulation and sheathing
Specifications
xCable Standard
EN50618
Conductor Cross-Section
16 mm²
Conductor Material
Copper (Cu)
Insulation Material
Cross-linked Polyethylene (XLPE) or equivalent
Sheath Material
UV-resistant and weather-resistant compounds
Voltage Rating
1.5 kV DC (1500 V DC)
Temperature Range
-40°C to +90°C (operating temperature)
UV Resistance
Certified for UV exposure
Flame Retardancy
Compliance with IEC 60332-1 standards
Certifications
TÜV, IEC, and other relevant approvals
