Description

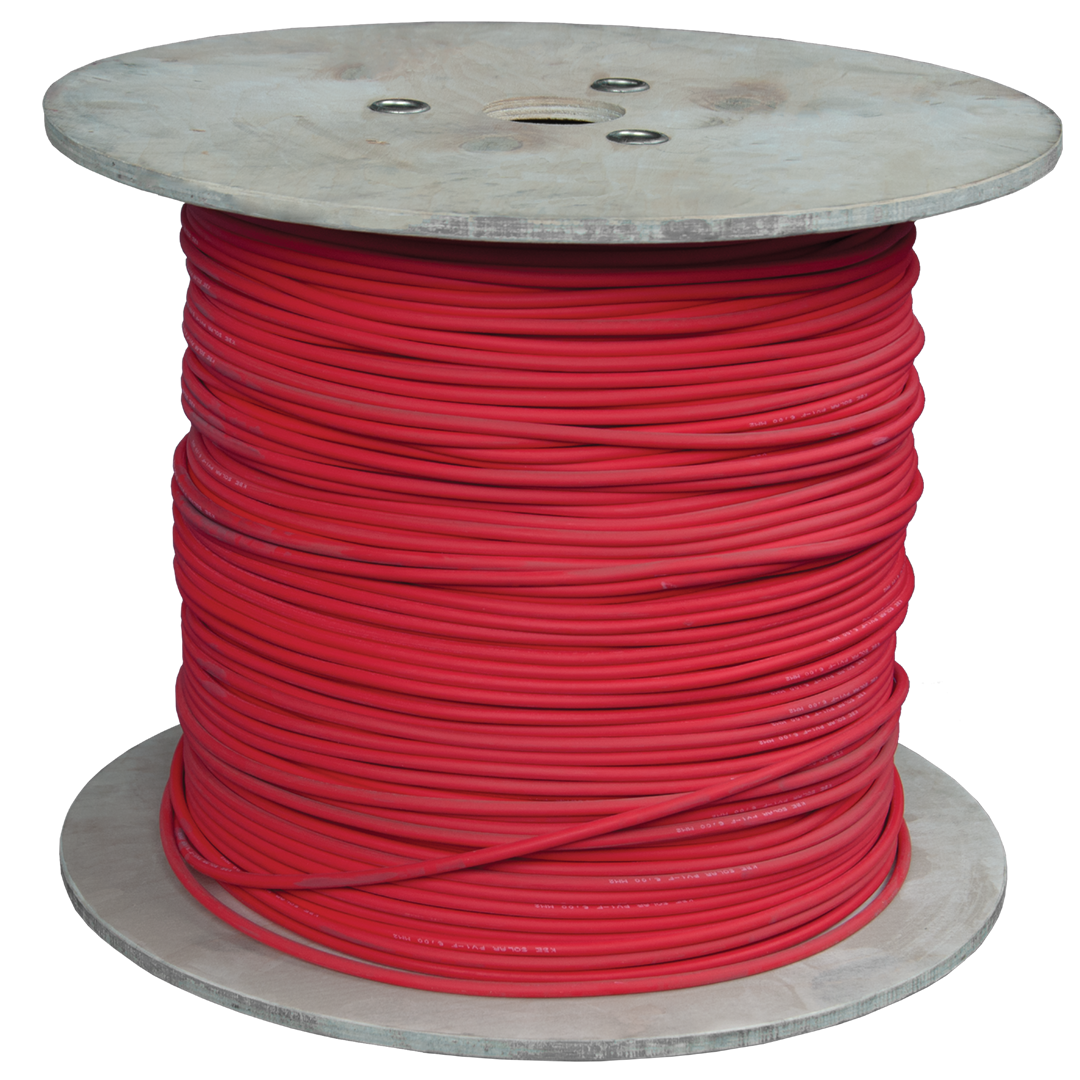

xThe KBE DB+ solar cable in red, 10mm², is a premium-quality photovoltaic cable engineered for durability, high current-carrying capacity, and compliance with global standards. Its triple certification ensures performance and safety in demanding solar power applications.
Key Features
- Triple certified to EN 50618, TÜV 2 PFG 1169, and UL 4703
- Highly flexible design for easy installation and routing
- UV, ozone, and weather-resistant sheath material
- Optimised for use in 1.5 kV DC photovoltaic systems
Specifications
xConductor Cross-Section
10 mm²
Conductor Material
Tinned copper, flexible (Class 5)
Insulation Material
Electron-beam cross-linked polyolefin
Sheath Colour
Red
Rated DC Voltage
1.5 kV DC
Test Voltage
6.5 kV AC
Operating Temperature Range
-40°C to +120°C
UV Resistance
Yes (EN 50618 compliant)
Compliance Standards
EN 50618, TÜV 2 PFG 1169/08.07, UL 4703
Flame Retardancy
IEC 60332-1-2
