Description

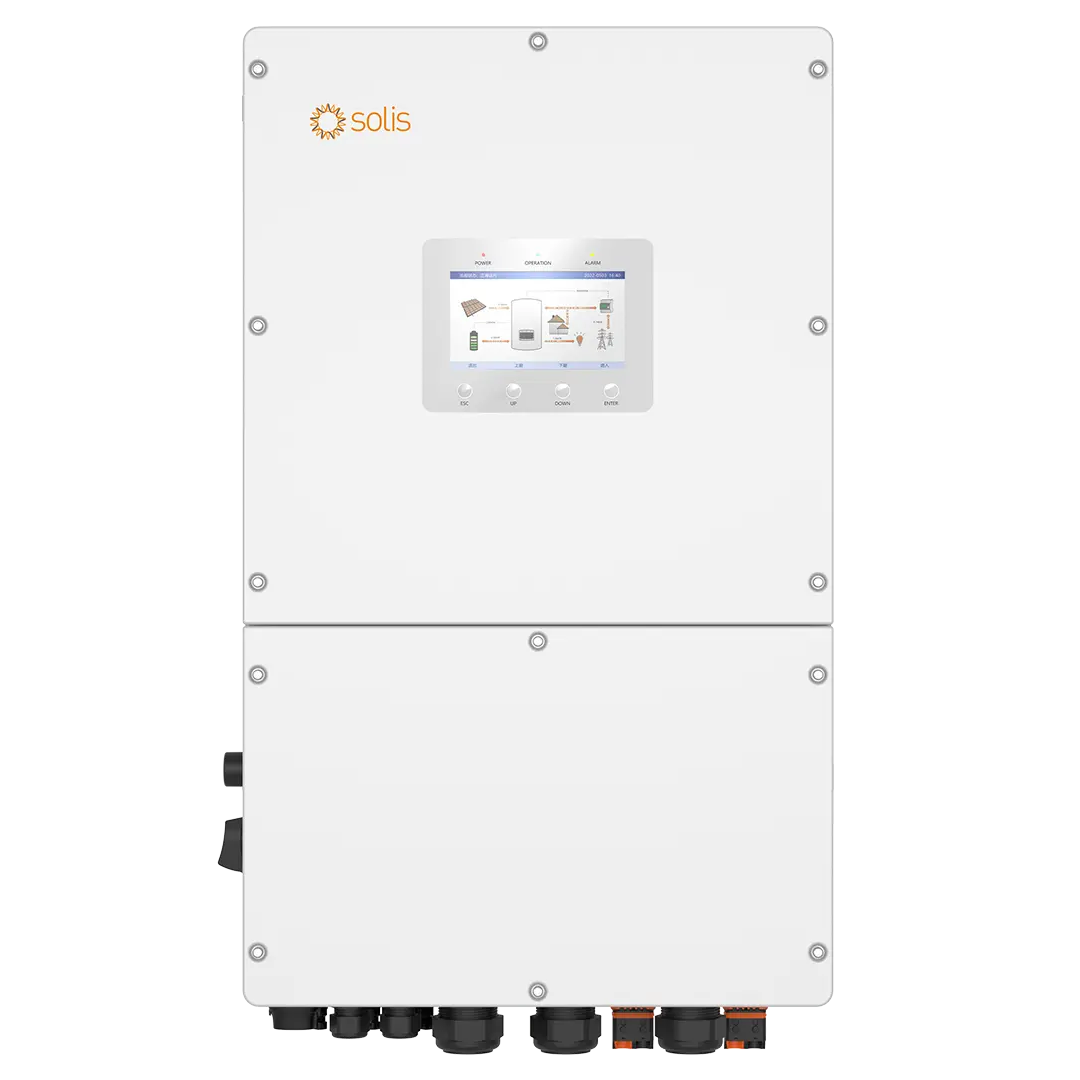

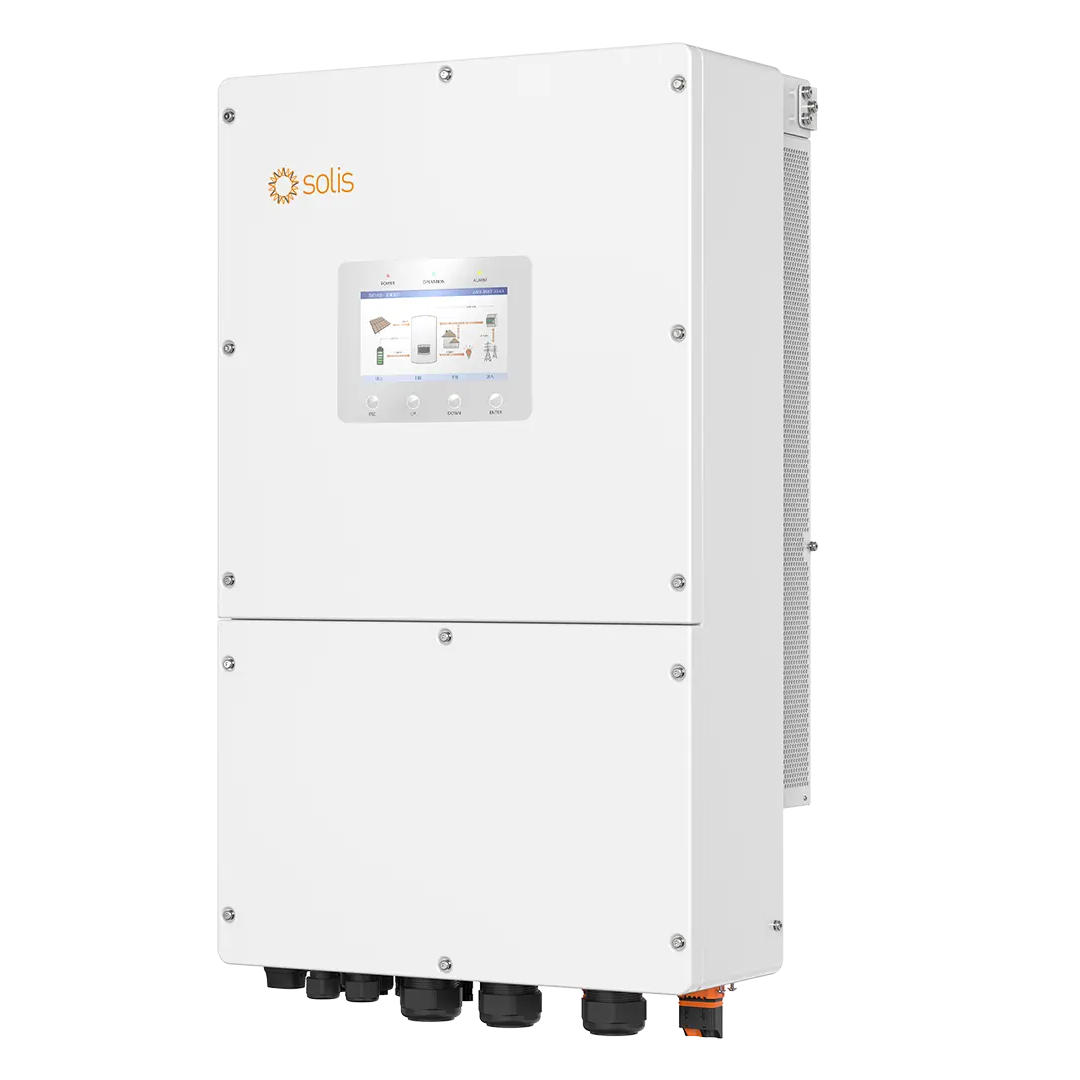

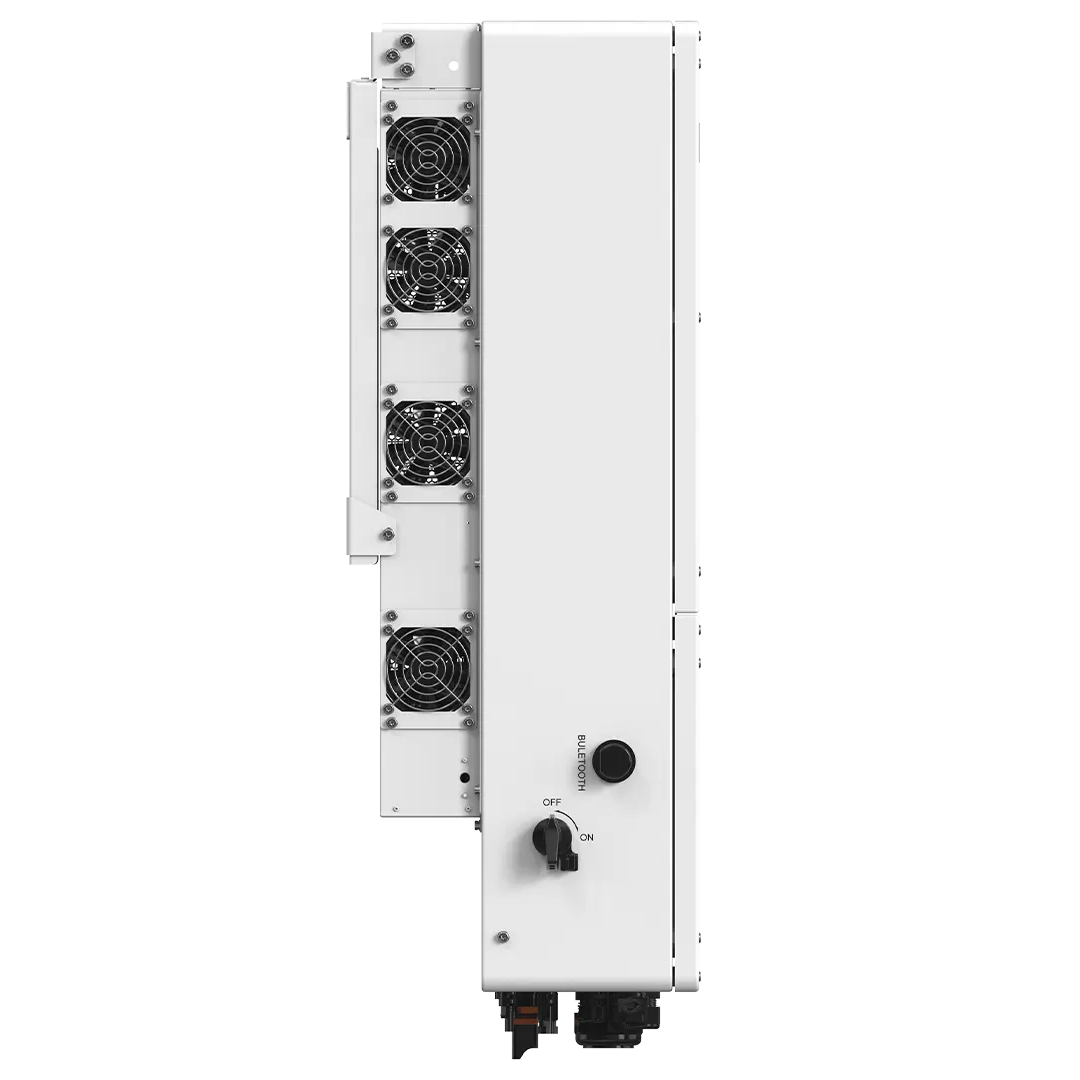

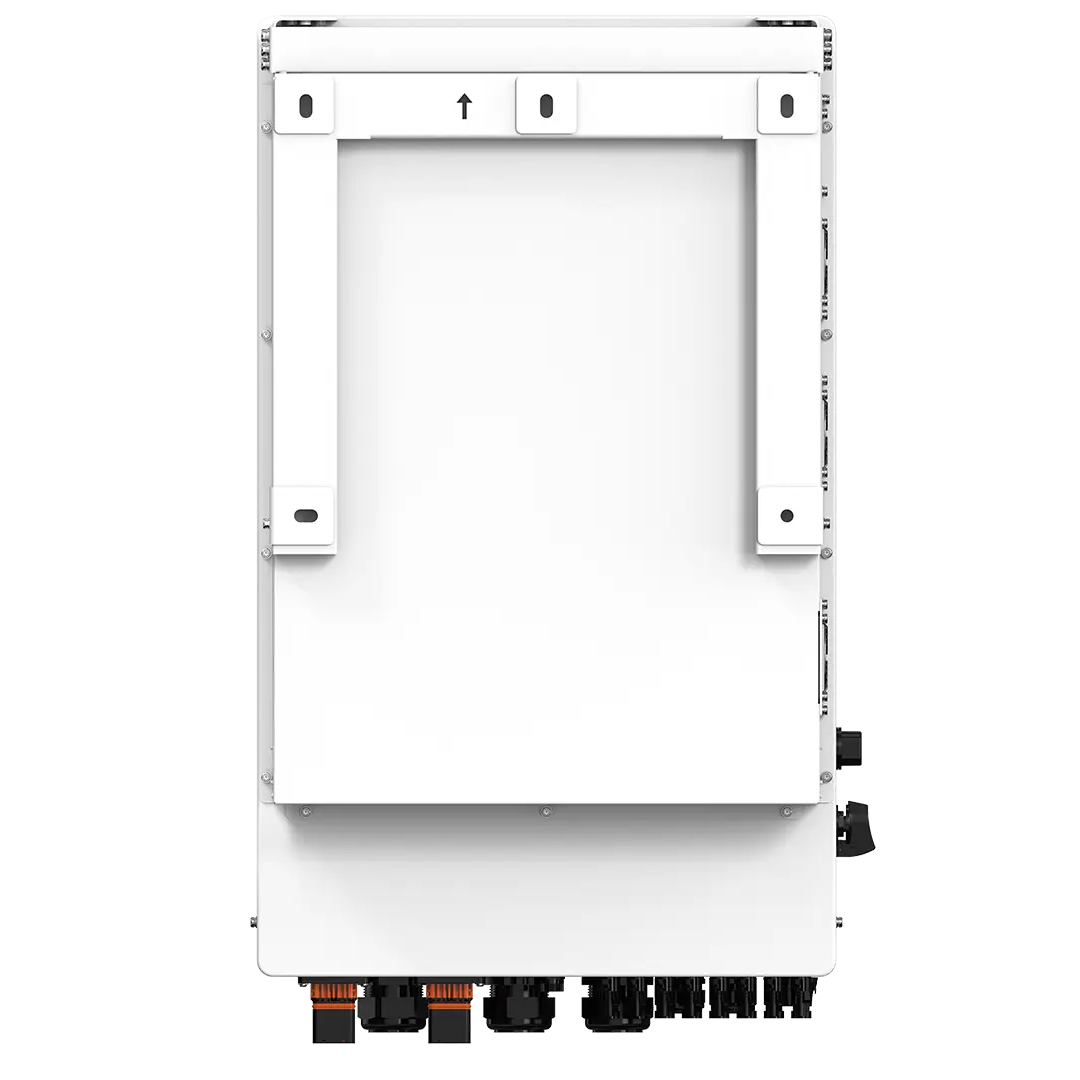

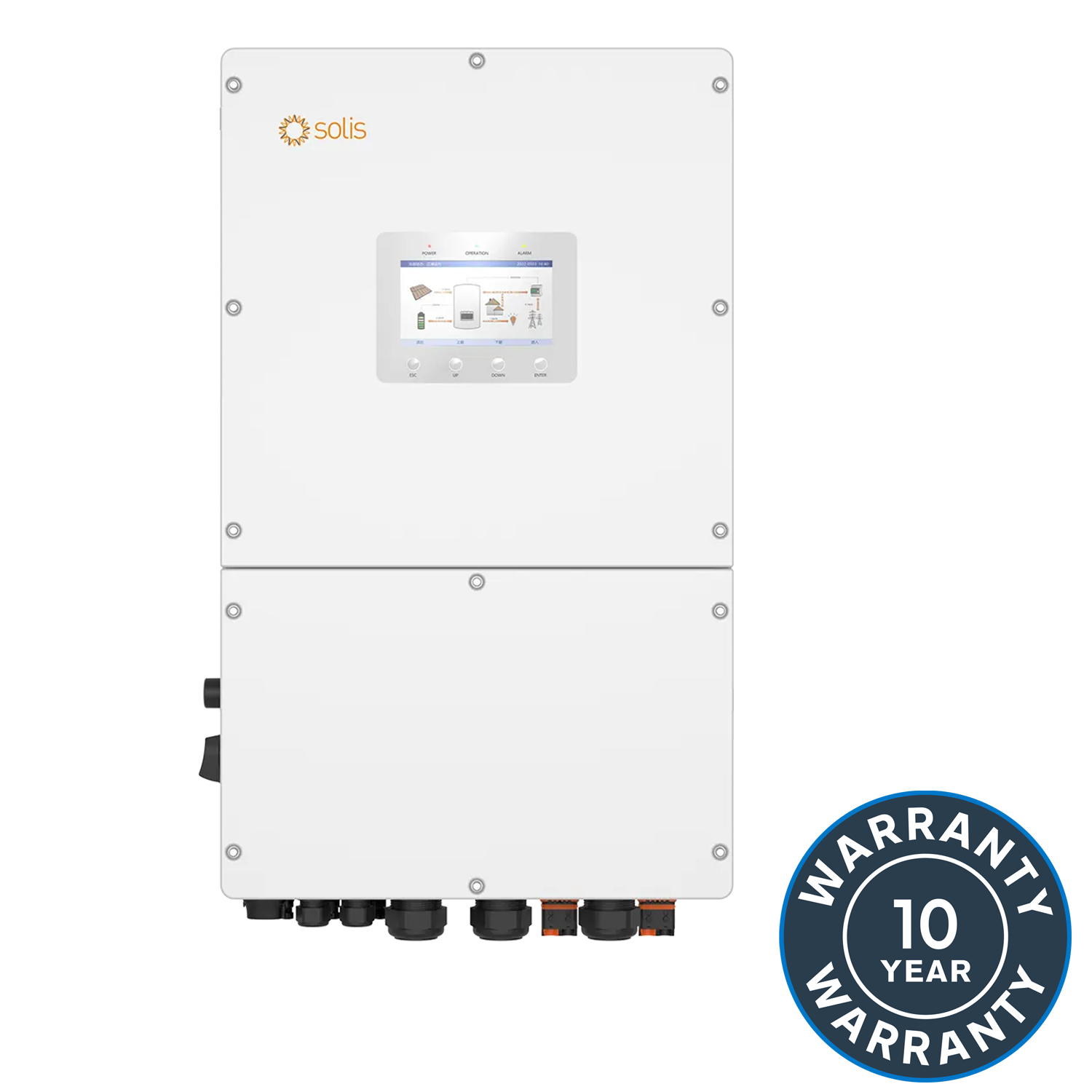

xThe Solis S6 30 kW 3‑Phase Hybrid Inverter (model S6‑EH3P30K‑H) is a high-performance energy storage solution for commercial and industrial applications. Designed for intelligent energy management, it supports high-voltage lithium-ion batteries, parallel configurations, and seamless UPS switching. Featuring three independent MPPTs and a robust design, it ensures reliable power supply, peak shaving, and flexible self-consumption or generator-mode operations.
Key Features
- 30 kW nominal AC output with support for large-scale installations
- Three independent MPPTs with 40 A string input per tracker
- Dual high-voltage battery ports with up to 140 A charge/discharge
- Automatic EPS switchover in under 10 ms for uninterrupted power
Specifications
xModel
S6‑EH3P30K‑H 3‑Phase Hybrid Inverter
Nominal AC Output
30 kW / 30 kVA
DC Input Configuration
3 MPPTs, 6 strings, 3×40 A max input
Max DC Voltage
1000 V DC
Battery Ports
Dual HV ports, 140 A/70 A + 70 A
Parallel Support
Up to 6 units
UPS Switch Time
<10 ms (EPS)
Efficiency (Max/CEC)
≈ 96.3 % / ≈ 97.0–97.7 %
Protection Rating
IP65–IP66; Type 4X
Operating Temp
−25 °C to +60 °C
Weight & Dimensions
~45 kg; ~680 × 600 × 270 mm
Weight & Dimensions
~45 kg; ~680 × 600 × 270 mm
