Description

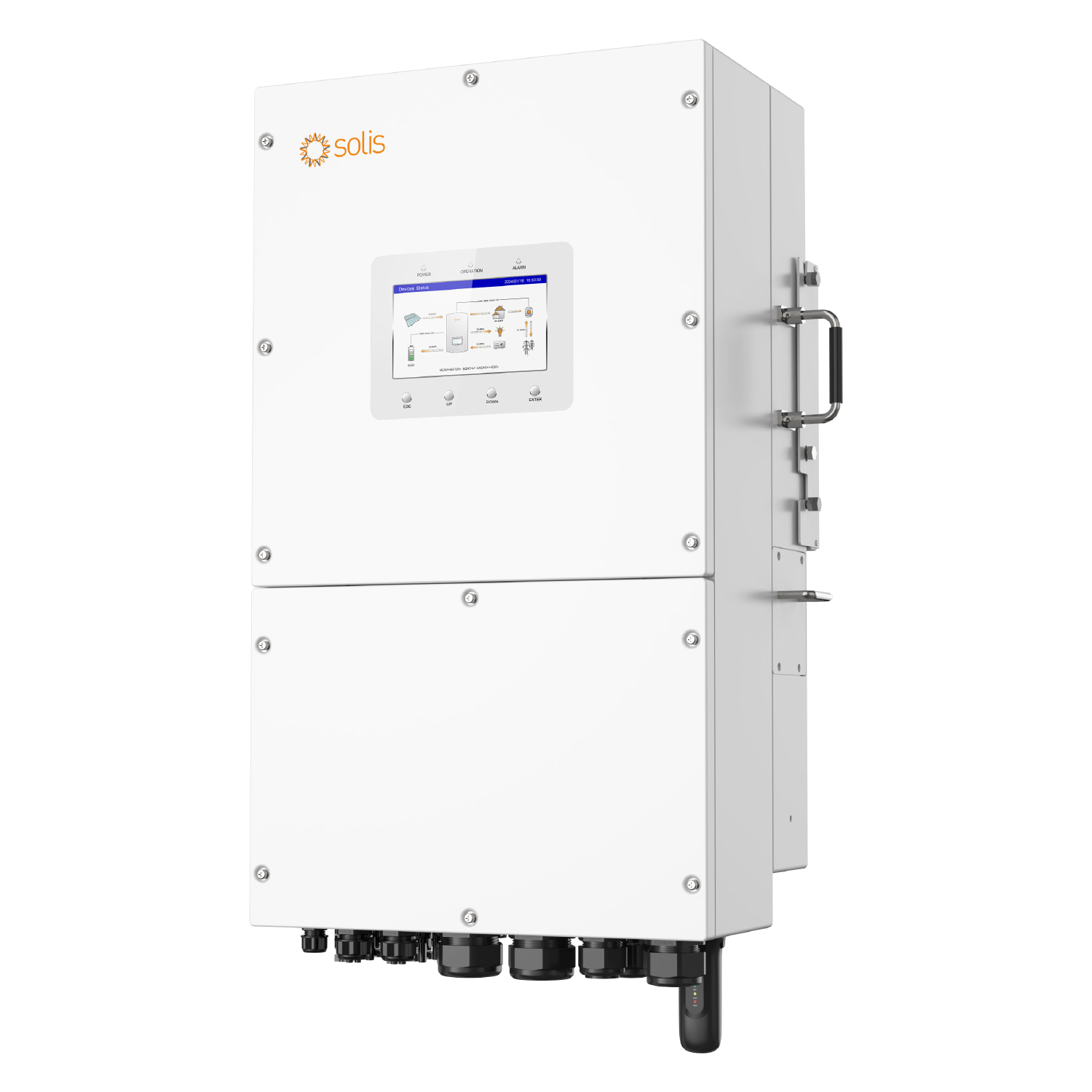

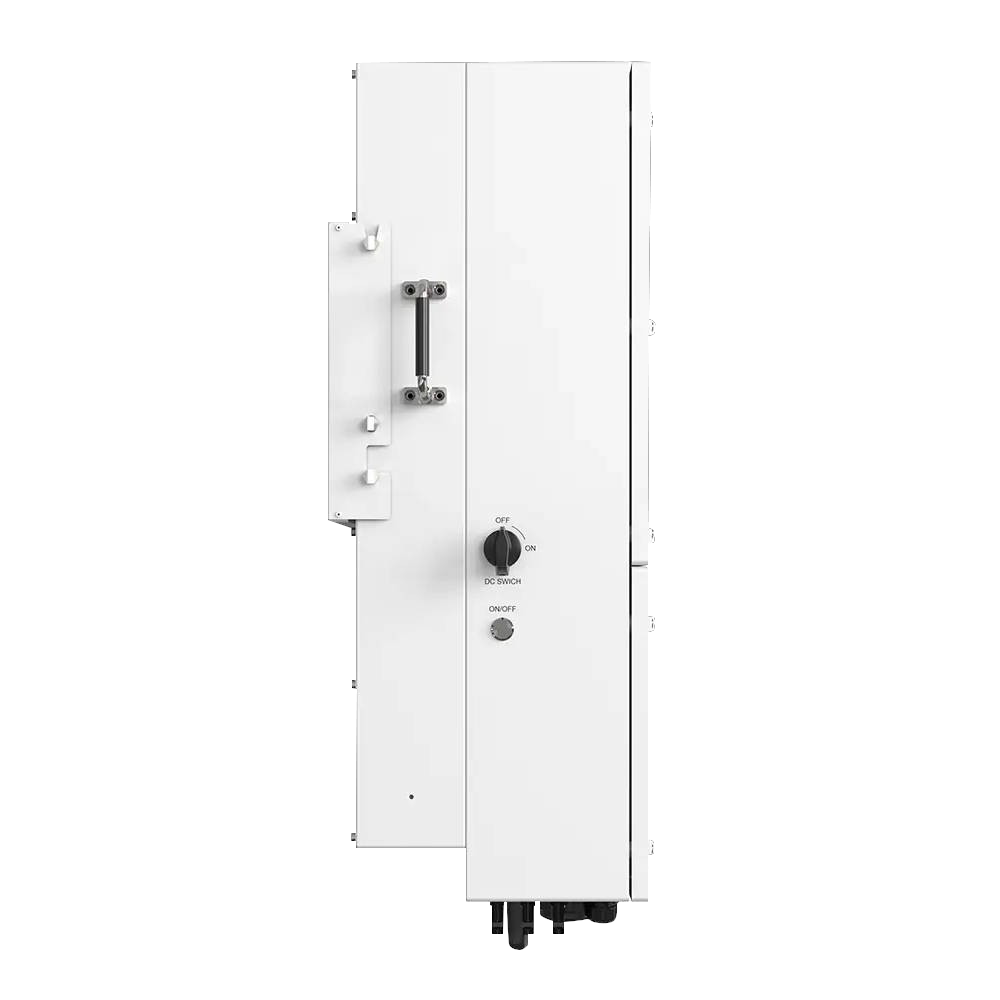

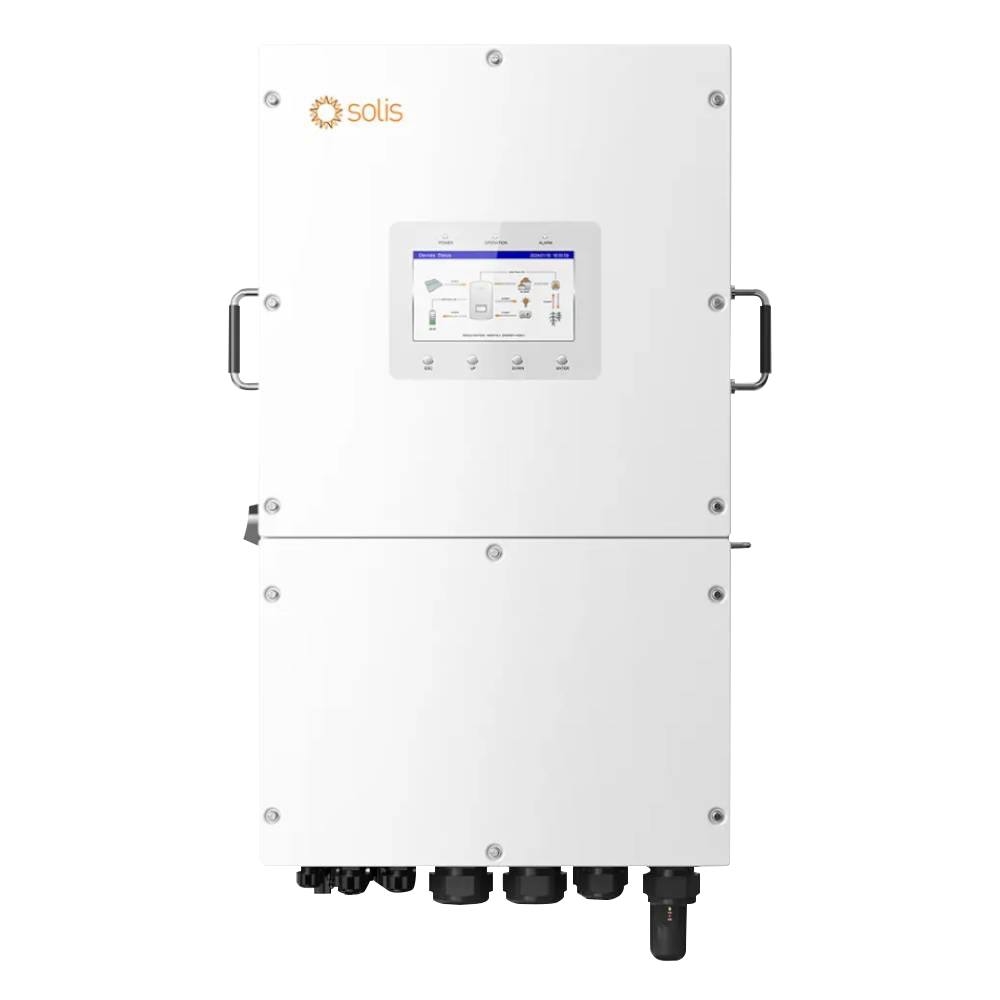

xThe Solis S6-EH1P12K03-NV is a high-efficiency single-phase hybrid inverter designed for advanced residential and light commercial solar-plus-storage applications. Supporting a DC input of up to 12kW and equipped with three independent MPPTs, this model ensures optimised energy harvesting across multiple string orientations. Its hybrid capability allows for seamless integration of battery storage, enabling backup power, peak shaving, and time-of-use optimisation.
Key Features
- 3 MPPTs for enhanced energy capture from complex roof layouts
- Intelligent EMS function for energy prioritisation and battery control
- Dual battery input for flexible storage options
- Integrated EPS function for reliable backup supply
Specifications
xMax. DC Input Power
18,000 W
Nominal AC Output Power
10,000 W
Max. DC Voltage
600 V
MPPT Number / Strings per MPPT
3 / 1
Battery Voltage Range
90 – 480 V
Max. Charge/Discharge Current
50 A
EPS Output Power (Backup)
10,000 W
Communication Interfaces
RS485, CAN, Wi-Fi/GPRS (optional)
Protection Class
IP65
Operating Ambient Temperature Range
–25°C to +60°C
