Description

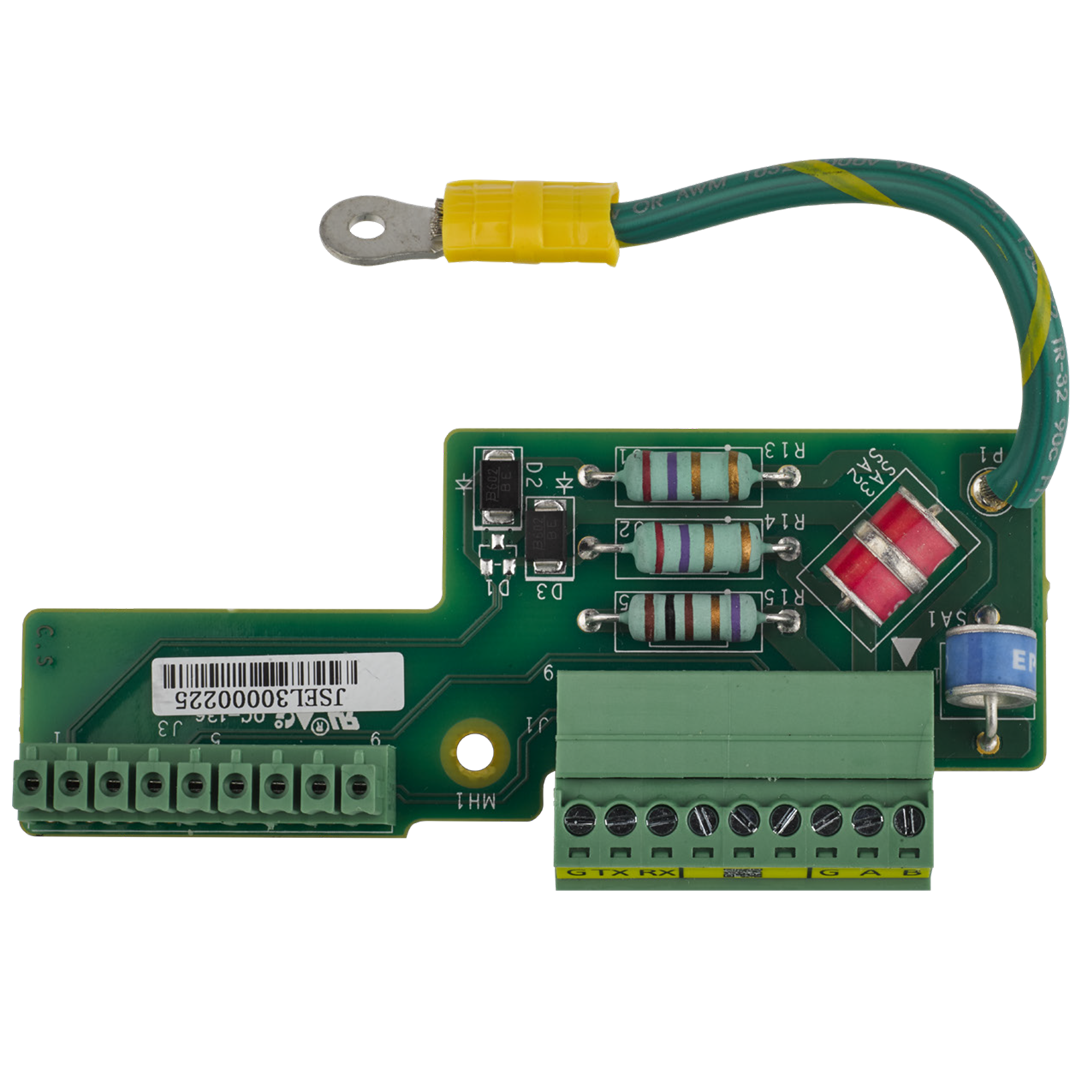

xSPD Plug-in for RS485, for Three Phase Inverters
Protecting your RS485 Communication Lines:
- Protects the RS485 transceiver from electrical surged, such as lightning
- Easy connection to the RS485 terminal block in the inverter
- Compatible with all SolarEdge three-phase inverters
- Can be added to existing installations without having to redo the RS485 wiring
Specifications
xParameter
Design: SPD Plug-in for RS485
Model: SE-RS485-SPD2-K1
Surge Protection Device configuration: 1-pair = Shielded
EMD: IEC 61643-21/ EN 61643-21
Mechanical data
Max. Load current (IL) (mA): 300
Max. frequency (MHz): >3
Insertion loss (db): <1
Connector type/wire cross section (AWG): Screw terminal/0.2-1.52
Dimensions (W x H x D) (mm): 91 x 37 x 15
Electrical data
Nominal line voltage (V): 12
Max. DC operating voltage (V): 15
Nominal discharge current (In) 8/20μs Test x 10 – C2 Category (kA): 5
Max. discharge current-max. (Imax) withstand @8/20μs by pole (kA): 1 5
Impulse current(limp) 2 x 10/350μs Test – D1 Category (kA): 1
Protection level (Up) (V): 70
Ambient conditions
Operating Temperature (˚C/): -40 to +85
Protection Rating: IP20/IP65 inside the inverter / NEMA6P
