Description

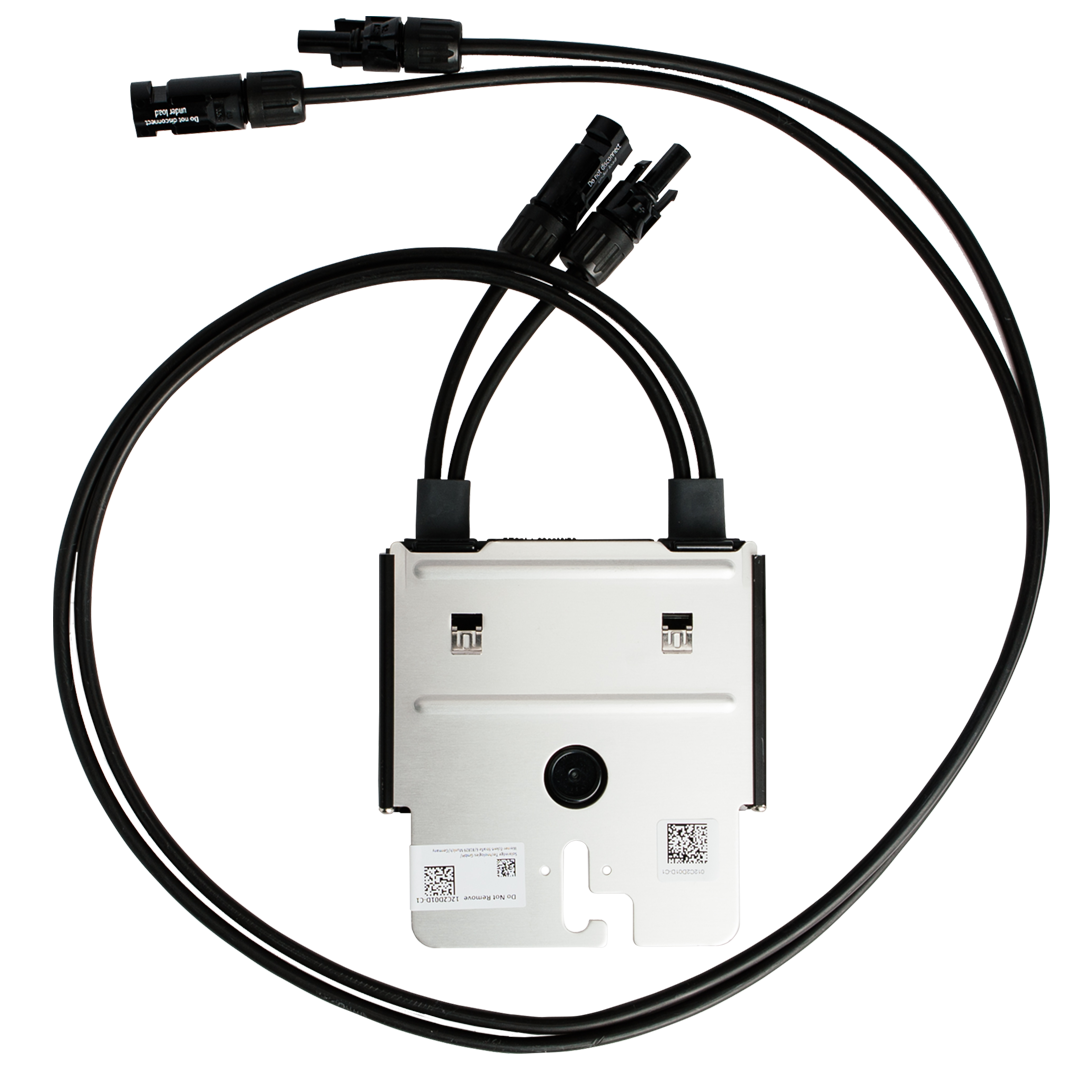

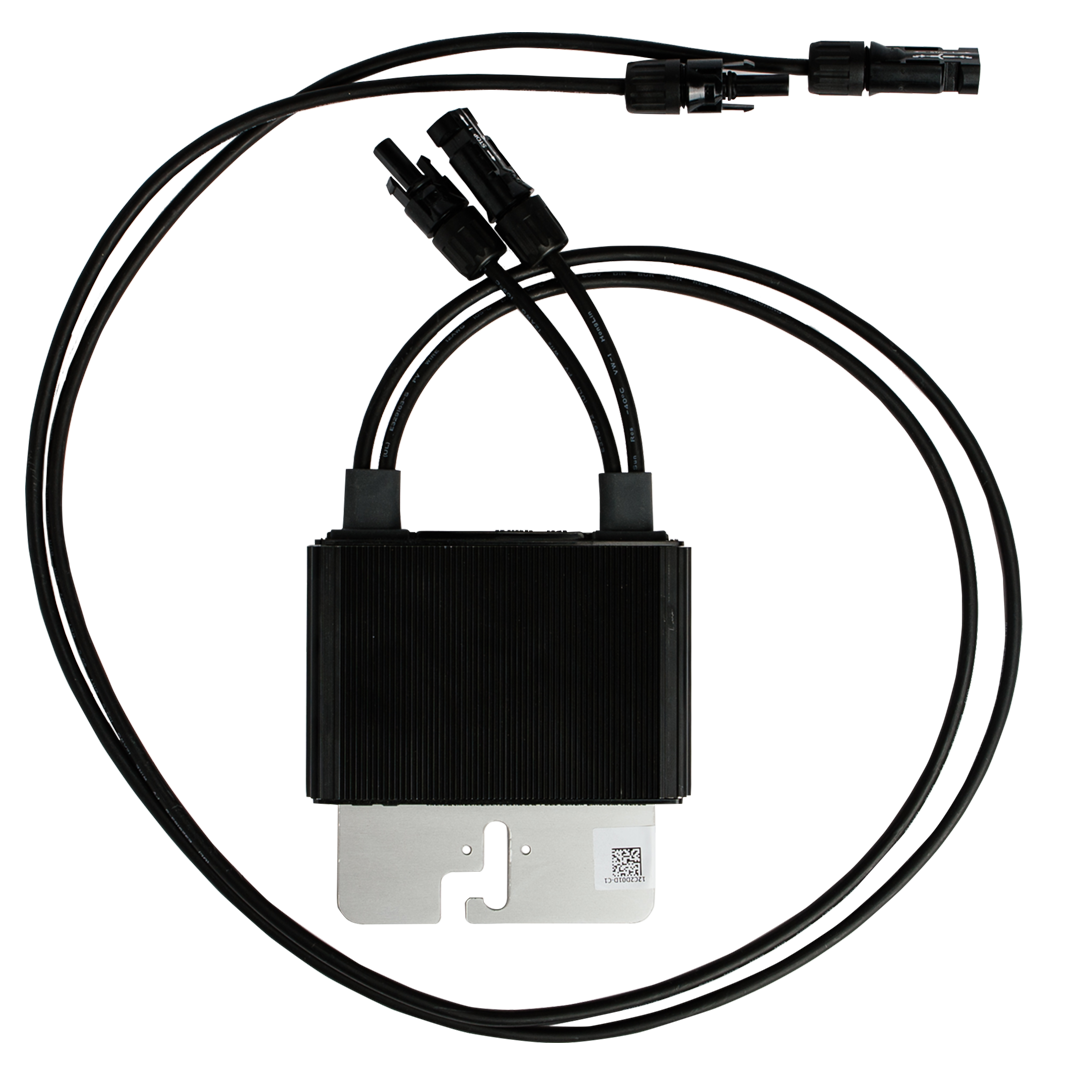

xPower Optimiser For Australia Module Add-On
- Specifically designed to work with SolarEdge inverters
- Up to 25% more energy
- Superior efficiency (99.5%)
- Mitigates all types of modules mismatch loss, from manufacturing tolerance to partial shading
- Flexible system design for maximum space utilization
- Fast installation with a single bolt
- Next generation maintenance with module level monitoring
- Module-level voltage shutdown for installer and firefighter safety
Specifications
xParameter
Design: PV Power Optimiser
Model: P505
Input Connector: MC4(2)
Output Connector: MC4
RoHS: Yes
Mechanical data
Overcurrent Protection (Adc): 15.25
Overvoltage Category: II
Weighted Efficiency: 98.8%
Maximum Efficiency: 99.5%
Maximum Short Circuit Current (Isc) (Adc): 14
Output Wire Length: 1.2m
Input Wire Length: 0.16m
Dimensions (W x H x D) mm: 129 x 162 x 59
Weight (including cables) (gr): 1064
Electrical data
Rated Input DC Power (1) (W): 505
Absolute Maximum Input Voltage (Vdc): 83
MPPT Operating Range (Vdc): 12. 5- 83
Maximum Output Current (Adc): 15
Maximum Output Voltage (Vdc): 85
Safety Output Voltage per Power Optimiser (Vdc): 1 ± 0.1
Maximum Allowed System Voltage (Vdc): 1000
Relative Humidity: 0 - 100%
Ambient conditions
Operating Temperature Range (°C): -40 to +85
Protection Rating: IP68 / NEMA6P
