Description

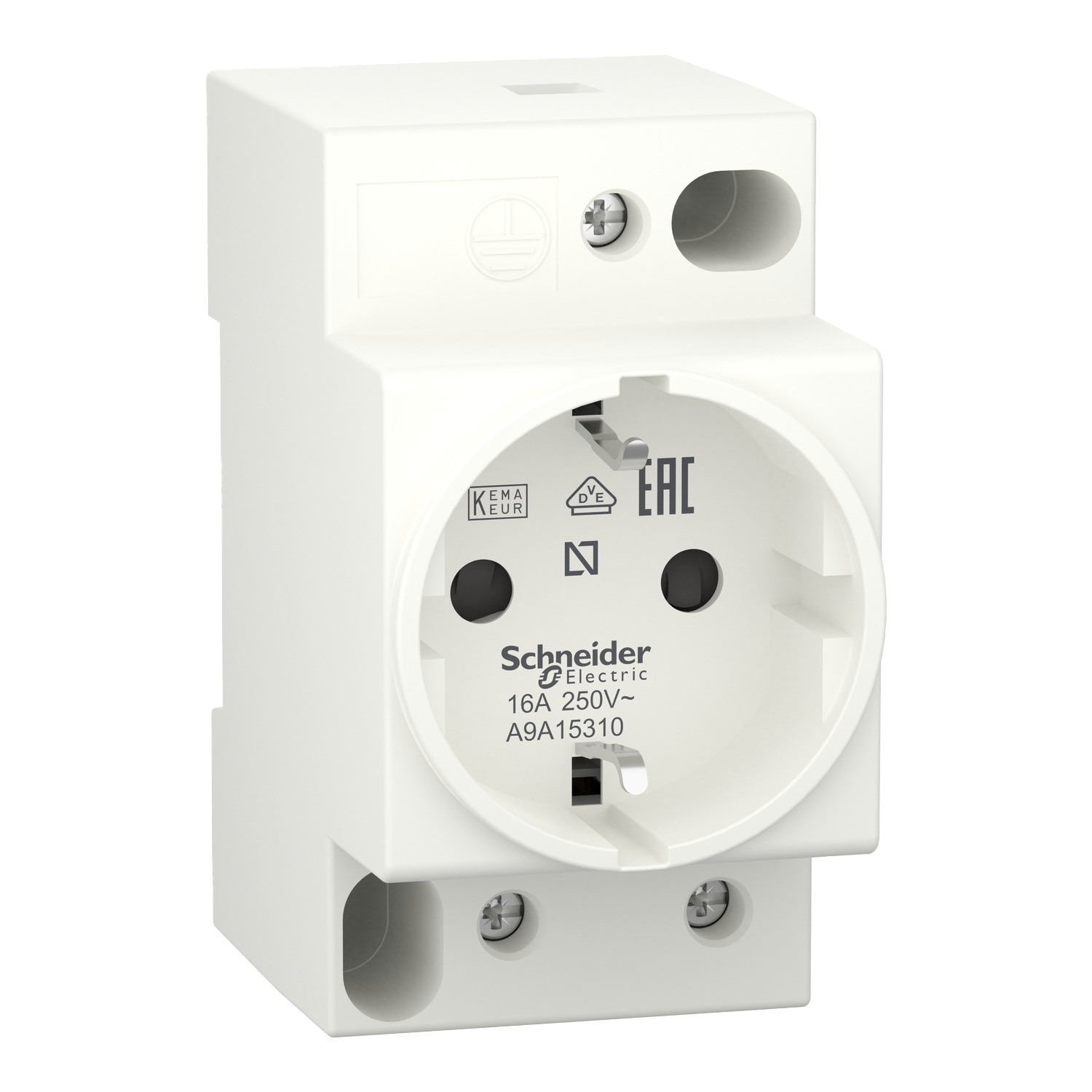

xThe Acti9 iPC modular power socket is designed for secure and reliable low-voltage connections within electrical networks. This 16 A, 2P+E socket complies with German KEMA VDE 0620 standards, ensuring compatibility and safety. It features a protective cover over poles, supports a wide range of cable types and sizes, and is optimised for straightforward installation in modular DIN-rail systems.
Key Features
- 16 A 2P+E socket with protective cover for enhanced safety
- Compliant with KEMA VDE 0620, UNE 20315-1-1, and NEN 1020 standards
- Supports rigid and flexible copper cables with ferrules
- Compact modular design, 5-pitch width, suitable for DIN-rail installation
Specifications
x
Merge the specifications with the code
Rated Current
16 A
Poles
2P+E
Standards Compliance
KEMA VDE 0620, UNE 20315-1-1, NEN 1020
Tightening Torque
1.2 N·m (PZ2 screwdriver)
Cable Capacity (Rigid)
1 mm² – 10 mm²
Cable Capacity (Flexible / Ferrule)
1 mm² – 6 mm²
Width
5 × 9 mm pitches
Colour
White (RAL 9003)
Ingress Protection
IP20 (terminals), IP40 (in enclosure)
Operating Temperature
−25 °C to +70 °C
Storage Temperature
−40 °C to +80 °C
Dimensions (W×H×D)
45 × 81 × 55 mm
