Description

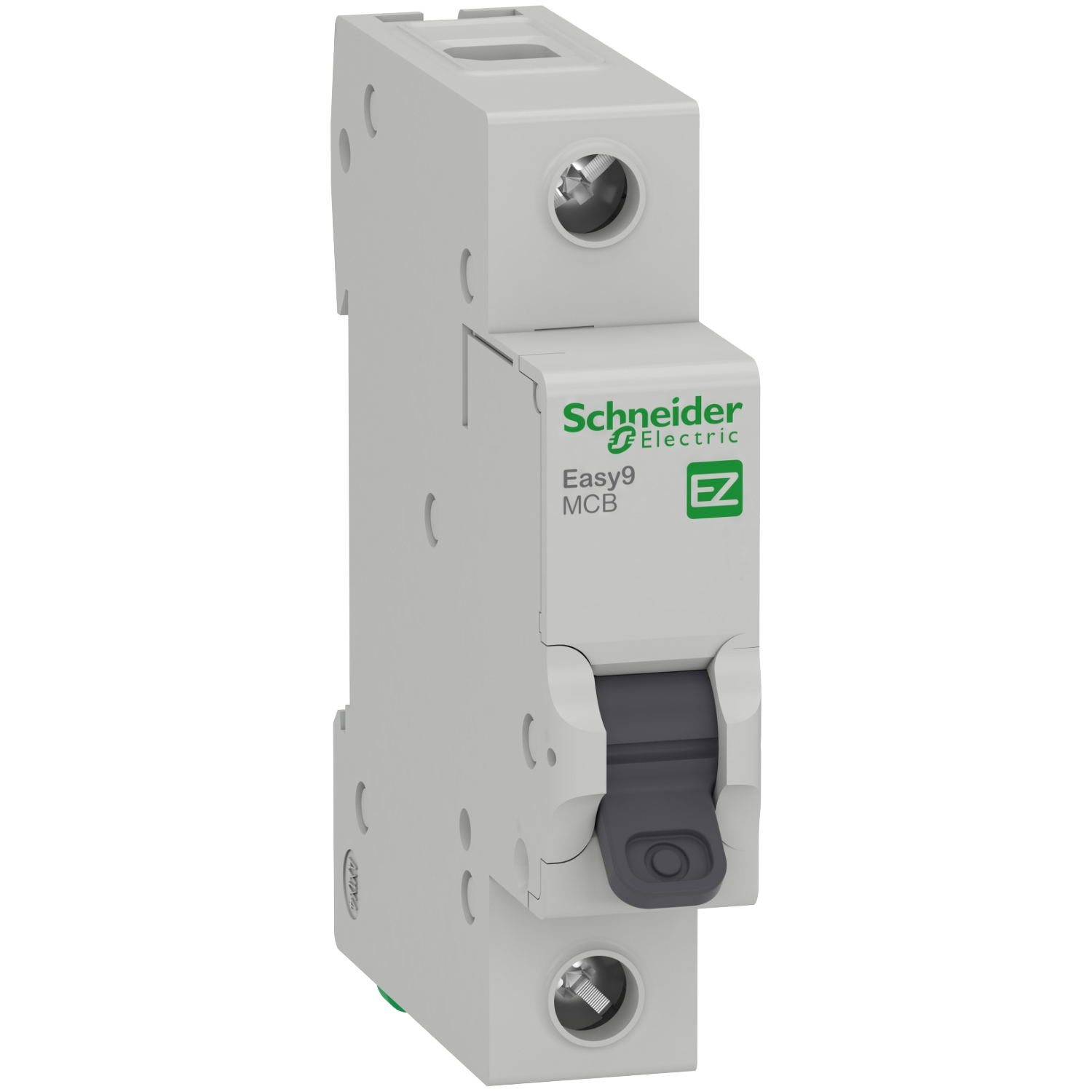

xThe Schneider Easy9 EZ9F53140 Miniature Circuit Breaker is engineered for residential and small commercial applications. It provides effective protection against short circuits and overloads in 230 V AC systems. With a compact 1-pole design, 40 A rated current, and C curve tripping, it ensures reliable performance and easy installation on DIN rails.
Key Features
- Compliant with EN/IEC 60898-1 standards
- 3 kA short-circuit breaking capacity at 230 V AC
- Visible fault tripping indication via handle position
- Compact, modular DIN rail mountable design
Specifications
xProduct Name
Easy9 Miniature Circuit Breaker
Product Code
EZ9F53140
Number of Poles
1-pole
Tripping Curve
C curve
Rated Current (In)
40 A
Rated Operational Voltage (Ue)
230 V AC
Rated Insulation Voltage (Ui)
500 V AC
Impulse Withstand Voltage (Uimp)
4 kV
Short-Circuit Breaking Capacity (Icu)
3 kA (IEC 60898-1)
Mounting
DIN rail
Electrical Endurance
4,000 cycles
Mechanical Endurance
10,000 cycles
Operating Temperature
−5 °C to +60 °C
Degree of Protection
IP20 (IP40 in enclosure)
