Description

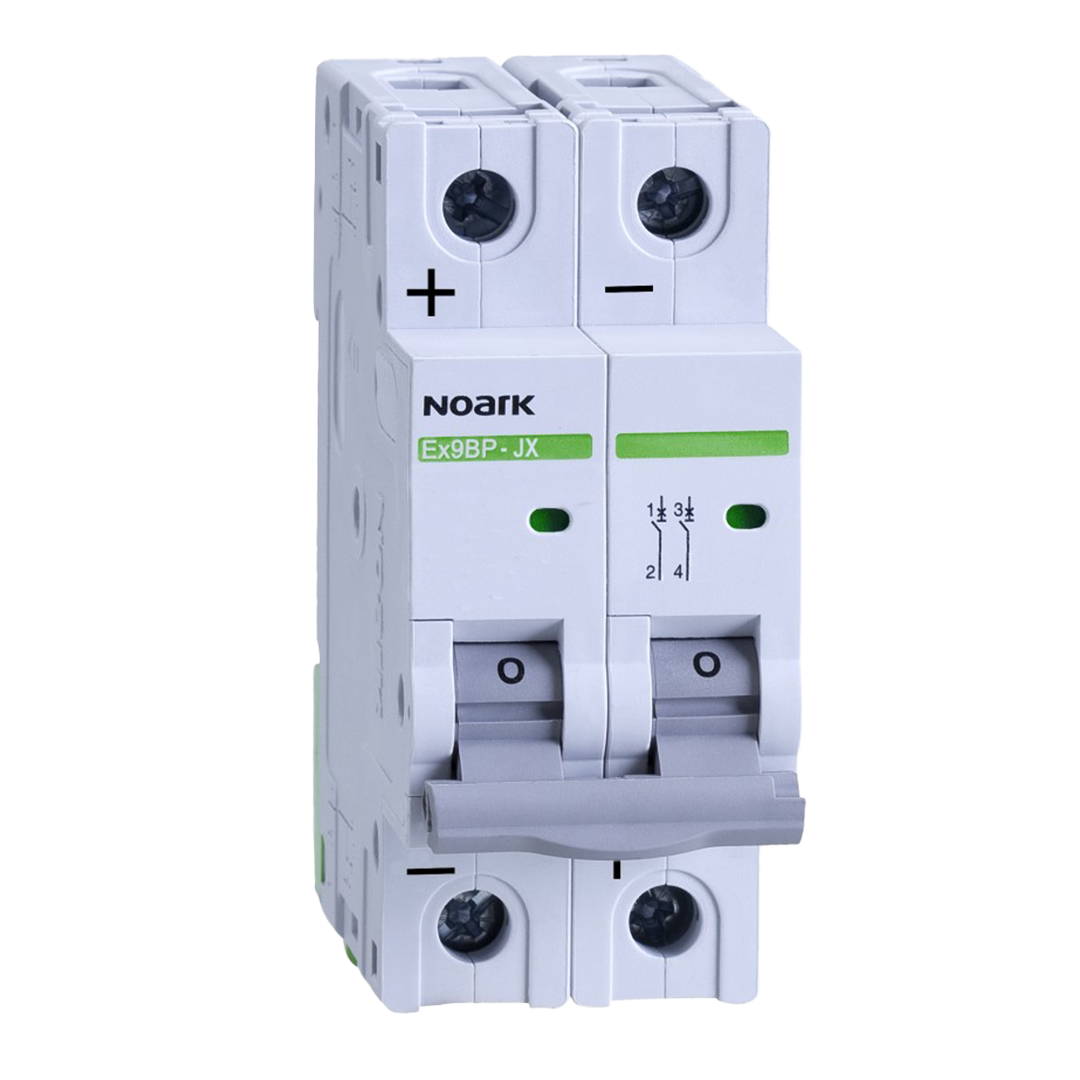

xThe Noark Ex9BP-JX(+) Mini Circuit Breaker is purpose-built for DC circuit protection applications, offering dependable performance at up to 500 V DC. With a rated current of 4 A and a 2-pole configuration, it ensures reliable isolation and protection for photovoltaic, battery storage, and other DC systems. Designed for compact installation, it combines high breaking capacity with safety, durability, and compliance with international standards.
Key Features
- Suitable for 500 V DC systems with a 2-pole configuration
- Rated for 4 A continuous current protection
- High breaking capacity up to 6 kA for enhanced safety
- DIN rail mounting for quick and secure installation
Specifications
xProduct Name
Noark Ex9BP-JX(+) Mini Circuit Breaker
Type
Ex9BP-JX(+)
Number of Poles
2-pole
Rated Current
4 A
Rated Voltage
500 V DC
Breaking Capacity
6 kA (IEC/EN 60947-2)
Tripping Characteristic
Thermal-magnetic
Mounting
35 mm DIN rail
Terminal Type
Screw terminals
Standards Compliance
IEC/EN 60947-2
Operating Temperature
–40 °C to +70 °C
Application
DC circuits, solar PV, energy storage systems
