Description

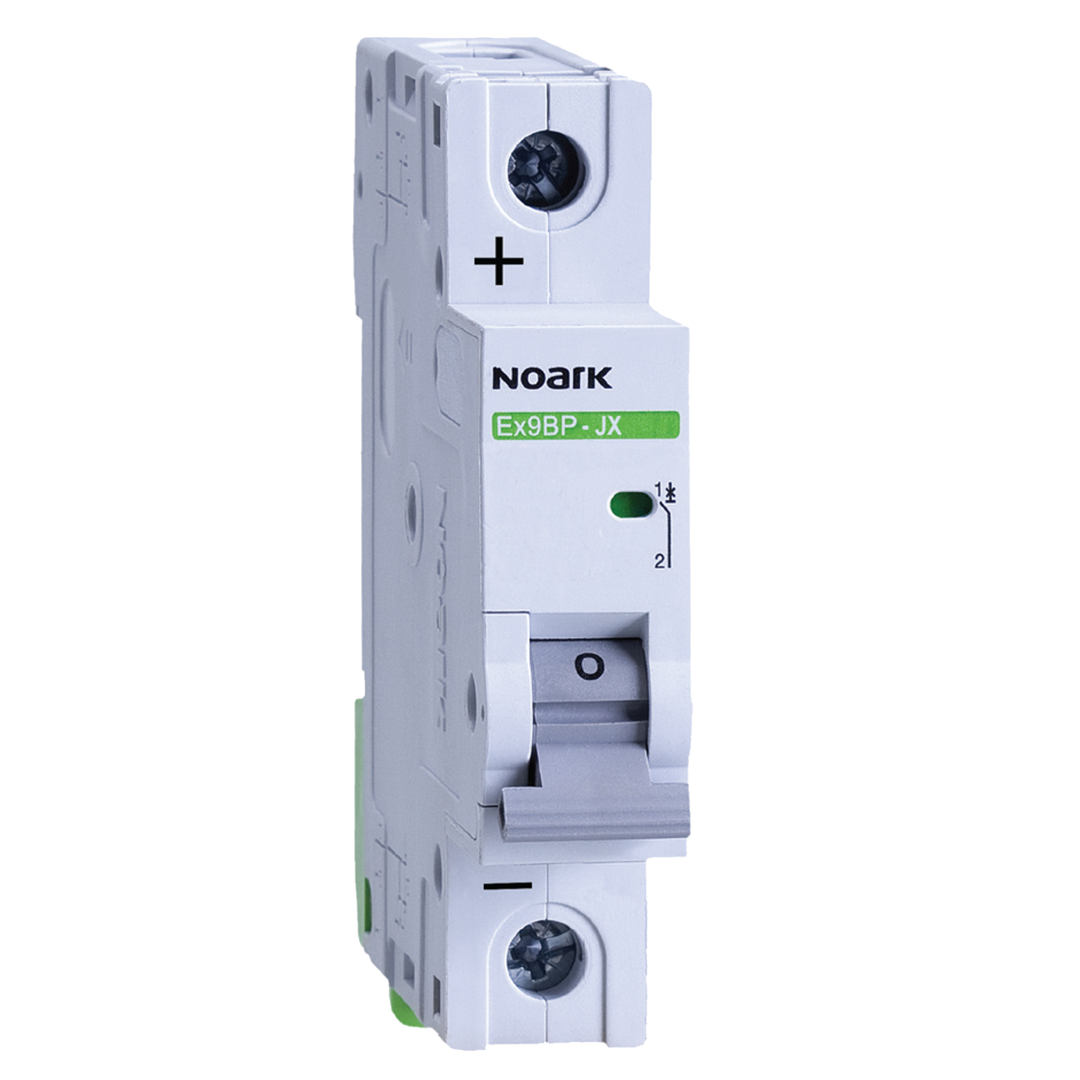

xThe Noark Ex9BP-JX(+) Mini Circuit Breaker is designed for low-current DC protection in demanding environments. With a single-pole configuration and 4 A rated current, this MCB provides precise overcurrent and short-circuit protection in systems operating at up to 250 V DC. Ideal for compact photovoltaic, battery, or DC control circuits.
Key Features
- Dedicated DC design for 250 V systems
- Thermal-magnetic tripping for reliable protection
- Compact 1-pole construction for space-saving installations
- Complies with IEC/EN 60947-2 for industrial applications
Specifications
xProduct Name
Noark Ex9BP-JX(+) Mini Circuit Breaker, 1-pole, 250 V DC, 4 A
Type
Ex9BP-JX(+)
Poles
1-pole
Rated Current
4 A
Rated Voltage
250 V DC
Breaking Capacity
6 kA (IEC/EN 60947-2)
Tripping Mechanism
Thermal-magnetic
Mounting
DIN rail
Connection Type
Screw terminals
Standards Compliance
IEC/EN 60947-2
Operating Temperature
–40 °C to +70 °C
Application
DC control, battery systems, compact installations
