Description

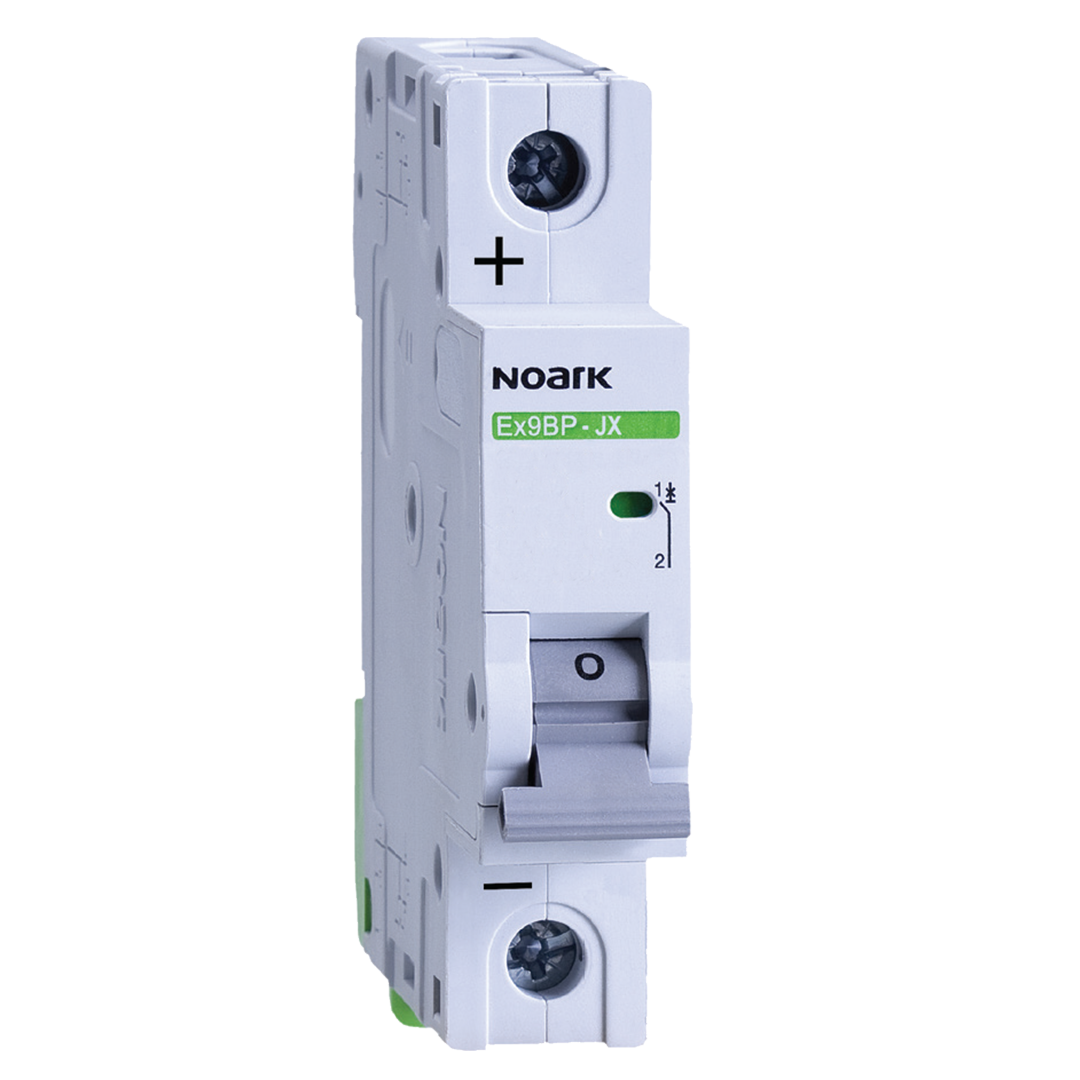

xThe Noark Ex9BP-JX(+) Mini Circuit Breaker is engineered for precise protection in low-current DC circuits up to 250 V DC. This 1-pole device offers reliable overload and short-circuit protection, ideal for photovoltaic systems, industrial control panels, and automation equipment. Its compact form factor and easy DIN rail mounting ensure seamless integration into electrical installations.
Key Features
- 1-pole configuration for single-line DC protection
- Rated for 2 A current at 250 V DC
- Thermal-magnetic trip mechanism for dependable operation
- Compact size with DIN rail mounting for easy installation
Specifications
xProduct Name
Noark Ex9BP-JX(+) Mini Circuit Breaker, 1-pole, 250 V DC, 2 A
Type
Ex9BP-JX(+)
Poles
1-pole
Rated Current
2 A
Rated Voltage
250 V DC
Breaking Capacity
6 kA (IEC/EN 60947-2)
Tripping Mechanism
Thermal-magnetic
Mounting
35 mm DIN rail
Connection Type
Screw terminals
Standards Compliance
IEC/EN 60947-2
Operating Temperature
–40 °C to +70 °C
Application
Photovoltaic systems, automation, control circuits
