Description

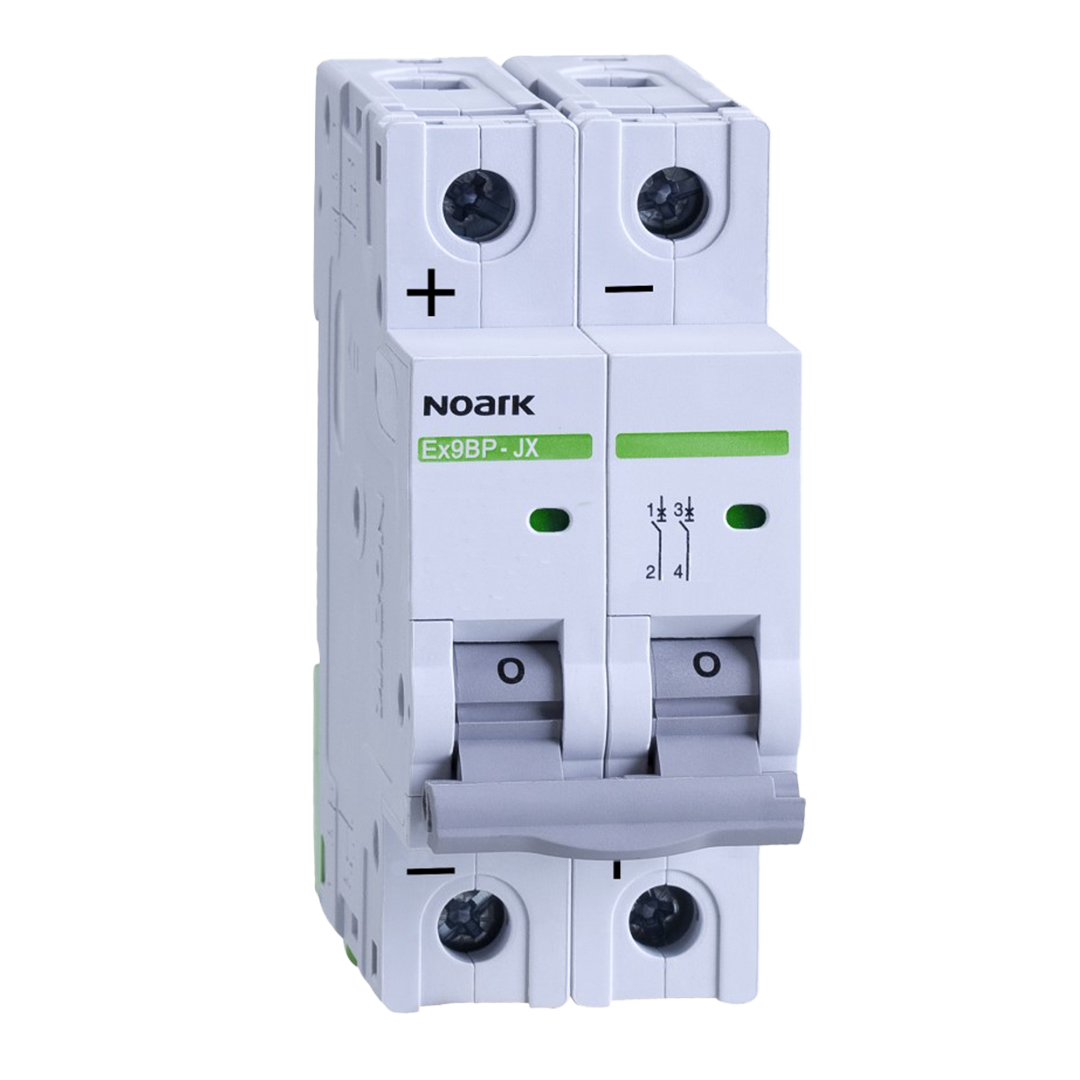

xThe Noark Ex9BP-JX(+) Mini Circuit Breaker is a high-performance solution designed for low-current DC circuit protection up to 500 V DC. With a 2-pole configuration and 1 A rating, this breaker ensures enhanced safety and reliability for applications such as photovoltaic strings, battery storage systems, and industrial DC installations. Its compact design, DIN rail mounting, and precision tripping mechanism make it ideal for modern electrical panels.
Key Features
- 2-pole design for reliable DC circuit isolation
- Rated for 1 A operation at 500 V DC
- Thermal-magnetic tripping for overload and short-circuit protection
- Compact DIN rail mounting for fast, secure installation
Specifications
xProduct Name
Noark Ex9BP-JX(+) Mini Circuit Breaker, 2-pole, 500 V DC, 1 A
Type
Ex9BP-JX(+)
Number of Poles
2-pole
Rated Current
1 A
Rated Voltage
500 V DC
Breaking Capacity
6 kA (IEC/EN 60947-2)
Tripping Characteristic
Thermal-magnetic
Mounting
35 mm DIN rail
Terminal Type
Screw terminal
Standards
IEC/EN 60947-2
Operating Temperature
–40 °C to +70 °C
Application
DC distribution, PV systems, battery storage
