Description

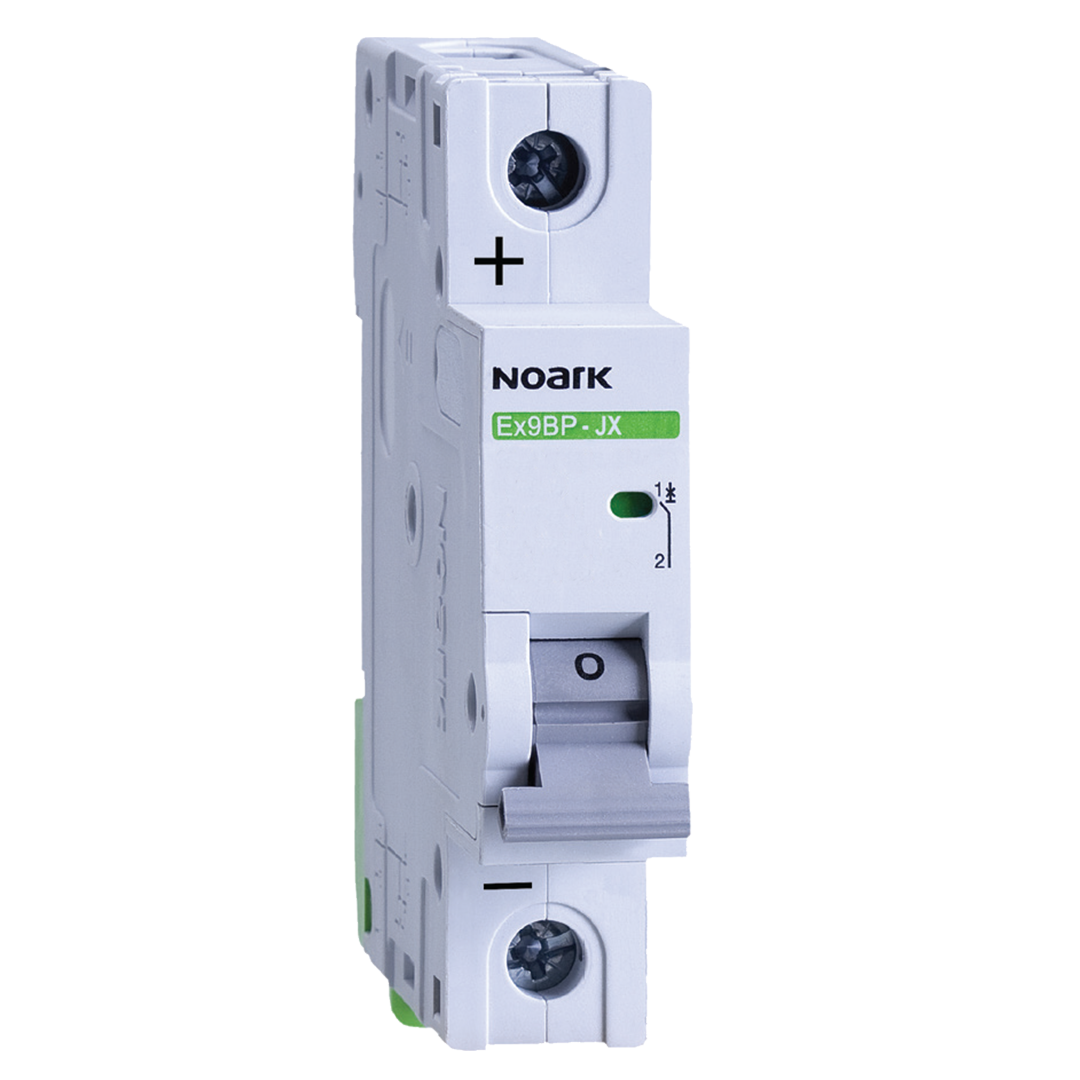

xThe Noark Ex9BP-JX(+) Mini Circuit Breaker is engineered for reliable protection of low-current DC applications up to 250 V DC. With a compact 1-pole configuration and a rated current of 1 A, this breaker ensures precise protection against overloads and short circuits. Ideal for use in photovoltaic systems, battery installations, and other DC environments requiring high-performance safety components.
Key Features
- 1-pole design for single-line DC circuit protection
- Rated for up to 250 V DC with a current rating of 1 A
- High breaking capacity ensures circuit safety and durability
- Compact DIN rail mountable design for easy installation
Specifications
xProduct Name
Noark Ex9BP-JX(+) Mini Circuit Breaker
Model
Ex9BP-JX(+)
Number of Poles
1-pole
Rated Current
1 A
Rated Voltage
250 V DC
Breaking Capacity
6 kA (IEC/EN 60947-2)
Tripping Mechanism
Thermal-magnetic
Mounting Type
35 mm DIN rail
Connection Type
Screw terminal
Operating Temperature
–40 °C to +70 °C
Standards Compliance
IEC/EN 60947-2
Application Areas
Solar PV, battery systems, industrial DC circuits
