Description
xPricing per meter, product is only is sold as a1000M drums

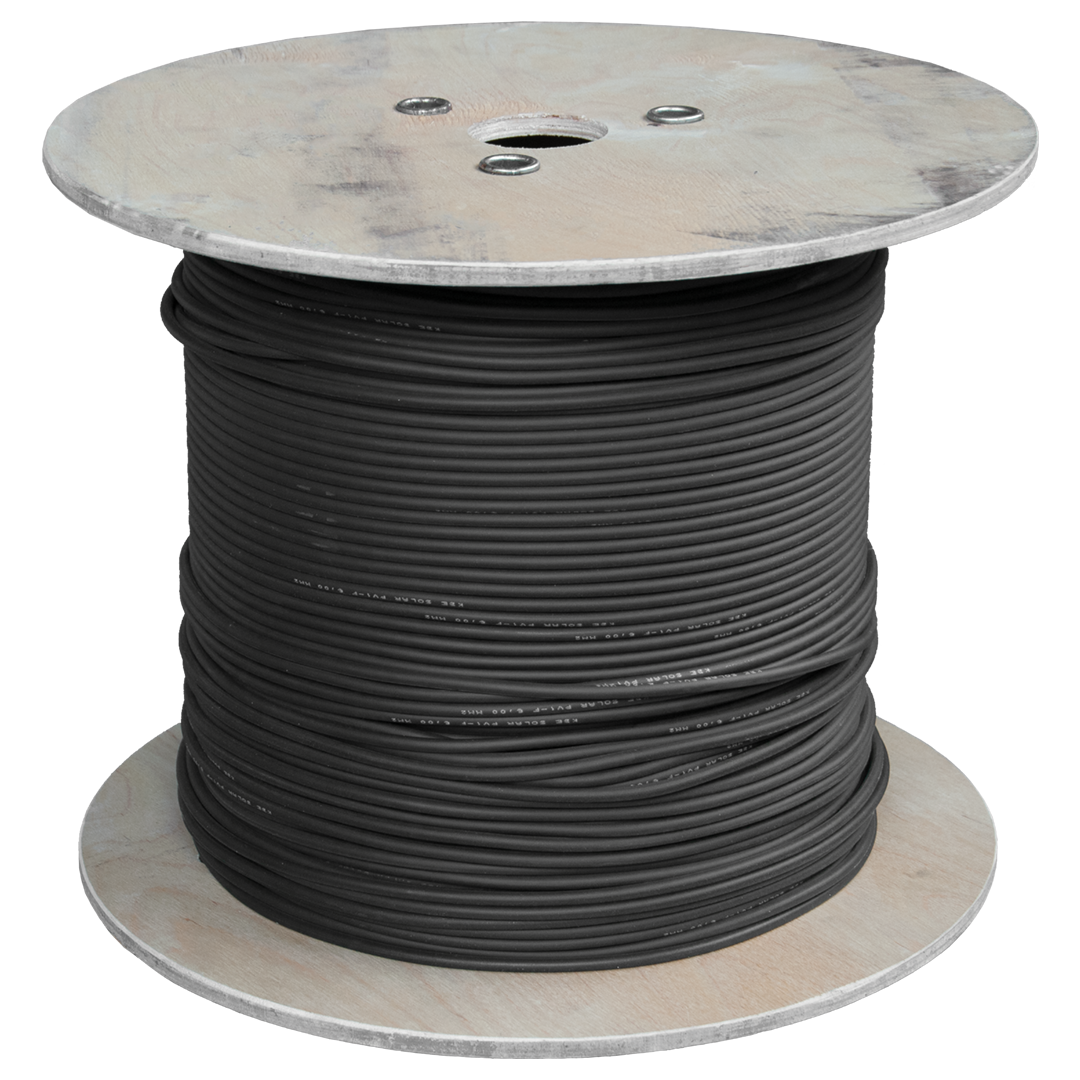

The KBE DB+ solar cable is a high-performance, triple-certified photovoltaic cable designed for use in modern solar power installations. With certification according to EN50618, TÜV 2 Pfg 1169/08.2007, and IEC 62930, this robust black 6mm² cable ensures safe, long-term operation in a wide range of environmental conditions.
Key Features
- Triple certified: EN50618, TÜV, IEC 62930
- UV, ozone, and weather resistant
- Halogen-free and flame retardant
- Designed for long operational life in harsh outdoor conditions
Specifications
xConductor Material
Tinned copper (class 5, fine-wired, according to EN 60228)
Conductor Size
6mm² cross-sectional area
Insulation Material
Electron beam cross-linked polyolefin (XLPO)
Sheath Material
UV-resistant, electron beam cross-linked polyolefin (XLPO)
Temperature Range
Operating temperature: -40°C to +90°C
Maximum Short Circuit Temperature
+250°C (for 5 seconds)
Voltage Rating
Maximum DC voltage: 1.5 kV (1500 V)
Current Carrying Capacity
Approx. 70A at 60°C in free air
Minimum Bending Radius
4 x outer diameter (during installation)
Certifications
EN 50618:2014, TUV 2 Pfg 1169/08.2007, IEC 62930
