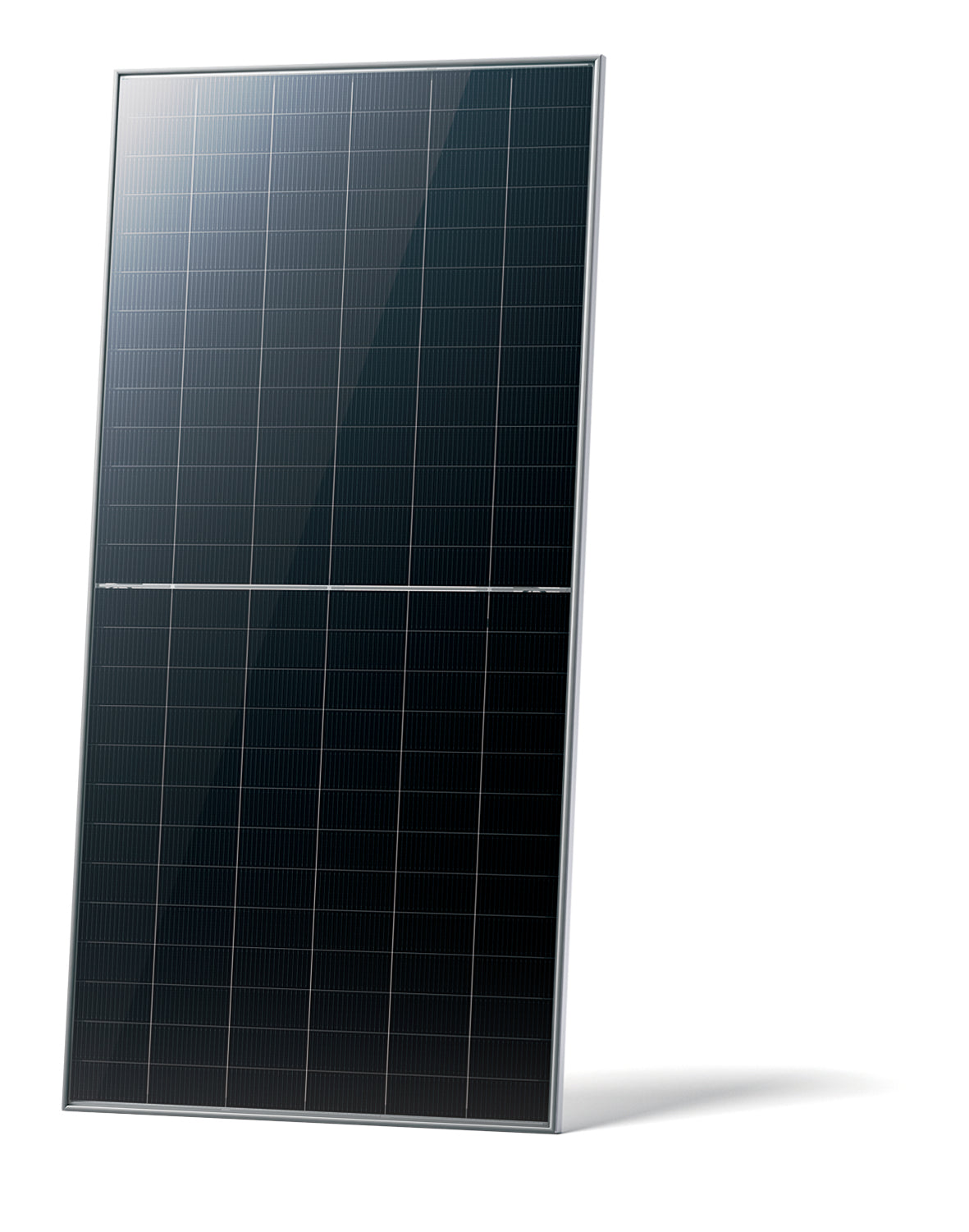

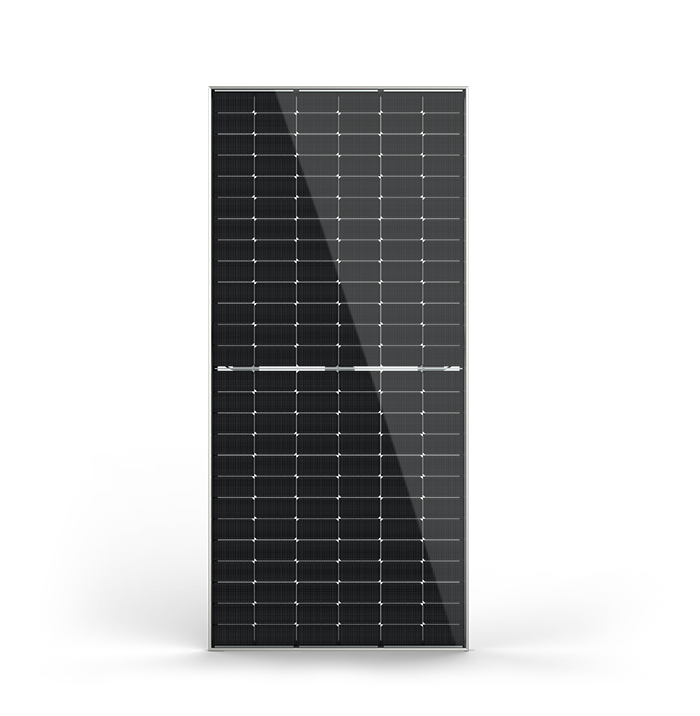

Jinko Solar 620W Tiger Neo N-Type Bifacial Dual-Glass TOPCon Solar Panel

The Jinko Solar JKM620N-66HL4M-BDV is a 620W Tiger Neo N-type TOPCon bifacial module with dual glass and 22.95% module efficiency.

N-type TOPCon cells with Jinko's HOT 3.0 and SMBB technology give lower LID/LeTID degradation, better low-light performance and a -0.29%/°C power temperature coefficient, along with an anti-PID guarantee. Degradation is 1% in year one and 0.40% a year after that (87.4% at year 30), backed by a 30-year linear power warranty and a 12-year product warranty.

The 2.0 mm anti-reflective front glass and 2.0 mm heat-strengthened back glass sit in an anodised aluminium frame certified to 5400 Pa front and 2400 Pa rear static load, with an IP68 junction box. With 80% (±5%) Pmax bifaciality, the rear face adds yield on ground-mount and carport arrays.

Why installers choose it

• 620W at 22.95% efficiency in the 2382 x 1134 mm 132-half-cell format
• N-type TOPCon (Tiger Neo): -0.29%/°C Pmax temperature coefficient, low LID/LeTID
• Bifacial dual-glass: 80% (±5%) Pmax bifaciality
• 30-year linear warranty: 1% in year 1, then 0.40% a year (87.4% at year 30)
• 1500 V DC system voltage (IEC), 35 A maximum series fuse
• IEC 61215:2021 / IEC 61730:2023, plus IEC 61701, IEC 62716, IEC 60068 and IEC 62804 (PID)

Good to know before you quote it

• Large format: 2382 x 1134 x 30 mm, 32.4 kg. Check rail spans and clamp zones for 2.4 m modules.
• Voc 49.08 V and Isc 16.08 A at STC. Maximum series fuse rating is 35 A. Size strings for the coldest site temperature (Voc coefficient -0.25%/°C).
• The standard connector is Jinko's JK03M. MC4 and MC4-EVO2 are only available on request, so confirm the connector on delivered stock before mating it with other brands.
• Silver anodised aluminium frame with clear dual glass. Output cables are 4.0 mm², +400/-200 mm.
