Description

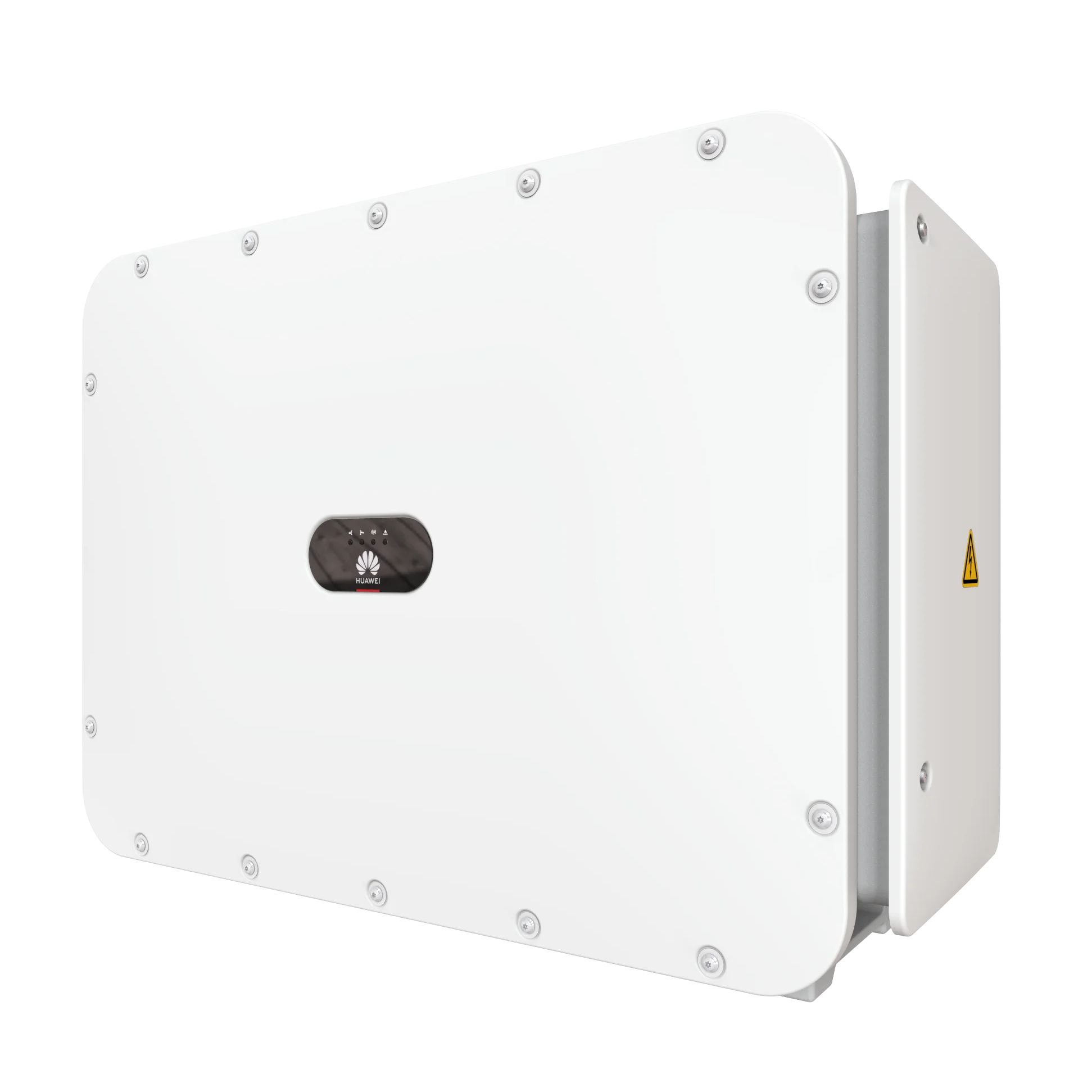

xThe Huawei SUN2000-150K-MG0 is a high-efficiency three-phase string inverter engineered for large-scale commercial and utility-scale solar installations. Featuring multi-MPPT architecture, intelligent string monitoring, and industry-leading safety functions, it offers exceptional performance and reliability. The SUN2000-150K-MG0 integrates seamlessly with Huawei's FusionSolar platform, enabling advanced remote diagnostics and proactive maintenance for optimal energy yield.
Specifications
xRated AC Output Power
150 kW
Max. Efficiency
98.8%
European Efficiency
98.4%
MPPTs / Strings per MPPT
10 MPPTs / 2 strings each
Input Voltage Range
200 V – 1000 V
Max. Input Current per MPPT
26 A
AC Grid Connection
3-phase, 400 V / 480 V
Protection Class
IP66
Dimensions (W×H×D)
1035 mm × 700 mm × 365 mm
Communication Interfaces
RS485, Ethernet, optional WLAN
Operating Temperature Range
-25 °C to +60 °C
Smart Functions
AI AFCI, I-V Diagnosis, PID Recovery
