Description

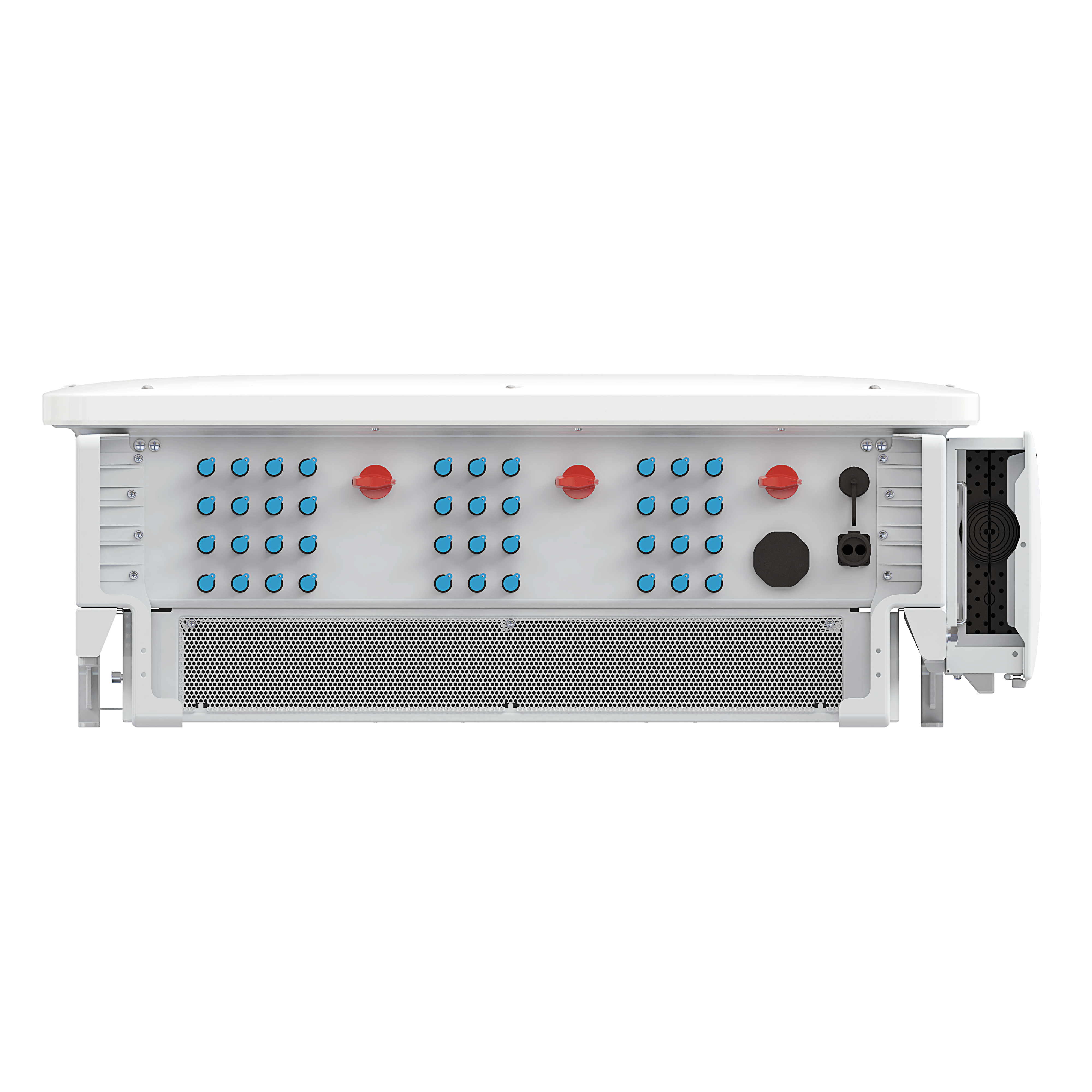

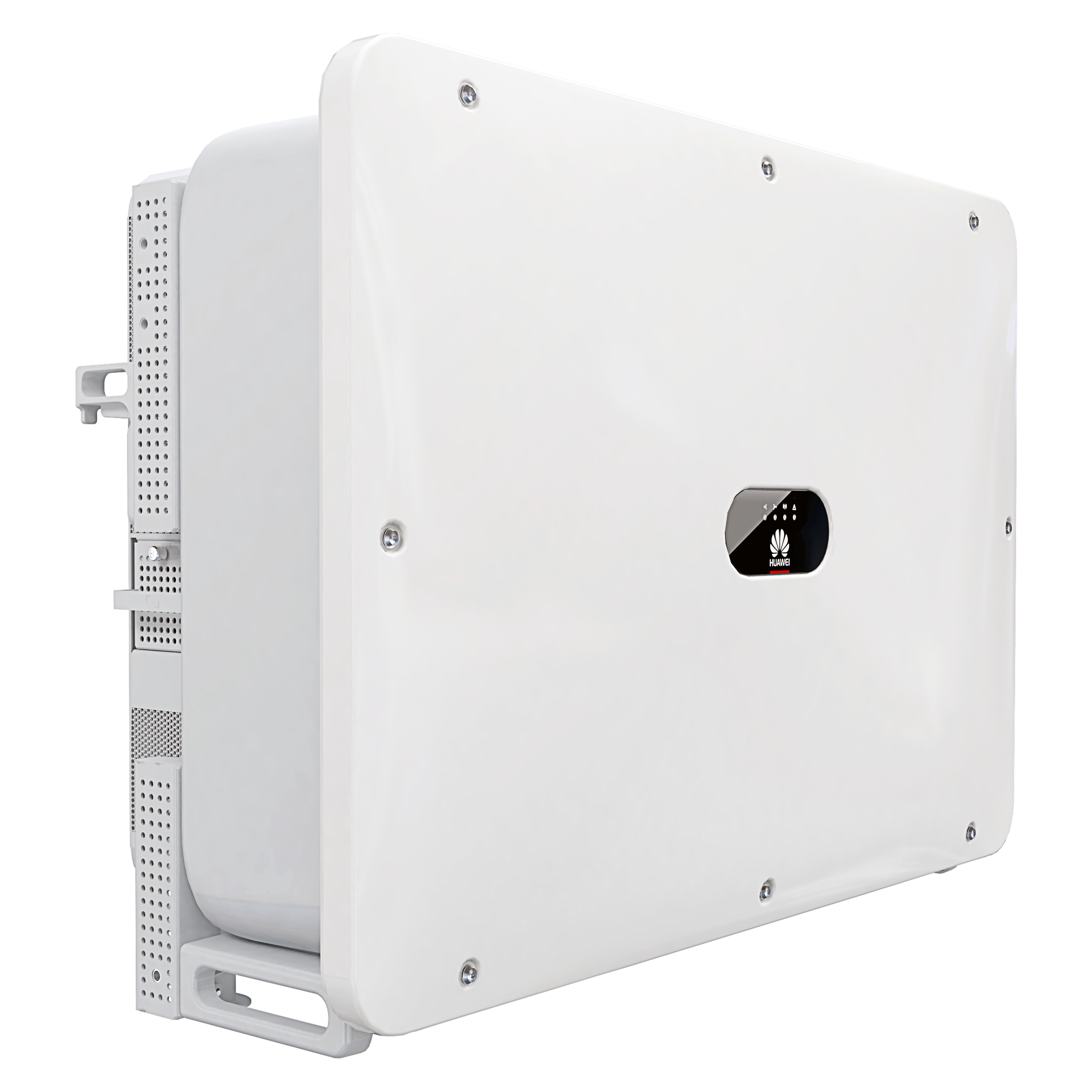

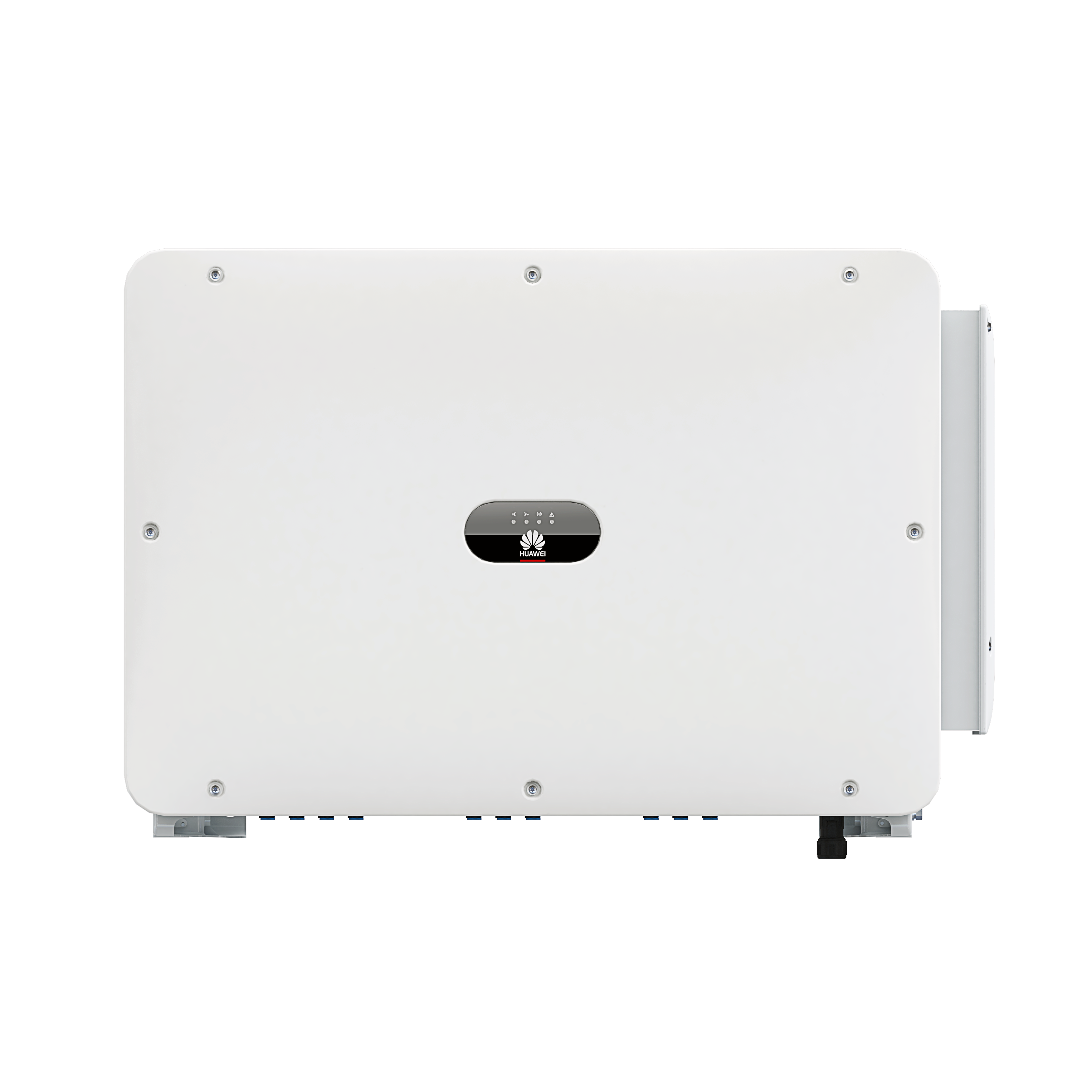

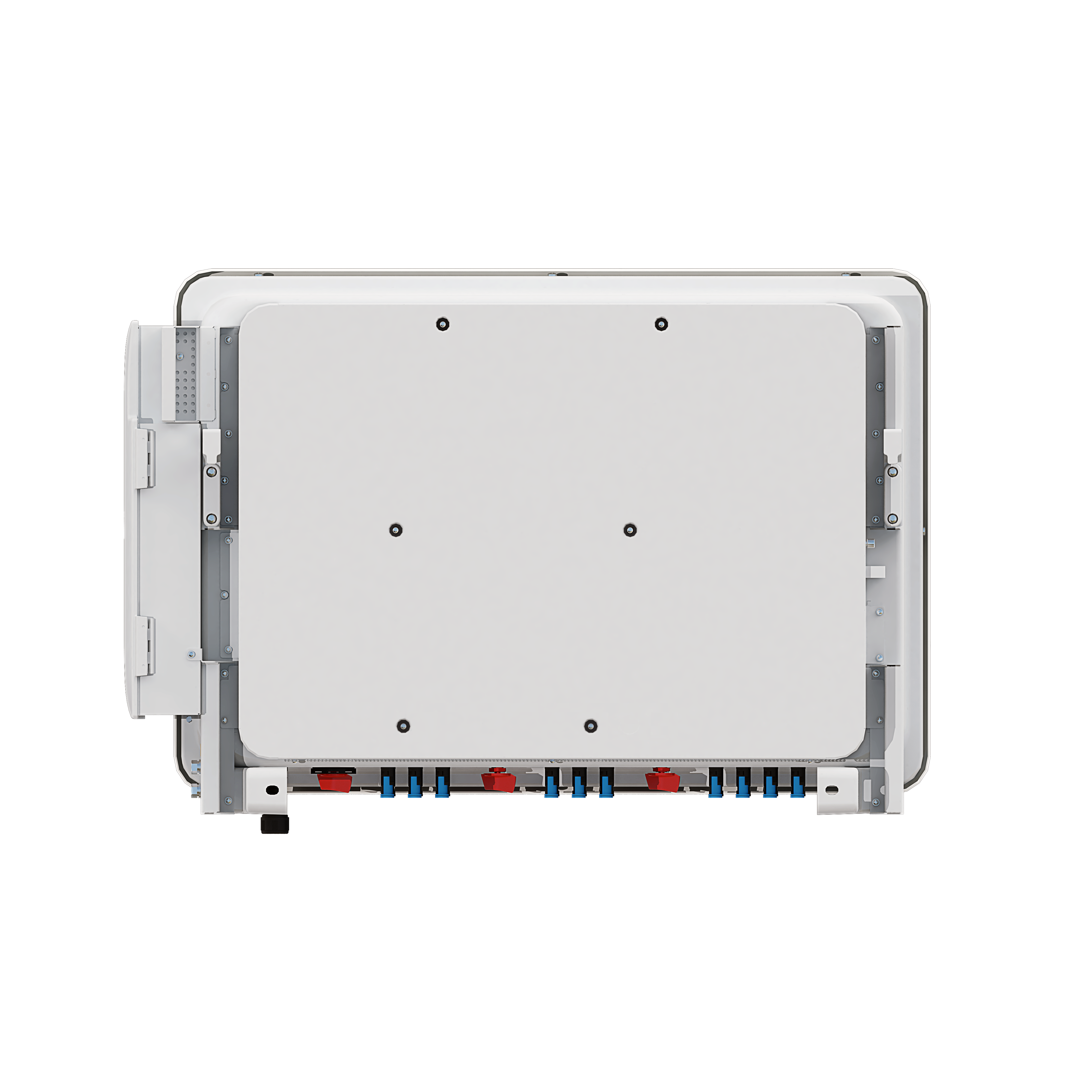

xThe Huawei SUN2000‑100KTL‑M2 smart PV inverter is engineered for large commercial and utility-scale solar projects. It features 10 independent MPPTs, advanced AI I‑V curve diagnostics, built-in AFCI and SPD protection, and supports smart string-level disconnection. With IP66 housing and integration into the FusionSolar platform, it delivers high performance, safety, and seamless monitoring.
Specifications
xMax Efficiency
98.8% (at 480 V)
European Efficiency
98.6% (at 480 V)
Number of MPPTs
10 independent trackers
MPPT Voltage Range
200 V – 1,000 V DC
Max DC Input Voltage
1,100 V DC
Max Input Current / MPPT
30 A
Nominal AC Output Power
100 kW
Max AC Apparent Power
110 kVA
Rated Output Current
144 A @ 400 V / 120 A @ 480 V
Frequency
50/60 Hz
Protection Class
IP66
Dimensions (W×H×D)
1,035 × 700 × 365 mm
Weight
93 kg
Operating Temperature
–25 °C to +60 °C
