Description

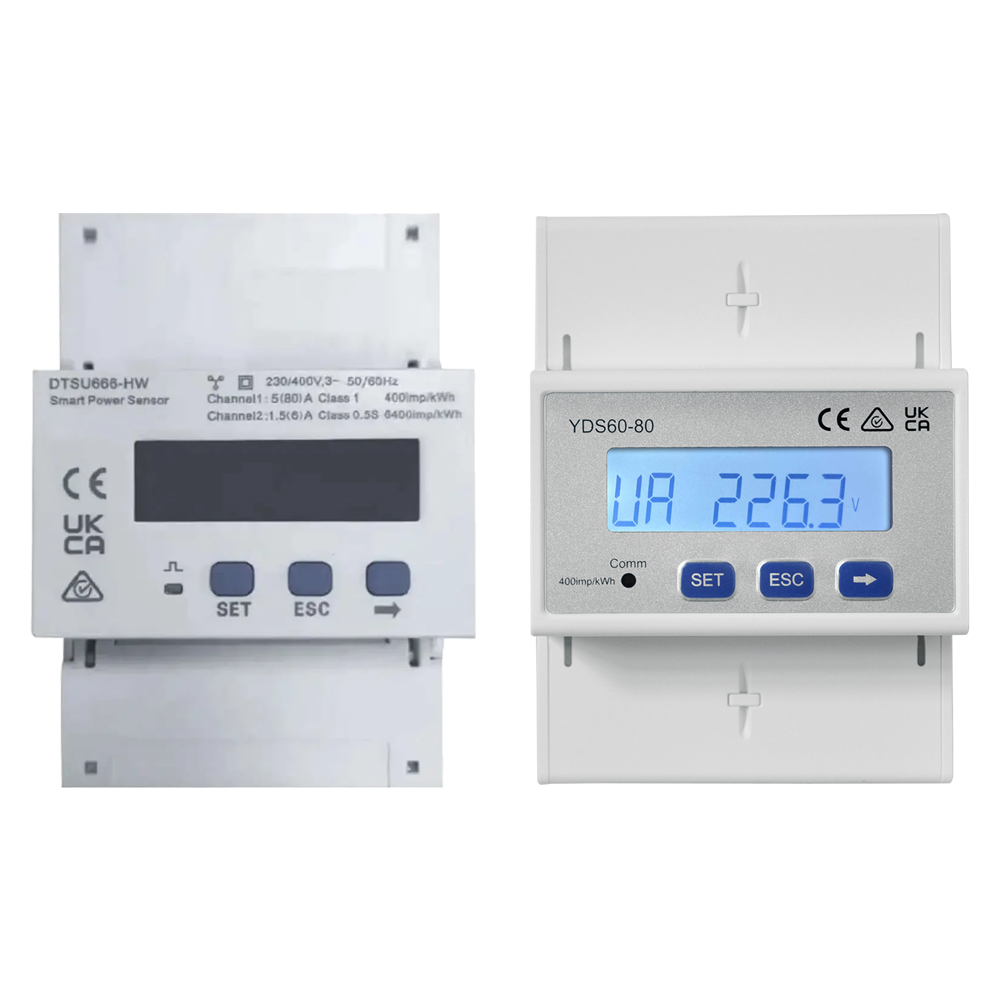

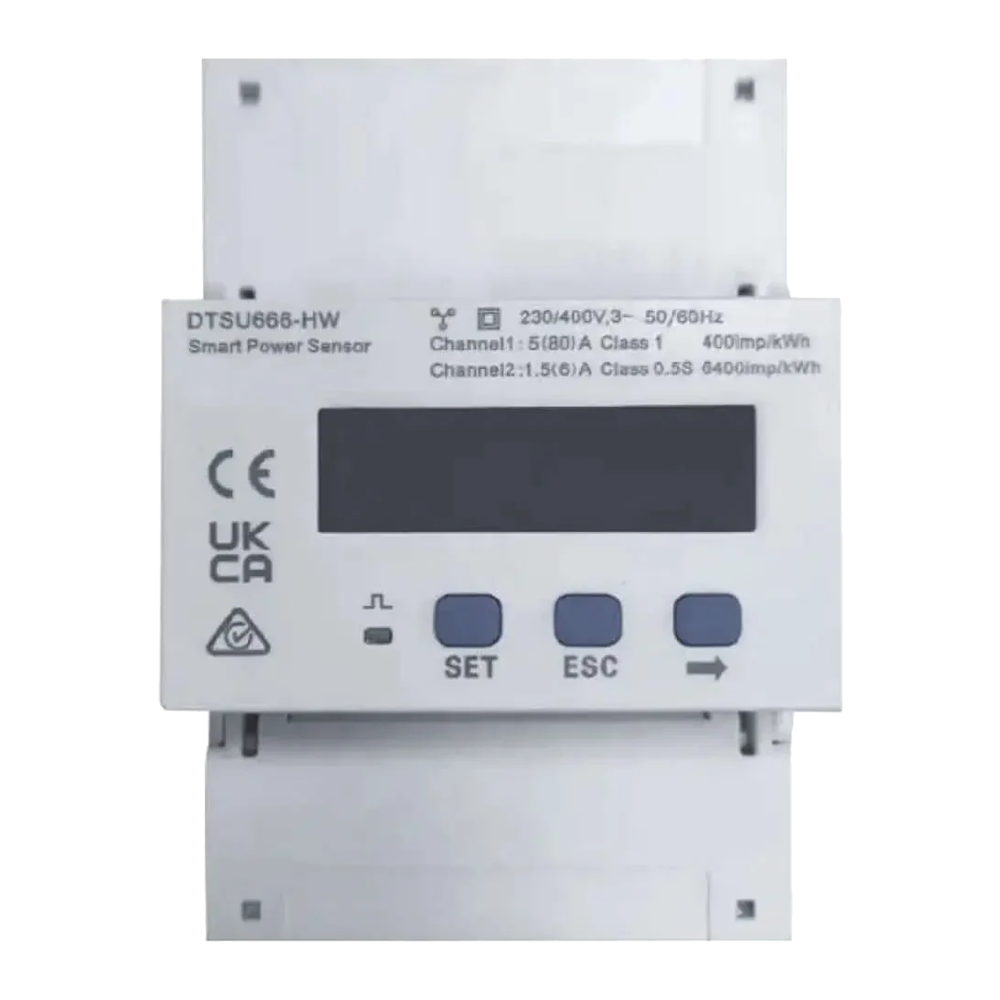

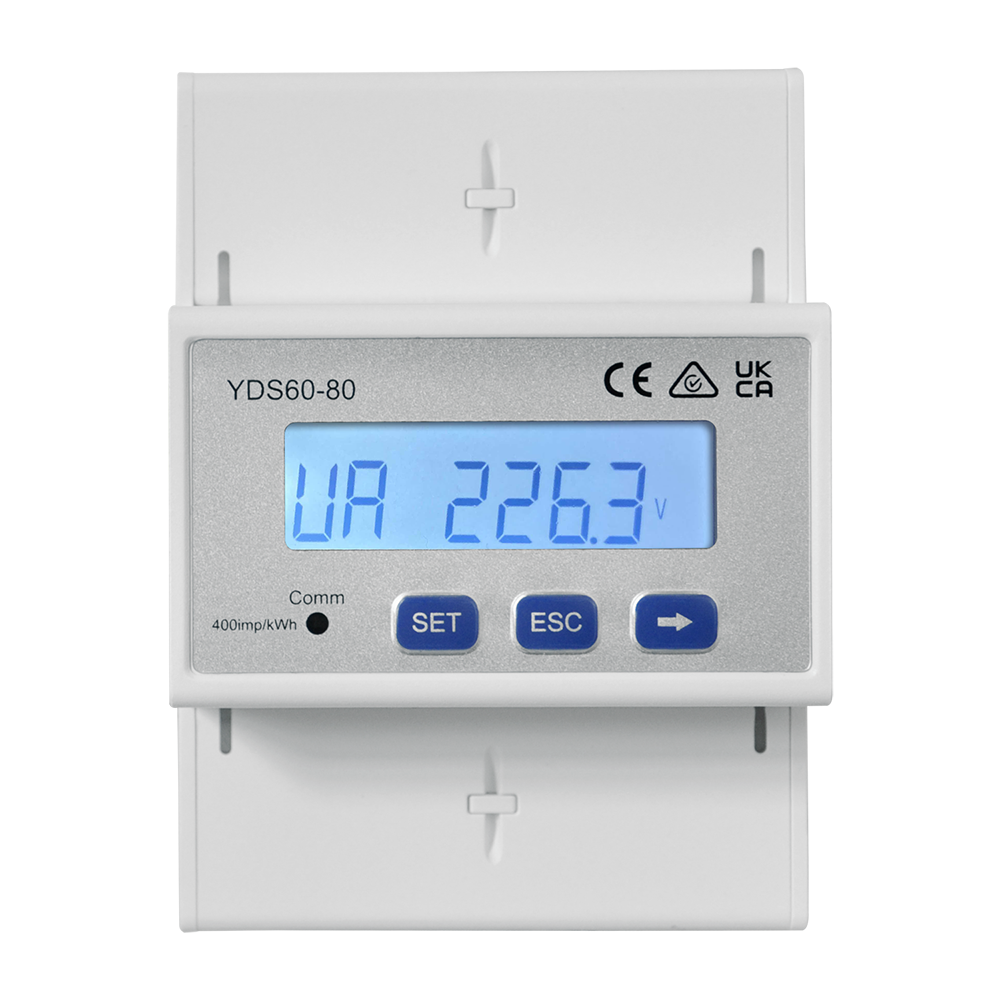

xThe Huawei Intelligent Power Collector is a precision metering and monitoring device designed for integration into commercial and industrial PV systems. Engineered to measure and analyse three-phase power flow, this compact collector includes built-in 80A current transformers, reducing installation complexity and cost. With RS485 Modbus communication, it enables seamless data acquisition and remote monitoring when paired with Huawei inverters or SmartLogger systems. Its robust design ensures stable operation in diverse environments, supporting accurate energy management and compliance with grid regulations.
Key Features
- Accurate Class 1 measurement for voltage, current, power, and energy
- Wide current range up to 80 A (expandable with external CTs)
- Low power consumption ≤ 1.5 W
- Modbus-RTU communication via RS485 interface
Specifications
xDimension (H × W × D)
100 × 72 × 80 mm
Mounting Type
DIN35 Rail
Input Voltage Range (Line)
90 ~ 500 Vac
Current Measurement Range
0 ~ 80 A (expandable with external CTs)
Voltage/Current Accuracy
±0.5%
Power/Energy Accuracy
±1%
Frequency Accuracy
±0.01 Hz
Communication Protocol
Modbus-RTU
Baud Rate
4800 / 9600 / 19200 / 115200 (Default: 9600 bps)
Operating Temperature
-25 °C to 60 °C
