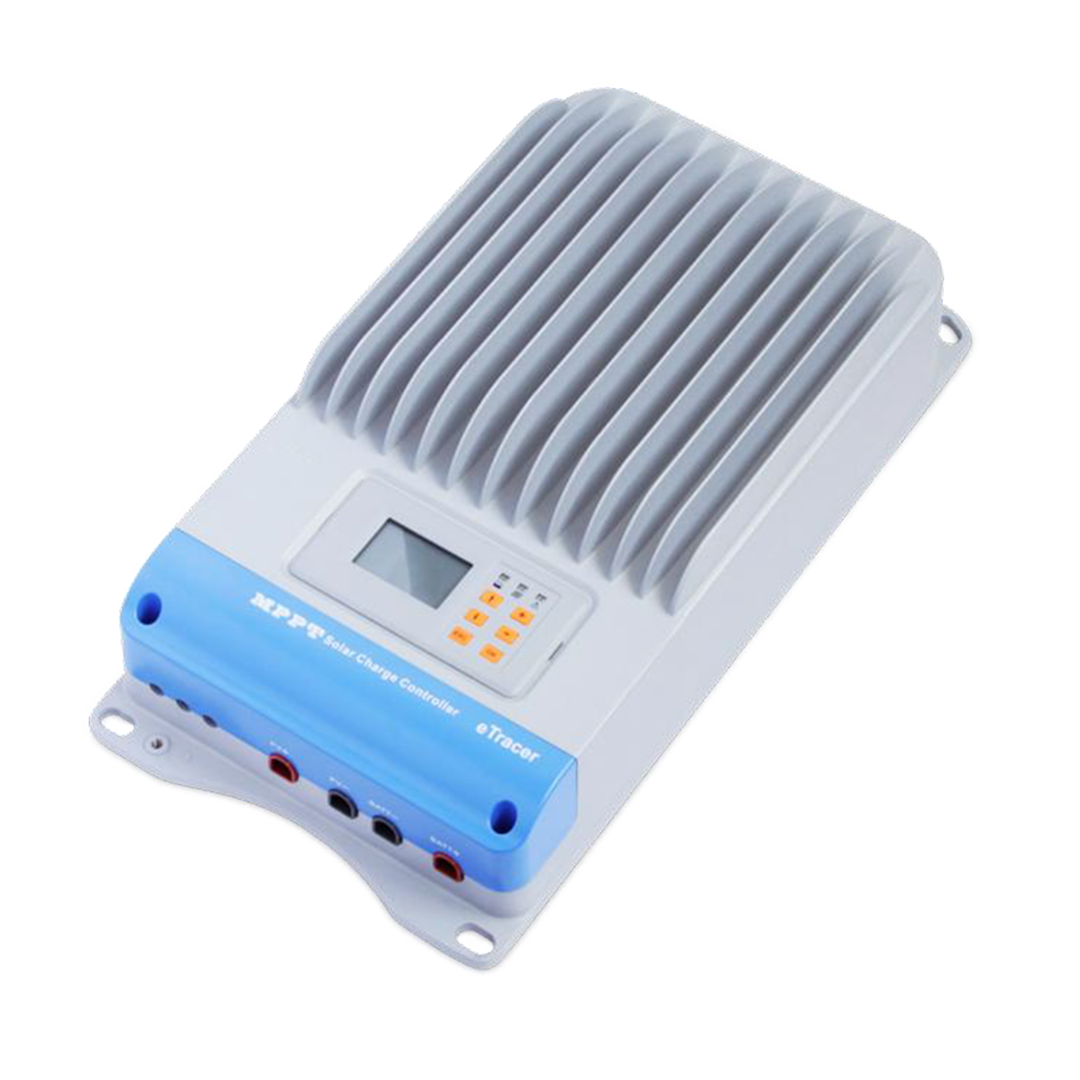

EPSolar eTracer 6415BND Charge controller, MPPT, 150V/60A

MPPT solar charge controller, eTracer-BND series is based on multiphase synchronous rectification technology (MSRT), with dual-core processor architecture and advanced MPPT control algorithm. This series have the features of high response speed, high reliability and high industrial standards. With MPPT control algorithm, in any situation, products of this series can swiftly and accurately track out the best maximum power point (MPP) of PV array, to obtain the maximum solar energy in time, MSRT can guarantee very high conversion efficiency in any charge power, which sharply improves the energy efficiency of the solar system. With the Modbus communication protocol interface, it is convenient for customers to expand applications and monitor in various fields like telecommunication base station, household system, wilderness monitoring system, etc. All-round electronic fault self-test function and enhanced electronic protection function could avoid damages on system components resulting from installation errors or system failures.



• Peak conversion efficiency of 98% and full load efficiency of 97%
• Battery type selection: Sealed, Gel, Flooded and User(programmable)
• Battery temperature compensation
• Built-in running data and event logging
• Real-time data monitoring and parameters setting with MT50, APP or PC software
• PV over current protection
• PV short circuit  protection
• PV reverse polarity protection
• Battery over voltage protection
• Battery reverse polarity protection
• Controller overheating protection
