Description

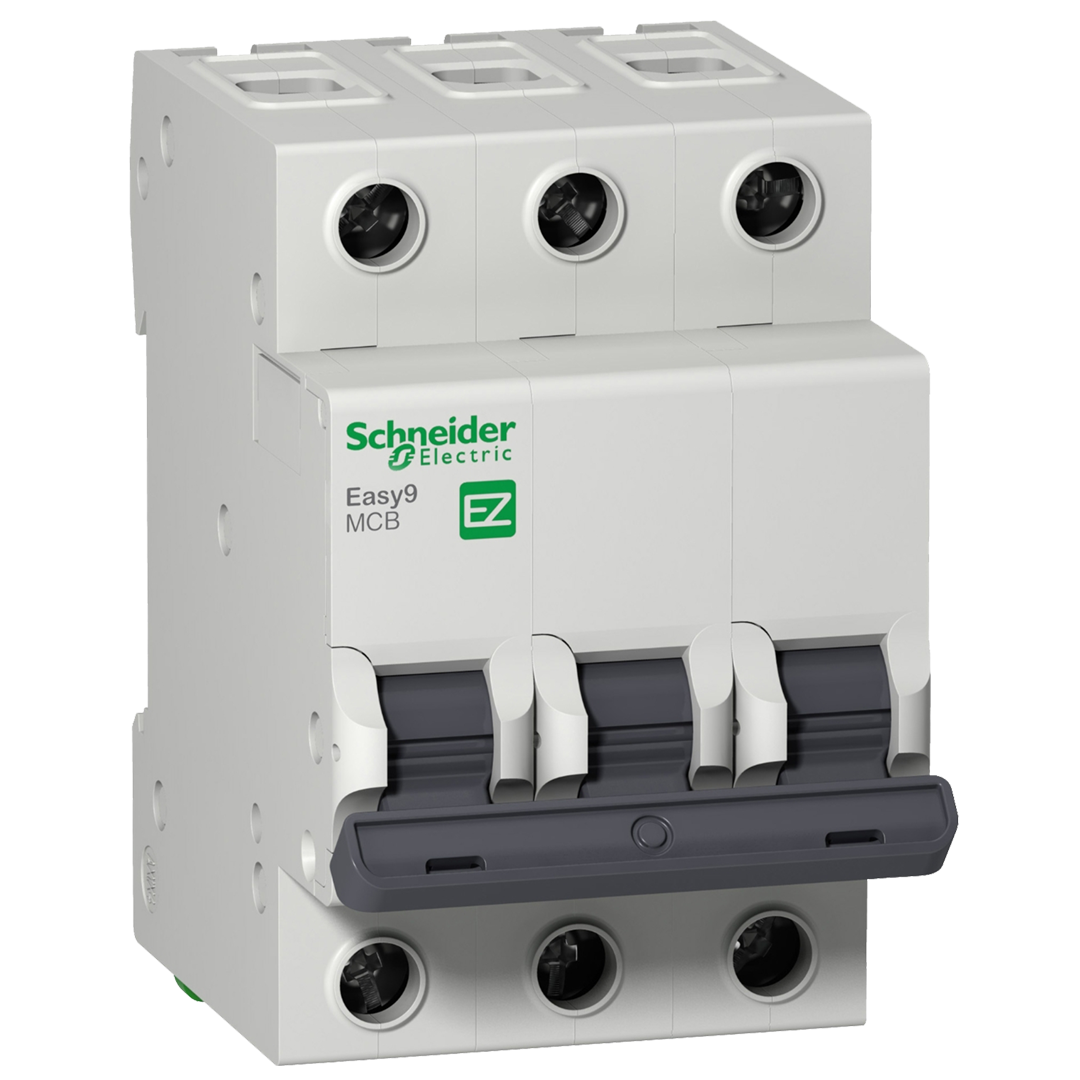

xThe Schneider Mini Circuit Breaker with a C-curve trip characteristic is designed to protect electrical circuits against overloads and short circuits. Featuring 3 poles and a 50 A rated current, this device is ideal for commercial and industrial applications requiring reliable and precise circuit protection.
Key Features
- C-curve characteristic for handling moderate inrush currents
- 3-pole design for multi-phase circuit protection
- Rated current of 50 A suitable for medium power loads
- Easy DIN rail mounting for efficient installation
Specifications
xProduct Name
Schneider Mini Circuit Breaker, C-curve, 3-pole, 50 A
Type
C-curve
Poles
3-pole
Rated Current
50 A
Rated Voltage
230/400 V AC
Breaking Capacity
10 kA (IEC 60898)
Mounting
DIN rail
Standards Compliance
IEC/EN 60898-1
Operating Temperature
–25 °C to +40 °C
Connection Type
Screw terminals
