Description

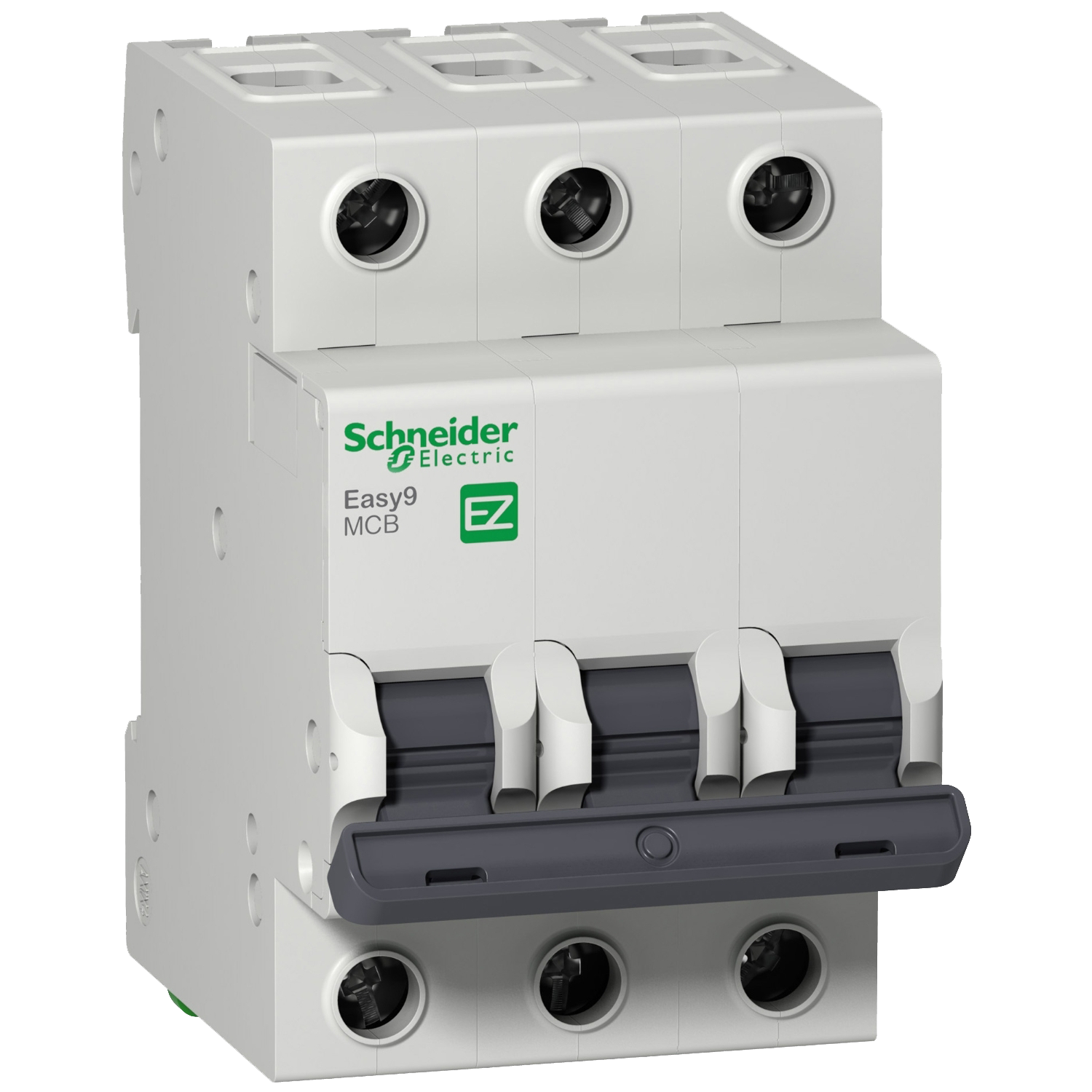

xThe Schneider Mini Circuit Breaker with a C-curve characteristic is designed for efficient protection of electrical circuits against overload and short circuits. Featuring a robust 3-pole design and a 25 A rating, it is ideal for residential and commercial low-voltage installations.
Key Features
- C-curve tripping characteristic for moderate inrush currents
- 3-pole configuration for three-phase circuit protection
- Compact and modular design for easy DIN rail mounting
- Compliant with IEC/EN 60898-1 standards
Specifications
xProduct Name
Schneider Mini Circuit Breaker, C-curve, 3-pole, 25 A
Type
C-curve
Poles
3-pole
Rated Current
25 A
Rated Voltage
230/400 V AC
Breaking Capacity
10 kA (IEC 60898)
Mounting
DIN rail
Standards Compliance
IEC/EN 60898-1
Operating Temperature
–25 °C to +40 °C
Connection Type
Screw terminals
