Description

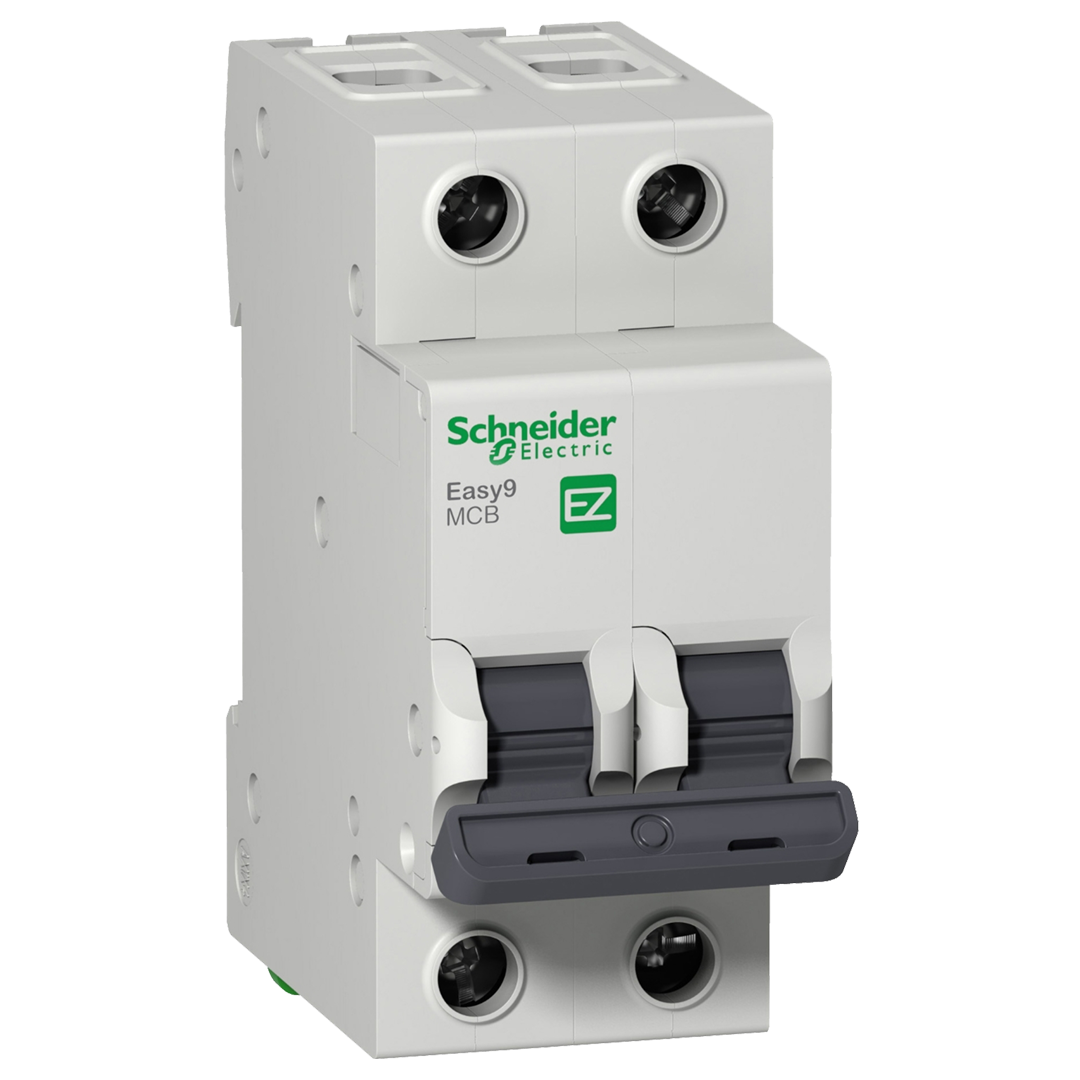

xThe Schneider Mini Circuit Breaker, C-curve, 2-pole, 63A is a robust and reliable protection device designed for low-voltage electrical distribution systems. Ideal for both commercial and industrial applications, it provides dependable overload and short-circuit protection for circuits with moderate inrush currents. Its C-curve characteristic ensures optimal performance in lighting and general power distribution.
Key Features
- C-curve tripping for effective protection of general-purpose loads
- Dual-pole isolation for enhanced circuit safety
- High breaking capacity for demanding applications
- Compact DIN rail mounting for ease of installation
Specifications
xRated Operational Voltage ([Ue])
400 V AC 50/60 Hz
Rated Current ([In])
63 A
Rated Impulse Withstand Voltage ([Uimp])
4 kV
Rated Service Breaking Capacity ([Ics])
3 kA, 100 % x Icu at 400 V AC 50/60 Hz
Breaking Capacity
3 kA Icu at 400 V AC 50/60 Hz
Trip Unit Technology
Thermal-magnetic
Magnetic Tripping Limit
8.5 x In +/- 20 %
Mounting Mode
Clip-on
Dimensions (HxWxD)
81mm x 36mm x 66.5mm
Ambient Air Temperature for Operation
-5…60 °C
