Description

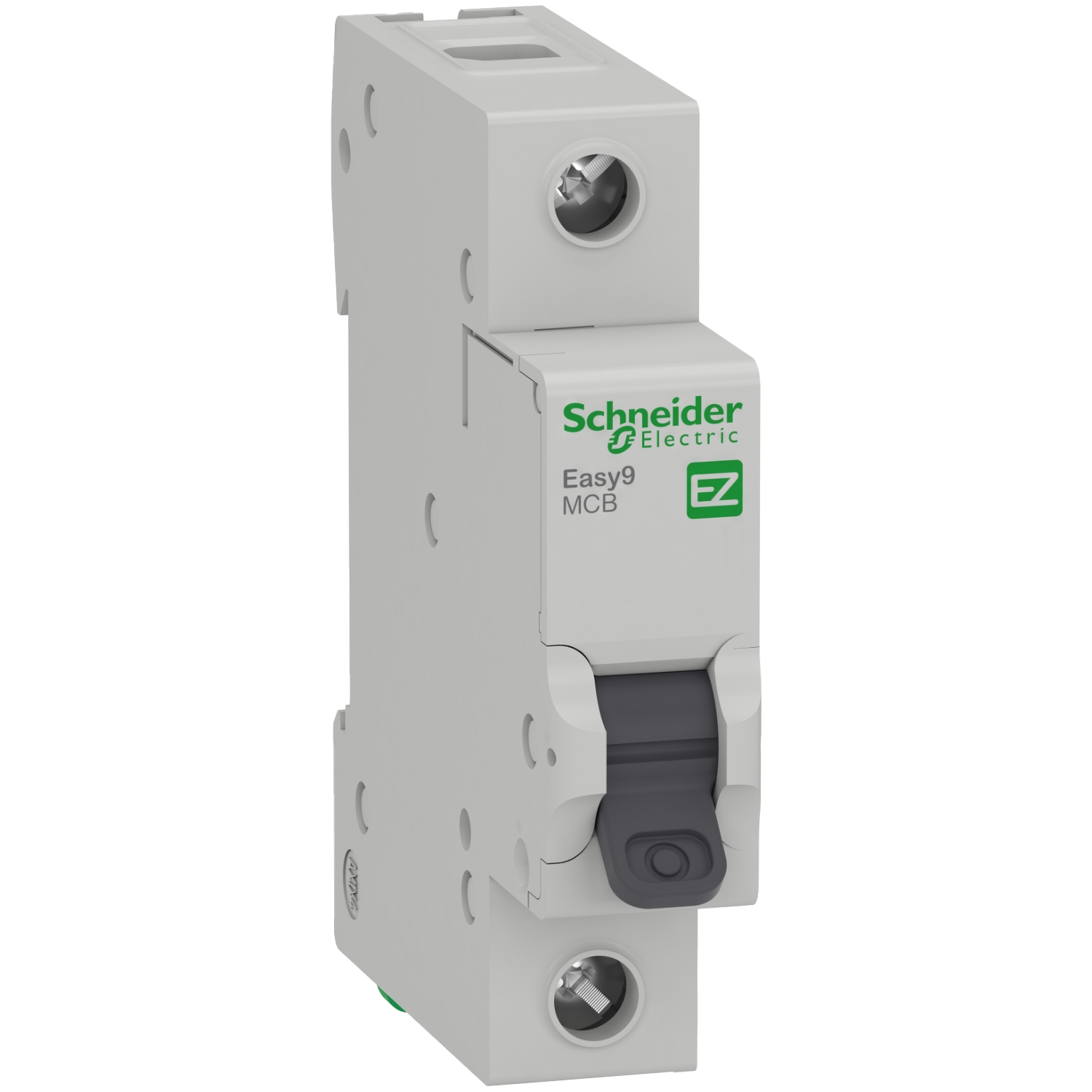

xThe Schneider Mini Circuit Breaker with a C-curve trip characteristic is designed for reliable protection of electrical installations against overloads and short circuits. Featuring a 1-pole configuration and a rated current of 10A, this breaker is ideal for residential, commercial, and light industrial applications. It offers robust performance, easy DIN rail mounting, and compliance with international standards, ensuring safety and efficiency in low-voltage distribution networks.
Key Features
- C-curve characteristic suitable for general-purpose applications
- Compact 1-pole design for space-saving installation
- Rated breaking capacity of 10 kA for effective fault interruption
- Quick and secure DIN rail mounting with screw terminal connections
Specifications
xSuitability for Isolation
Yes, conforming to SANS 60947-2
Poles
1P
Network Type
AC
Color
Grey (RAL 7035)
Rated Insulation Voltage ([Ui])
500 V AC 50/60 Hz, conforming to SANS 60947-2
Rated Operational Voltage ([Ue])
230 V AC 50/60 Hz
Rated Impulse Withstand Voltage ([Uimp])
4 kV, conforming to SANS 60947-2
Rated Current ([In])
10 A
Rated Service Breaking Capacity ([Ics])
3 kA 100 % x Icu at 230 V AC 50/60
Breaking Capacity
3 kA Icu at 230 V AC 50/60 Hz
