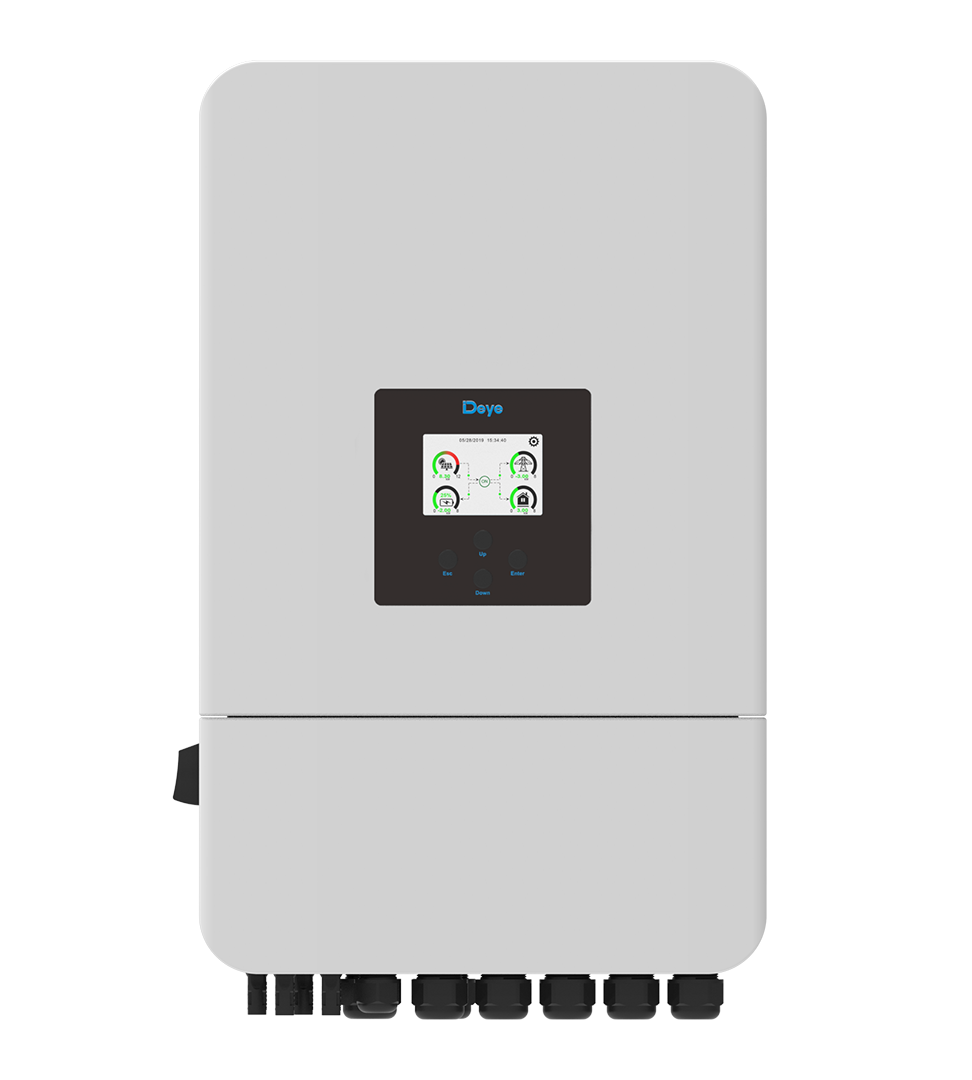

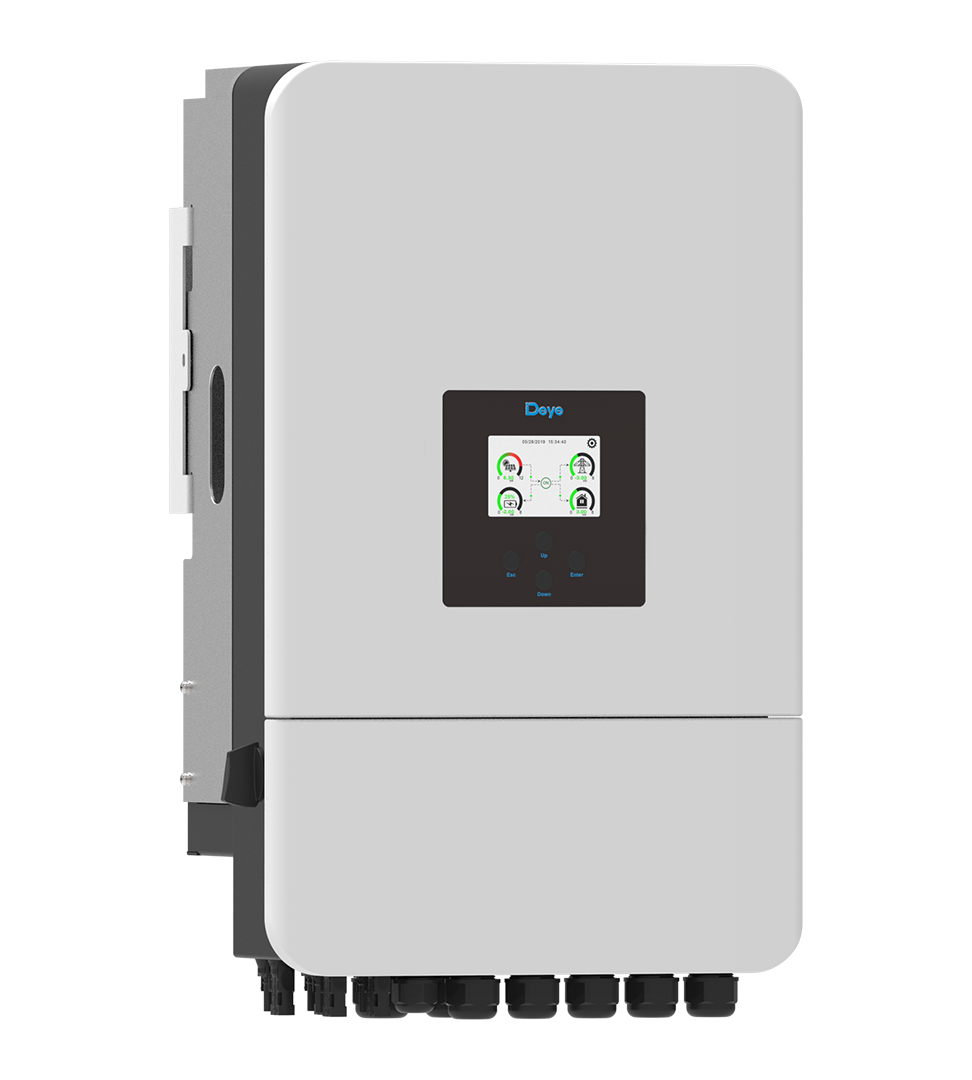

Deye 8kW Hybrid Single Phase Inverter, 48V, 2 MPPT, CT & WiFi Included - Rubicon Installer Portal

Supplied complete: this unit ships with the current transformer (CT) coil and the WiFi monitoring dongle included — no separate accessory purchase needed to commission it. The Deye SUN-8K-SG05LP1-EU-SM2 is an 8kW single-phase hybrid inverter for 48V low-voltage battery systems, built for residential and light-commercial backup and self-consumption. It handles...

Vendor: Deye

SKU: SUN-8K-SG05LP1-EU-SM2

Availability: In stock

Product type: Solar PV Inverters

Please hurry! Only 4 left in stock

Trade pricing for registered installers. Log in or register to see your price and order online.

Description
Specifications
Documents
Alternatives

Supplied complete: this unit ships with the current transformer (CT) coil and the WiFi monitoring dongle included — no separate accessory purchase needed to commission it.

The Deye SUN-8K-SG05LP1-EU-SM2 is an 8kW single-phase hybrid inverter for 48V low-voltage battery systems, built for residential and light-commercial backup and self-consumption.

It handles up to 12.8kW of PV across two independent MPP trackers, and pushes 190A of charge and discharge into a 48V battery bank — enough headroom to run a well-specified home off stored energy rather than trickling it. Grid, PV, battery and generator are all managed by the one unit, with six configurable time periods for battery charging and discharging so you can shape the system around a tariff or a load profile.

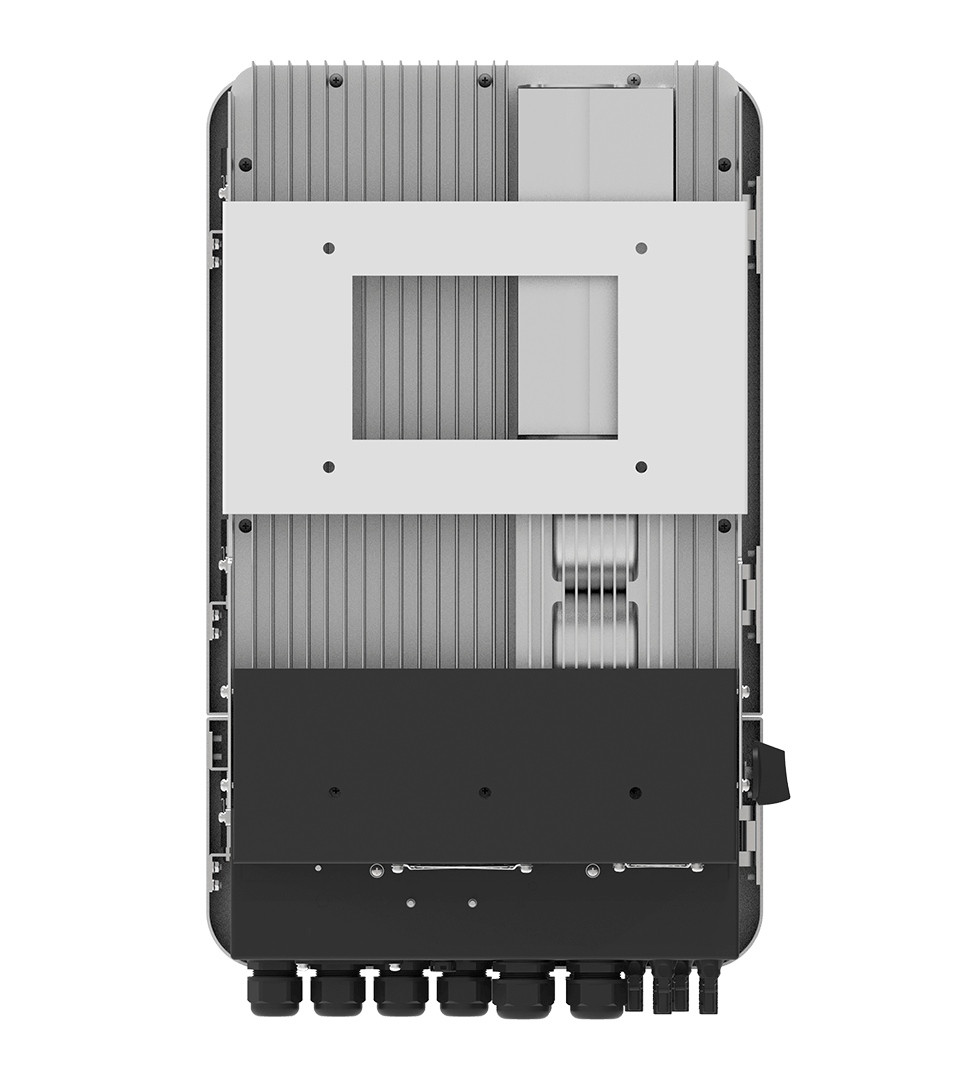

It is rated IP65 and cooled by intelligent air cooling, so it can be wall-mounted indoors or in a sheltered outdoor position without an enclosure.

Why installers pick this unit

Two MPP trackers, two strings each (2/2+2) — more array design freedom than the single-string SG05LP1-EU, and 26A per tracker for modern high-current panels
Parallels up to 16 units on-grid and off-grid, with multiple battery banks in parallel — the system grows without being replaced
AC coupling to retrofit an existing PV array without re-stringing it
Generator support — will store energy from a diesel genset, which matters on sites with unreliable supply
190A charge and discharge, self-adapting to the battery BMS
97.6% peak efficiency (96.5% Euro), colour touch LCD, and RS485/RS232/CAN comms

Good to know before you quote it

This is the SM2 revision. It is not interchangeable with the plain SG05LP1-EU on array design — the SM2 carries two strings per tracker and 26A per tracker, where the older unit carries one string and 13A.
Low-voltage (40–60V) batteries only. It will not drive a high-voltage stack.
Warranty is 5 or 10 years depending on the final installation site — confirm against Deye's warranty policy for the address.

Rated AC Output Power

8 000 W

Max AC Apparent Power

8 800 VA

Rated AC Current

36.4 / 34.8 A

Max AC Current

40 / 38.3 A

Peak Power (off-grid)

2x rated for 10 s

AC Pass-through (max)

50 A

Grid Voltage / Range

220-230 V (0.85-1.1 Un)

Grid Frequency

50 Hz (45-55) / 60 Hz (55-65)

Max PV Input Power

12 800 W

Max PV Access Power

16 000 W

MPP Trackers / Strings

2 / 2+2

Max PV Input Voltage

500 V

MPPT Voltage Range

150-425 V

Start-up Voltage

125 V

Max PV Operating Current

26 + 26 A

Max PV Short-Circuit Current

34 + 34 A

Battery Type

Lithium-ion or lead-acid

Battery Voltage Range

40-60 V

Max Charge Current

190 A

Max Discharge Current

190 A

Battery Charging Strategy

Self-adaption to BMS

Battery Inputs

Max Efficiency

97.6%

Euro Efficiency

96.5%

MPPT Efficiency

> 99%

THD

< 3% of nominal power

Surge Protection

Type II (DC), Type III (AC)

Inverter Topology

Non-isolated

Communication

RS485 / RS232 / CAN

Monitoring

WiFi / Bluetooth / LAN / 4G (optional)

Ingress Protection

IP65

Cooling

Intelligent air cooling

Operating Temperature

-40 C to +60 C (derating above +45 C)

Noise

< 45 dB

Dimensions (W x H x D)

366 x 589.5 x 237 mm

Weight

26.8 kg

Parallel Capability

Up to 16 units, on- and off-grid

Warranty

5 / 10 years (site dependent)
