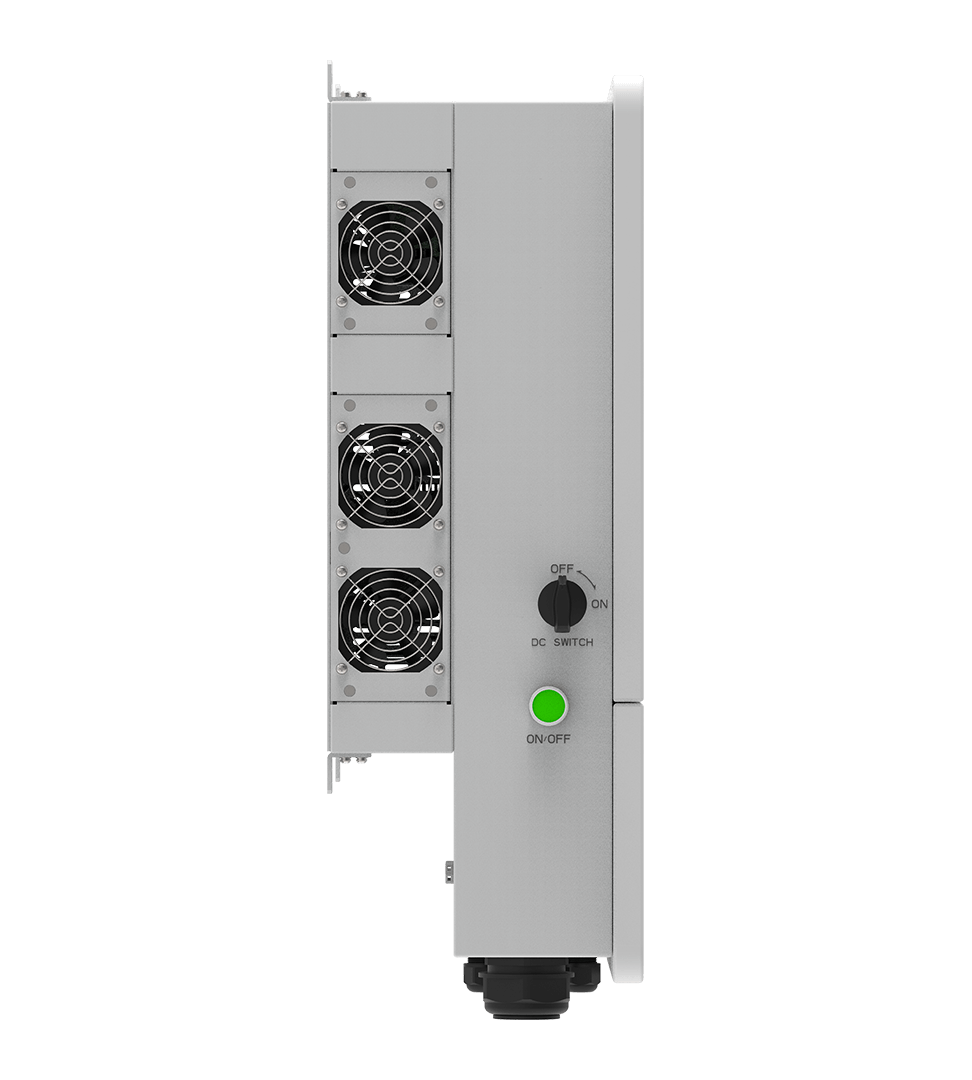

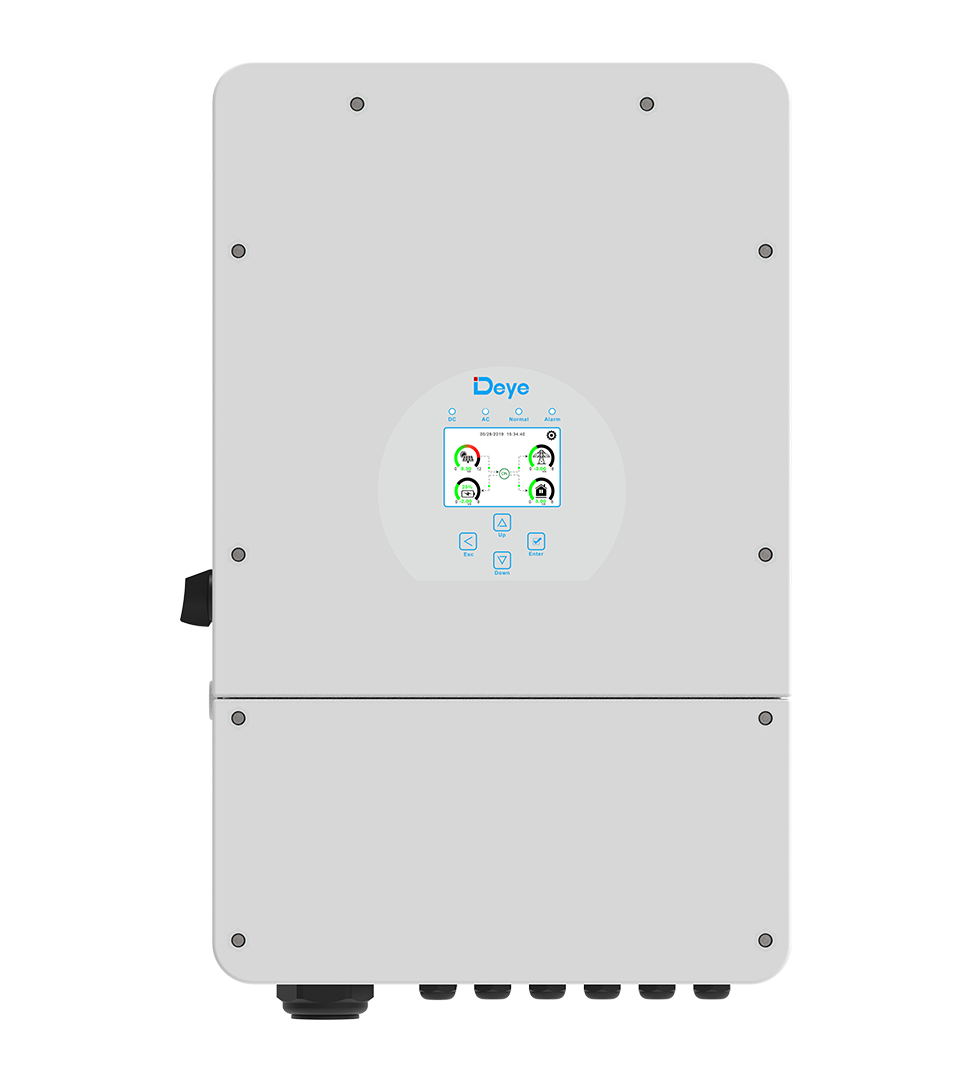

Deye 10kW LV Single Phase Hybrid inverter

The Deye SUN-10K-SG02LP1-EU-AM3-P is a 10kW single-phase hybrid inverter for 48V low-voltage battery systems, sized for larger homes and light-commercial backup.

It takes up to 16kW of PV across three independent MPP trackers with two strings each, and charges and discharges a 48V battery bank at up to 220A. Grid, PV, battery and generator are all managed by the one unit, with six programmable time periods for charging and discharging so the system can follow a tariff or a load profile. It is rated IP65.

Why installers pick this unit

• Three MPP trackers, two strings each (2+2+2), with 32A per tracker on this -P version — room for modern high-current panels across several roof faces
• 220A battery charge and discharge, self-adapting to the battery BMS
• Parallels up to 16 units on- and off-grid, with multiple battery banks
• AC coupling to retrofit an existing grid-tied PV array, plus generator support
• 97.6% peak efficiency (96.5% Euro), colour touch LCD, WiFi/RS485/CAN comms; NRS 097 is among the listed grid codes

Good to know before you quote it

• Low-voltage (40-60V) batteries only.
• Single-phase. For three-phase sites use the Deye 3-phase range.
• The -P version carries 32A per MPPT (60A short-circuit), where the standard AM3 carries 26A.
• Warranty is 5 or 10 years depending on the final installation site — confirm against Deye's warranty policy for the address.
