Description
xImportant Notice: This EV charger is supplied without a charging cable, and no EV charging cables are sold or supplied by us. Customers will need to source a compatible EV charging cable separately.

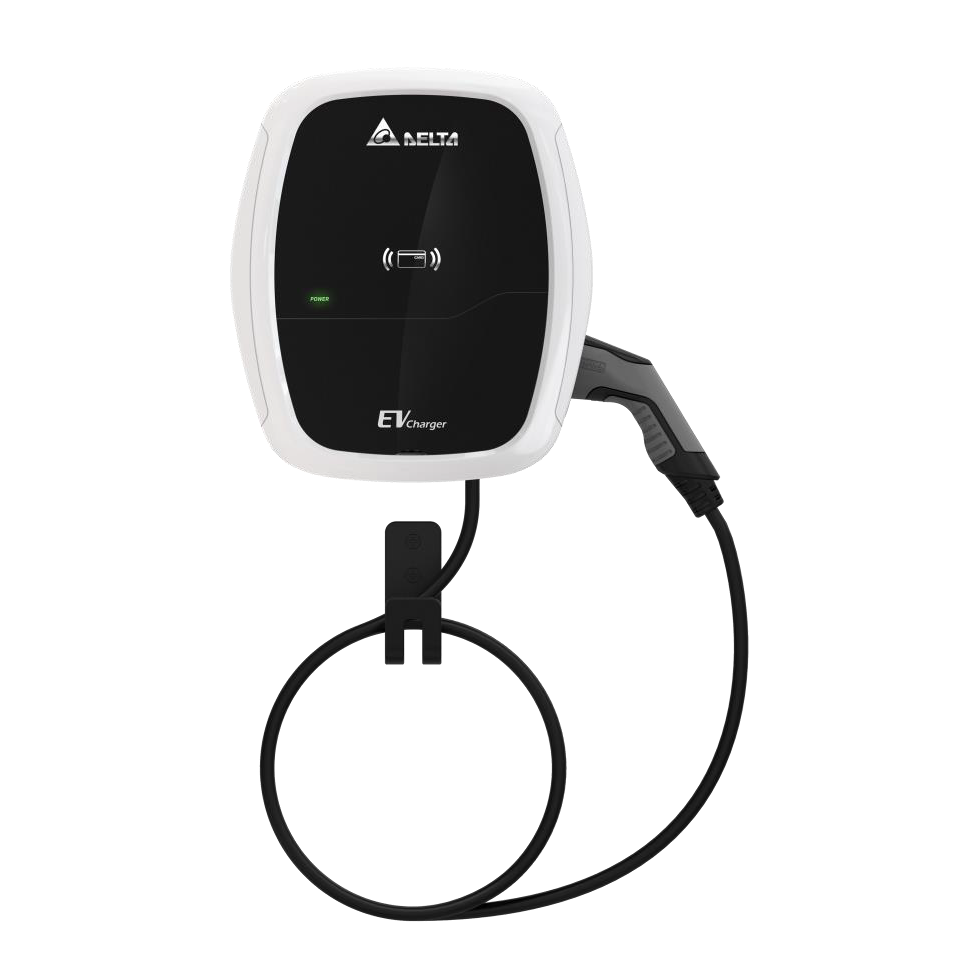

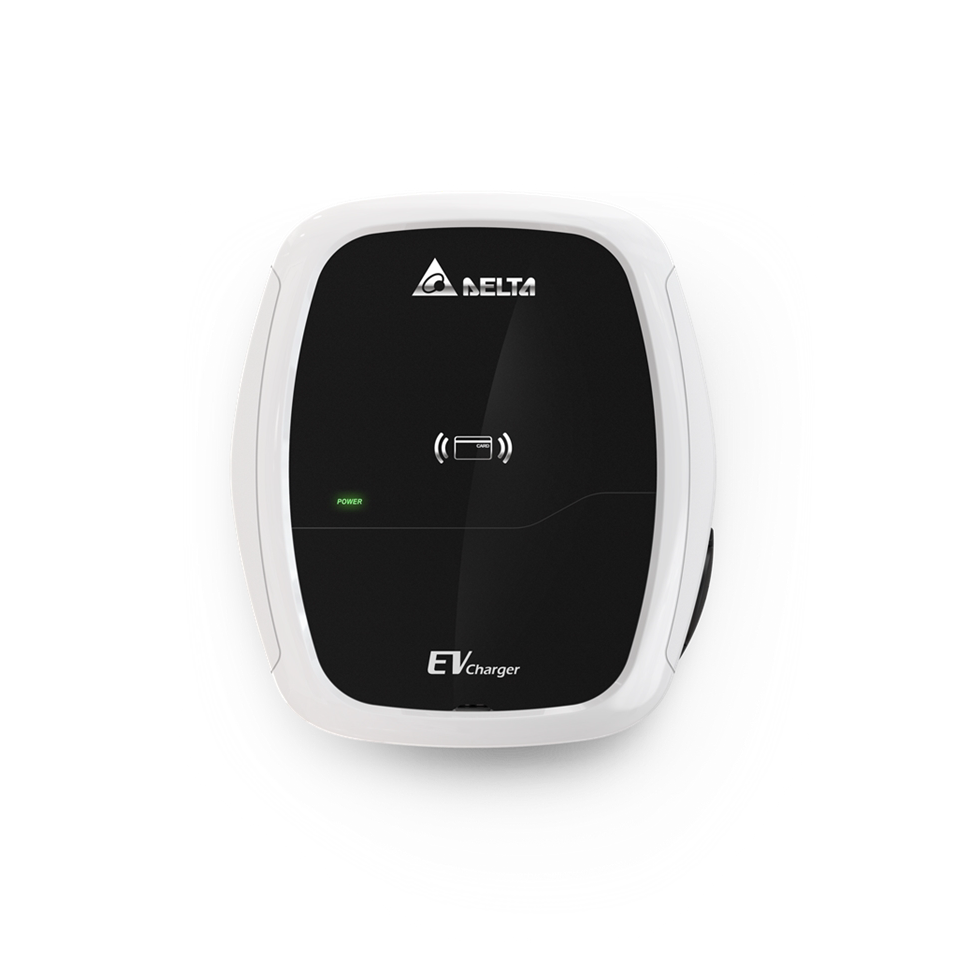

Delta AC Mini Plus EV Charger: Modern Efficiency and Robust Performance
Unlock a new era of electric vehicle charging with the Delta AC Mini Plus EV Charger. Designed for performance and simplicity, it delivers up to 7.36kW output for fast and reliable charging.
Key Features:
- Versatile Charging: Supports IEC 62196-2 Type 1 and Type 2 plugs plus Type 2 socket compatibility.
- User Experience: RFID authentication for secure and controlled access.
- Easy Installation: Streamlined wiring and setup process.
- Smart Connectivity: OCPP support for remote monitoring and management.
- Durability: IP55 rated with IK08 vandal-resistant casing.
Elevate your EV charging experience with reliable, future-ready performance.
The product conforms to the following compliance standards:
Specifications
xPower Input
Input Rating:
230 Vac, single phase, 16 A or 32 A maximum, 50 / 60 Hz
Number of Phase/ Wire:
L, N and PE (Ground), hardwired with terminal block
Standby Power:
5W
Internal RCD:
30 mA RCD and DC 6 mA RCD function
Power Output
Output Rating:
230 Vac, single phase, 16 A or 32 A maximum, 50 / 60 Hz 3.68 kW or 7.4 kW maximum
Charging Interface:
IEC 62196-2 Type 1 or Type 2 tethered plug, 4 m cable | IEC 62196-2 Type 2 Socket
Protection
Upstream
In accordance with local regulations
Electrical Protection:
Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault, Plug-out protection
Cold-Load Pickup:
Randomised delay before charge resume after power failure
Automatic recovery after nuisance trip:
The EVSE will automatically resume charging after a minor fault such as OVP, UVP, OTP or OCP. No user intervention required.
User Interface & Control
Status Indicators:
Power, Status, Charge, Fault
Buttons and Switch:
Key switch, On/Off switch, Reset button, Emergency stop button
Charger Configuration:
Charging Current Adjustment, Charging Duration Limitation
Communication
Network Interface:
Ethernet (standard), WLAN (option), 3G (option) for backend communication Ethernet (standard) for local access
Charging Protocol:
OCPP
Environmental
Operating Temperature:
-30°C to +50°C
Storage Temperature:
-40 ~ +80°C
Humidity:
>95% relative humidity, non-condensing
Altitude:
Up to 2,000m
