Description

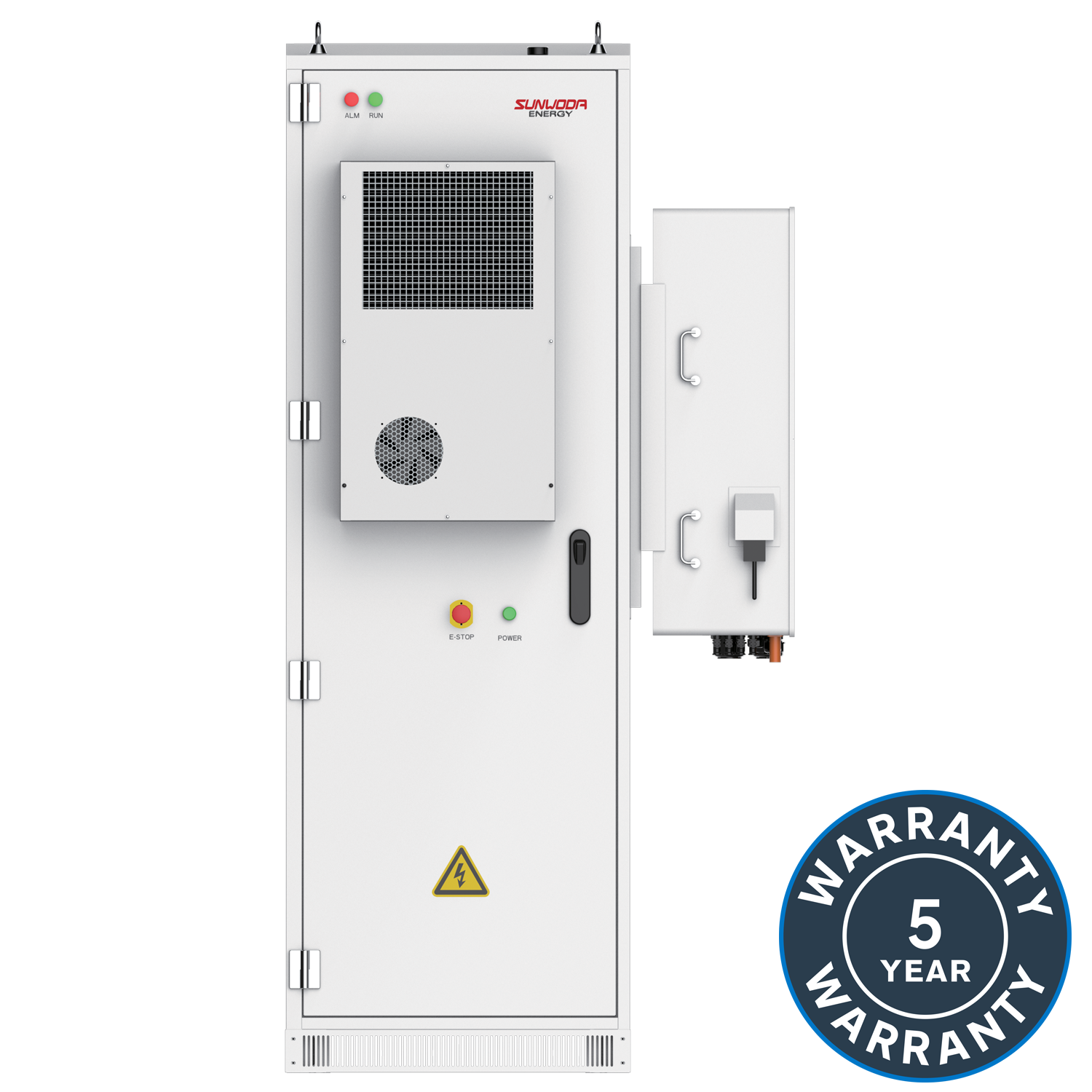

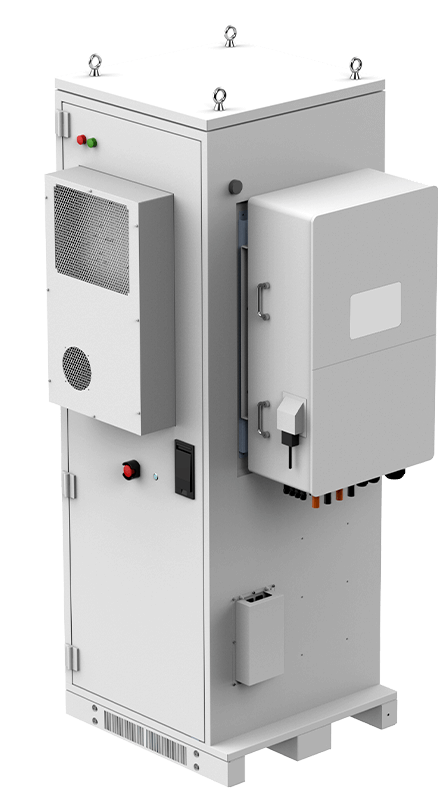

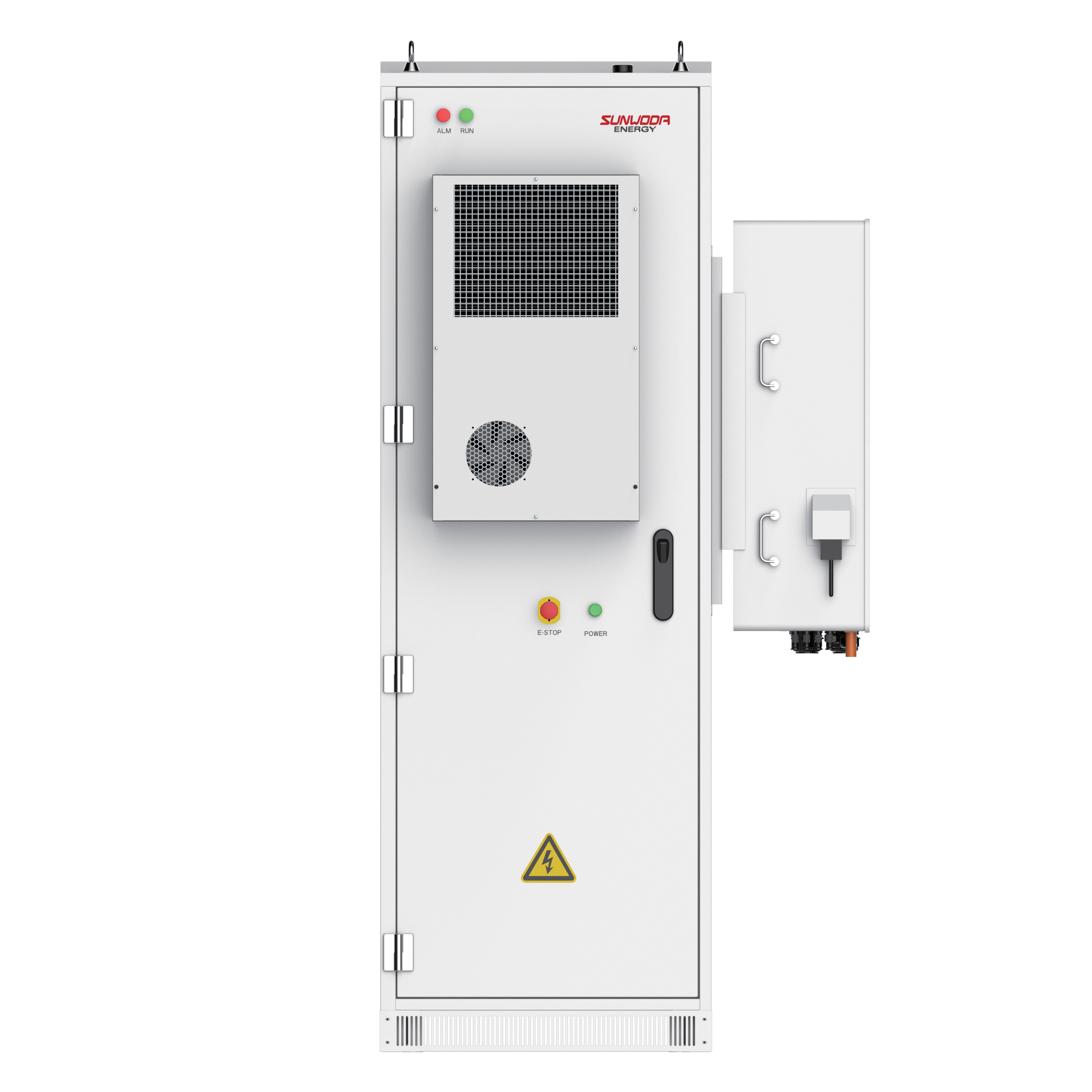

xSunwoda’s OASIS 60 is a modular, high‑performance battery energy storage system designed for commercial and industrial scale applications. With seamless scalability on both AC and DC sides, it supports self‑use, peak shaving, demand regulation, forced charge/discharge modes and is rapidly deployable thanks to its compact, plug‑and‑play design. Deployable indoors or outdoors, it’s ideal for peak-liability management, micro‑grid integration, renewable energy coupling, and backup power scenarios.
Key Features
- Modular scalability – parallel up to 3 cabinets for MW-scale systems
- Flexible operation – supports self-use, peak shifting, demand response, and forced charging
- Advanced thermal regulation – built-in air-conditioning for optimal performance
- Robust design – IP55 rated, IEC 62619 & CE certified with compact 715 × 750 mm footprint
Specifications
xRated energy capacity
60 kWh
Battery configuration
12 cells
Nominal voltage
614.4 V
Operating voltage range
537.6 – 691.2 V
Max charge / discharge current
100 A / 100 A
Dimensions (L × W × H)
715 × 750 × 2140 mm
Weight
880 kg
Ingress protection
IP55
Max installation altitude
2000 m
Certifications
IEC 62619, CE, UN 38.3
